Specifications
Brand Name :
Customization
Model Number :
20788 20679
Certification :
UL ,ISO13485 , ISO9001.2005 , ISO14001
Place of Origin :
China
MOQ :
Negotiable
Price :
Contact our sales
Payment Terms :
T/T, PayPal
Supply Ability :
15,000pcs/week
Delivery Time :
2-10 days for samples,3-4 weeks for massive
Packaging Details :
PE inner, carton outer
Contact pitch :
0.4 mm pitch
Product name :
20788-060T-01 Micro coaxial cable lvds cable
Item :
6PIN
Description

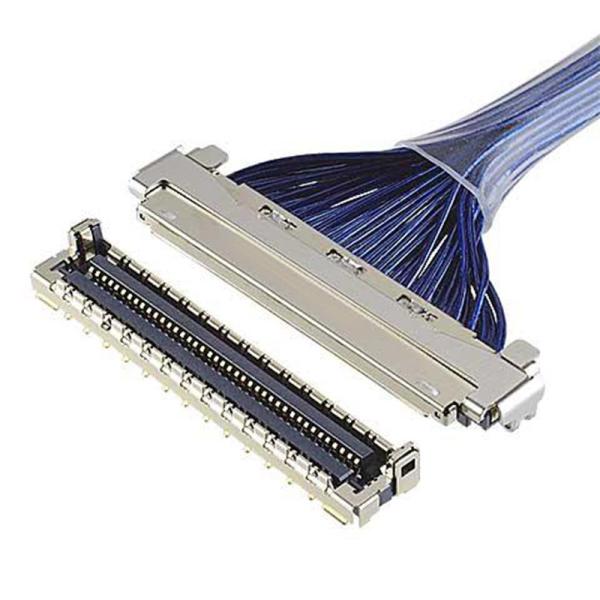

Custom 0.4 Mm Pitch  20788 20679 30pin 40pin 50pin 60pin Micro Coaxial Connector Emi Shield Lvds Cable

product advantages:
Suitable for small connector spaces
Slim plug design, suitable for through-hinge assemblies
EMI shielding and multi-point ground design
Applications:
1.Digital Video Camera
2.Digital Still Camera
3.Surveillance Camera
4.Car Navigation System
5.Ultrasound System
6.Endoscope
7.ETC
8.CT
Recommended models:
20679-020T-01 20679-030T-01 20679-040T-01 20679-050T-01 20680-020T-01 20680-030T-01 20680-040T-01 20680-050T-01 3204-0201 3204-0301 3204-0401 3204-0501 20681-020T-01 20681-030T-01 20681-040T-01 20681-050T-01 20682-020E-02 20682-030E-02 20682-040E-02 20682-050E-02
Recommended line number:
#42 #44 #46 AWG Micro coaxial cables
Current rating :
0.1A AC/DC [AWG #44] per contact/up to 50 contacts
0.24A AC/DC [AWG #42] per contact/up to 50 contacts
0.3A AC/DC [AWG #40] per contact/up to 50 contacts
0.5A AC/DC [AWG #38] per contact/up to 18 contacts
0.8A AC/DC [AWG #36] per contact/up to 6 contacts
1.0A AC/DC [AWG #34] per contact/up to 6 contacts
High Data Rate Standards:
Thunderbolt™ 3 (20 Gbps/lane)
USB® 3.1 Gen 2 (10 Gbps) / USB® 3.1 Gen 1 (5 Gbps)
eDP HBR 3 (8.1 Gbps) / eDP HBR 2 (5.4 Gbps) / eDP (2.7 Gbps)
HDMI® 2.0 (6 Gbps)
MiPi Gear 3 (5.8 Gbps)
V-By-One HS 1.4 (4 Gbps)
USB® 3.1 Gen 1 (5 Gbps)
V-By-One HS 1.4 (4 Gbps)
eDP (2.7 Gbps)

Custom 0.4 Mm Pitch  20788 20679 30pin 40pin 50pin 60pin Micro Coaxial Connector Emi Shield Lvds Cable

Q1. Is it a factory?
A: Yes,we have more than 16 years of design and manufacturring experience!
Q2. Is there any certification?
A: Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A: We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs. For ODM orders, moq

1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3 days for preparation and delive

ry, and shipment time depends on clients' choice, fastest 7 days and longest 1 month.
For big order, as we need to confirm all things include materiel preparation, production, this pro

cedure will take 5 to 21 working days according to order quantity, testing 1 to 3 working days, a

nd finally, packing 1 day, so fastest 7 days and longest 25 days without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is potential product in the market a

nd promote it, and you will have the right to resell the product in your district.
2. Additional fee discount, cheaper price on purchasing products at smaller quantity.
3. We can offer assist on promotion images, and make images with clients' logo
Q7. How long is warranty for the cable, and if defective or faulty, how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big quantity order, we will offer 0.3%

to 0.5% backup for defective sent with order, so if you order 1000PCs, that means you can get 100

3pcs with backup. If you get faulty more than 5pcs, and less than 0.1%, please contact sales and

offer images, and we will solve your problem in the way of replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free exclusive of shipment freight.

How to contact us?
send your inquiry details in the below, click "send" now! free sample and best price are waiting for

you, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make

it, we will find the same product with good quantity and good price.
