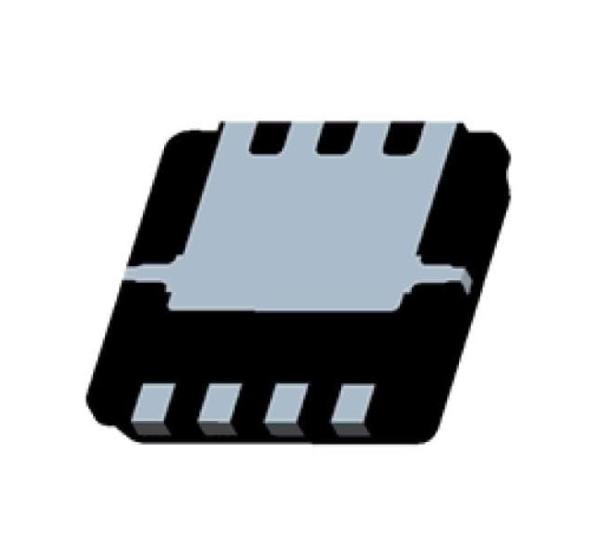

Name: FDMC86139P 44A 15A P Channel MOSFET 100V Moc Field Effect Tube
Brand: ON
Price: 1 USD

Contact Supplier

Message*

Email*

Phone or WhatsApp*

Name

Company

Submit Requirement

Please reply me within 24 hours.

Yes! I would like your verified suppliers matching service!

Manufacturer:	onsemi
Product Category:	MOSFET
RoHS:	Details
Technology:	Si
Mounting Style:	SMD/SMT
Package / Case:	Power-33-8
Transistor Polarity:	P-Channel
Number of Channels:	1 Channel
Vds - Drain-Source Breakdown Voltage:	100 V
Id - Continuous Drain Current:	4.4 A
Rds On - Drain-Source Resistance:	67 mOhms
Vgs - Gate-Source Voltage:	- 25 V, + 25 V
Vgs th - Gate-Source Threshold Voltage:	4 V
Qg - Gate Charge:	22 nC
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 150 C
Pd - Power Dissipation:	2.3 W
Channel Mode:	Enhancement
Tradename:	PowerTrench
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Brand:	onsemi / Fairchild
Configuration:	Single
Fall Time:	4 ns
Forward Transconductance - Min:	12 S
Height:	0.8 mm
Length:	3.3 mm
Product Type:	MOSFET
Rise Time:	2.5 ns
Series:	FDMC86139P
	3000
Subcategory:	MOSFETs
Transistor Type:	1 P-Channel
Typical Turn-Off Delay Time:	17 ns
Typical Turn-On Delay Time:	11 ns
Width:	3.3 mm
Unit Weight:	0.005832 oz

FDMC86139P 4.4A 15A P Channel MOSFET 100V Moc Field Effect Tube
