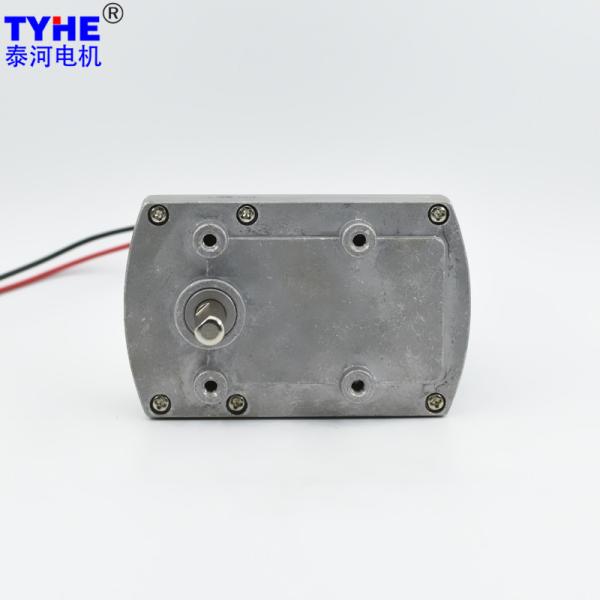

Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP96FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
96mm*60mm
Voltage :
12v 24v or customized
Speed :
5-250rpm Customized
Torque :
5N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
Brushed
Type :
Flat Gear Motor
Keywords :
China Factory Direct Sales 96*60mm Size 12v 24v High Torque Low Rpm Double Shaft Dc Metal Gear Reductor Motor
Description

Products Description

China Factory Direct Sales 96*60mm Size 12v 24v High Torque Low Rpm Double Shaft Dc Flat Gear Reductor Motor

2D drawing

Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm


Powder Metallurgy Flat Gear Motor 24V 12V DC Motor High Torque Low Rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 6000 220 4800 0.86 24.70 12.41 60.29 74.10 5.28
ZY3864 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 84.1 5.37 609.26 1827.77 93.5 6.02 615.51 1846.52
96 73 46.3 77.8 5.37 659.08 1977.24 86.4 6.02 665.84 1997.52
96 73 77.8 46.3 5.37 1107.48 3322.45 51.4 6.02 1118.84 3356.53
96 65.6 156.0 23.1 4.82 1995.55 5986.66 25.6 5.41 2016.02 6048.06
96 65.6 197.0 18.3 4.82 2520.02 7560.07 20.3 5.41 2545.87 7637.61
96 65.6 254.0 14.2 4.82 3249.17 9747.50 15.7 5.41 3282.49 9847.48
96 65.6 297.0 12.1 4.82 3799.22 11397.67 13.5 5.41 3838.19 11514.57
96 65.6 327.0 11.0 4.82 4182.98 12548.95 12.2 5.41 4225.89 12677.66
96 59 653.0 5.5 4.34 7512.77 15000.00 6.1 4.87 7589.82 15000.00
96 59 826.0 4.4 4.34 9503.13 15000.00 4.8 4.87 9600.60 15000.00
96 59 1067.0 3.4 4.34 12275.84 15000.00 3.7 4.87 12401.74 15000.00
96 59 1247.0 2.9 4.34 14346.74 15000.00 3.2 4.87 14493.88 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 106.5 6.90 618.63 1855.89 112.1 7.45 634.25 1902.76
96 73 46.3 98.5 6.90 669.22 2007.66 103.7 7.45 686.12 2058.36
96 73 77.8 58.6 6.90 1124.52 3373.56 61.7 7.45 1152.92 3458.75
96 65.6 156.0 29.2 6.20 2026.25 6078.76 30.8 6.69 2077.42 6232.26
96 65.6 197.0 23.1 6.20 2558.79 7676.38 24.4 6.69 2623.41 7870.23
96 65.6 254.0 18.0 6.20 3299.16 9897.47 18.9 6.69 3382.47 10147.40
96 65.6 297.0 15.4 6.20 3857.67 11573.02 16.2 6.69 3955.09 11865.27
96 65.6 327.0 13.9 6.20 4247.34 12742.01 14.7 6.69 4354.59 13063.78
96 59 653.0 7.0 5.58 7628.35 15000.00 7.4 6.02 7820.98 15000.00
96 59 826.0 5.5 5.58 9649.33 15000.00 5.8 6.02 9893.00 15000.00
96 59 1067.0 4.3 5.58 12464.69 15000.00 4.5 6.02 12779.46 15000.00
96 59 1247.0 3.7 5.58 14567.45 15000.00 3.8 6.02 14935.32 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-6000RPM Input 24V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
96 73 42.8 112.1 9.06 771.73 2315.18 149.5 12.23 781.10 2343.30
96 73 46.3 103.7 9.06 834.84 2504.51 138.2 12.23 844.98 2534.93
96 73 77.8 61.7 9.06 1402.81 4208.44 82.3 12.23 1419.85 4259.55
96 65.6 156.0 30.8 8.14 2527.70 7583.10 41.0 10.99 2558.40 7675.20
96 65.6 197.0 24.4 8.14 3192.03 9576.09 32.5 10.99 3230.80 9692.40
96 65.6 254.0 18.9 8.14 4115.61 12346.84 25.2 10.99 4165.60 12496.80
96 65.6 297.0 16.2 8.14 4812.35 14437.05 21.5 10.99 4870.80 14612.40
96 65.6 327.0 14.7 8.14 5298.45 15000.00 19.6 10.99 5362.80 15000.00
96 59 653.0 7.4 7.32 9516.17 15000.00 9.8 9.88 9631.75 15000.00
96 59 826.0 5.8 7.32 12037.30 15000.00 7.7 9.88 12183.50 15000.00
96 59 1067.0 4.5 7.32 15000.00 15000.00 6.0 9.88 15000.00 15000.00
96 59 1247.0 3.8 7.32 15000.00 15000.00 5.1 9.88 15000.00 15000.00

Please let us know your requirements and we will provide you with transmission solutions.
