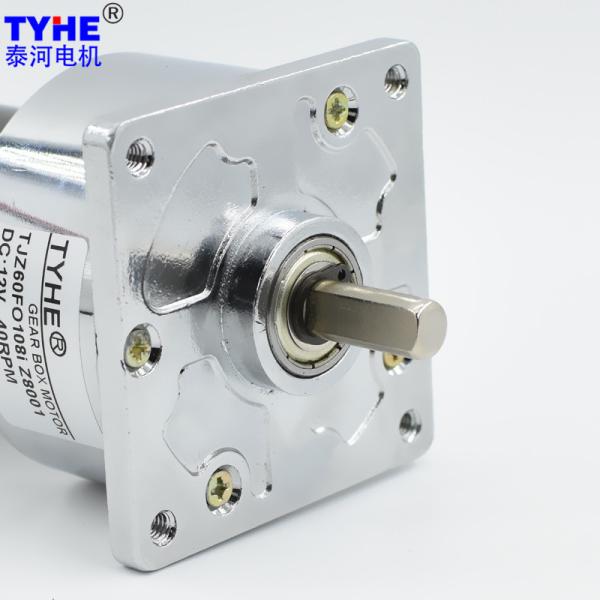

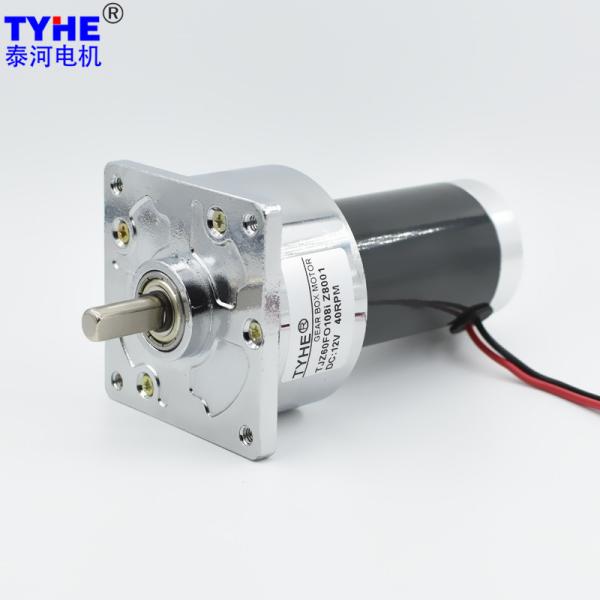

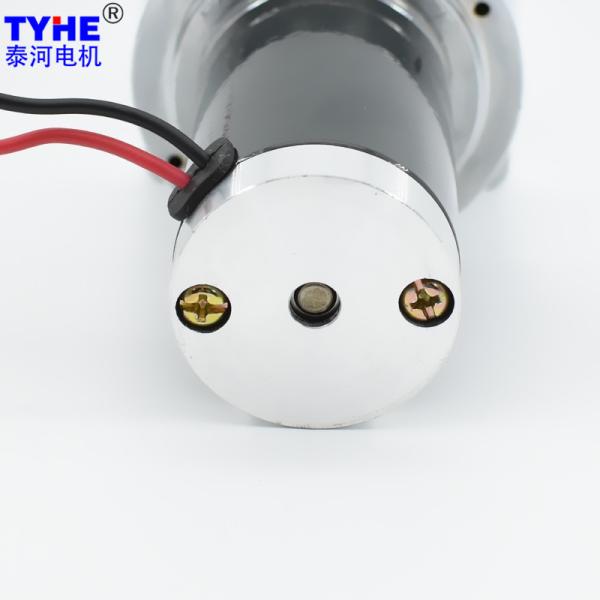

Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
Specifications
Brand Name :
TYHE
Model Number :
TJZ60FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm or Customized
Voltage :
12-24V or customized
Speed :
5~1000rpm
Torque :
10N.m
Gear material :
steel gear
Commutation :
Brush /brushes /brushed
Type :
Gear Motor, Micro Motor
Usage :
head-up display, vehicle sunroof
Keywords :
Reversible 60mm gearhead 9v 12v 24 v 40w 15w 20 watt low rpm 60 rpm 10rpm 75rpm high torque 50kg 100kgf dc gear reduction motor
Description

Reversible 60mm Gearhead 9v 12v 24 V 40w 15w 20 Watt Low Rpm 60 Rpm 10rpm 75rpm High Torque 50kg 100kgf Dc Gear Motor

Products Description

Reversible 60mm gearhead 9v 12v 24 v 40w 15w 20 watt low rpm 60 rpm 10rpm 75rpm high torque 50kg 100kgf dc gear reduction motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 4500 130 3600 0.46 18.20 6.86 62.83 54.60 2.60
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 786.2 7.66 93.02 279.06 827.6 8.26 95.37 286.11
28.5 81 6.8 670.6 7.66 109.06 327.18 705.9 8.26 111.81 335.44
28.5 81 7.9 577.2 7.66 126.70 380.10 607.6 8.26 129.90 389.70
28.5 81 8.8 518.2 7.66 141.13 423.40 545.5 8.26 144.70 434.10
28.5 81 9.8 465.3 7.66 157.17 471.52 489.8 8.26 161.14 483.42
28.5 81 10.5 434.3 7.66 168.40 505.20 457.1 8.26 172.65 517.95
28.5 81 11.6 393.1 7.66 186.04 558.12 413.8 8.26 190.74 572.22
33.5 73 18.6 245.2 6.90 268.84 806.53 258.1 7.45 275.63 826.90
33.5 73 24.0 190.0 6.90 346.90 1040.69 200.0 7.45 355.66 1066.97
33.5 73 28.0 162.9 6.90 404.71 1214.14 171.4 7.45 414.93 1244.80
33.5 73 33.6 135.7 6.90 485.65 1456.96 142.9 7.45 497.92 1493.76
36 65.6 60.0 76.0 6.20 779.33 2337.98 80.0 6.69 799.01 2397.02
36 65.6 71.0 64.2 6.20 922.20 2766.61 67.6 6.69 945.49 2836.48
36 65.6 83.0 54.9 6.20 1078.07 3234.21 57.8 6.69 1105.29 3315.88
36 65.6 91.0 50.1 6.20 1181.98 3545.94 52.7 6.69 1211.83 3635.49
36 65.6 100.0 45.6 6.20 1298.88 3896.64 48.0 6.69 1331.68 3995.04
36 65.6 108.0 42.2 6.20 1402.79 4208.37 44.4 6.69 1438.21 4314.64
36 65.6 118.0 38.6 6.20 1532.68 4598.04 40.7 6.69 1571.38 4714.15
40 59 191.0 23.9 5.58 2231.26 6693.79 25.1 6.02 2287.61 6862.82
40 59 226.0 20.2 5.58 2640.13 7920.40 21.2 6.02 2706.80 8120.41
40 59 265.0 17.2 5.58 3095.73 9287.19 18.1 6.02 3173.91 9521.72
40 59 288.0 15.8 5.58 3364.42 10093.25 16.7 6.02 3449.38 10348.13
40 59 345.0 13.2 5.58 4030.29 12090.87 13.9 6.02 4132.07 12396.20
40 59 379.0 12.0 5.58 4427.48 13282.43 12.7 6.02 4539.28 13617.85
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-4500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 620.7 5.56 85.50 256.51 689.7 6.62 91.61 274.83
28.5 81 6.8 529.4 5.56 100.25 300.74 588.2 6.62 107.41 322.22
28.5 81 7.9 455.7 5.56 116.46 349.39 506.3 6.62 124.78 374.34
28.5 81 8.8 409.1 5.56 129.73 389.19 454.5 6.62 139.00 416.99
28.5 81 9.8 367.3 5.56 144.47 433.41 408.2 6.62 154.79 464.37
28.5 81 10.5 342.9 5.56 154.79 464.37 381.0 6.62 165.85 497.54
28.5 81 11.6 310.3 5.56 171.01 513.02 344.8 6.62 183.22 549.67
33.5 73 18.6 193.5 5.01 247.12 741.36 215.1 5.96 264.77 794.31
33.5 73 24.0 150.0 5.01 318.86 956.59 166.7 5.96 341.64 1024.92
33.5 73 28.0 128.6 5.01 372.01 1116.02 142.9 5.96 398.58 1195.74
33.5 73 33.6 107.1 5.01 446.41 1339.23 119.0 5.96 478.30 1434.89
36 65.6 60.0 60.0 4.50 716.35 2149.06 66.7 5.36 767.52 2302.56
36 65.6 71.0 50.7 4.50 847.68 2543.05 56.3 5.36 908.23 2724.70
36 65.6 83.0 43.4 4.50 990.95 2972.86 48.2 5.36 1061.74 3185.21
36 65.6 91.0 39.6 4.50 1086.47 3259.40 44.0 5.36 1164.07 3492.22
36 65.6 100.0 36.0 4.50 1193.92 3581.76 40.0 5.36 1279.20 3837.60
36 65.6 108.0 33.3 4.50 1289.43 3868.30 37.0 5.36 1381.54 4144.61
36 65.6 118.0 30.5 4.50 1408.83 4226.48 33.9 5.36 1509.46 4528.37
40 59 191.0 18.8 4.05 2050.96 6152.87 20.9 4.82 2197.46 6592.37
40 59 226.0 15.9 4.05 2426.79 7280.36 17.7 4.82 2600.13 7800.39
40 59 265.0 13.6 4.05 2845.57 8536.71 15.1 4.82 3048.83 9146.48
40 59 288.0 12.5 4.05 3092.54 9277.63 13.9 4.82 3313.44 9940.32
40 59 345.0 10.4 4.05 3704.61 11113.83 11.6 4.82 3969.23 11907.68
40 59 379.0 9.5 4.05 4069.70 12209.11 10.6 4.82 4360.40 13081.19

2D drawing

Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w


Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w

Please let us know your requirements and we will provide you with transmission solutions.

Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w

Reversible 60mm Gearhead High Torque Dc Gear Motor 75rpm 12v 24V 40w
