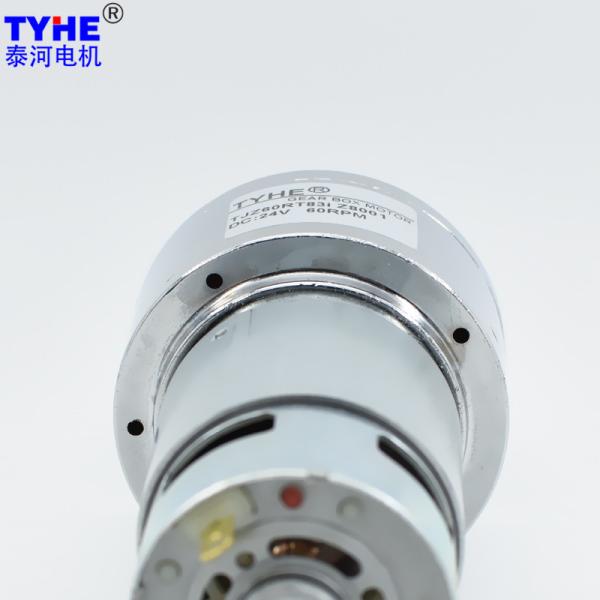

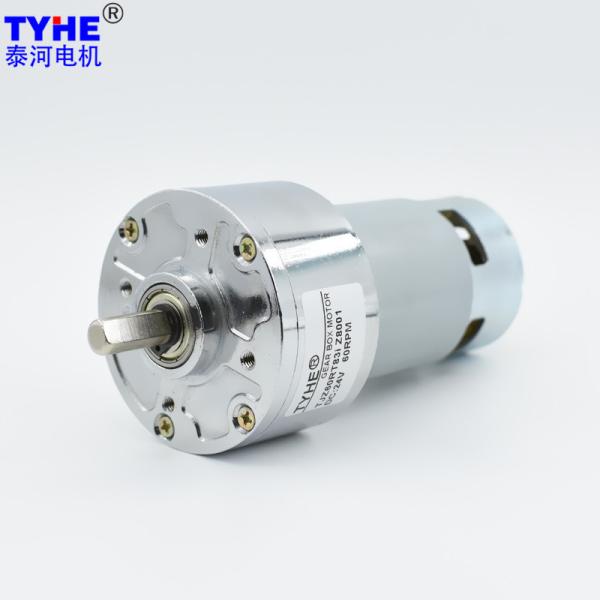

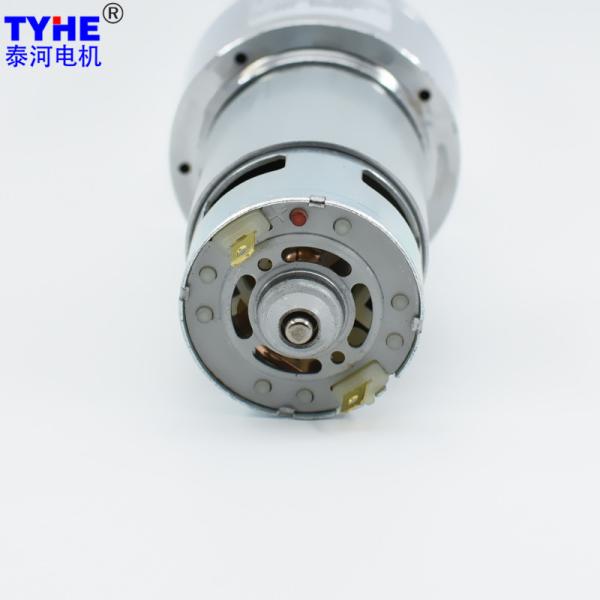

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
Specifications
Brand Name :
TYHE
Model Number :
TJZ60RT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm size
Voltage :
12-24V or customized
Torque :
10N.m
Gear material :
steel gear
Commutation :
Brush /brushes /brushed
Type :
Gear Motor, Micro Motor
Keywords :
Bulk Sale 60MM gearmotor 12v 24v 18 volt 50w 40w 30w 960 rpm 30rpm low speed high torque 60kgf dc metal gear motor
Certificate :
CE/ROHS/ISO9001
Description

Products Description

Bulk Sale 60MM gearmotor 12v 24v 18 volt 50w 40w 30w 960 rpm 30rpm low speed high torque 60kgf dc metal gear motor with ce rohs

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 689.7 10.72 148.46 445.37 965.5 18.05 178.52 535.57
28.5 81 6.8 588.2 10.72 174.05 522.16 823.5 18.05 209.30 627.91
28.5 81 7.9 506.3 10.72 202.21 606.63 708.9 18.05 243.16 729.49
28.5 81 8.8 454.5 10.72 225.24 675.73 636.4 18.05 270.86 812.59
28.5 81 9.8 408.2 10.72 250.84 752.52 571.4 18.05 301.64 904.93
28.5 81 10.5 381.0 10.72 268.76 806.27 533.3 18.05 323.19 969.57
28.5 81 11.6 344.8 10.72 296.91 890.74 482.8 18.05 357.05 1071.14
33.5 73 18.6 215.1 9.66 429.06 1287.19 301.1 16.27 515.96 1547.89
33.5 73 24.0 166.7 9.66 553.63 1660.90 233.3 16.27 665.76 1997.28
33.5 73 28.0 142.9 9.66 645.90 1937.71 200.0 16.27 776.72 2330.16
33.5 73 33.6 119.0 9.66 775.08 2325.25 166.7 16.27 932.06 2796.19
36 65.6 60.0 66.7 8.68 1243.78 3731.33 93.3 14.62 1495.68 4487.04
36 65.6 71.0 56.3 8.68 1471.80 4415.40 78.9 14.62 1769.89 5309.66
36 65.6 83.0 48.2 8.68 1720.56 5161.67 67.5 14.62 2069.02 6207.07
36 65.6 91.0 44.0 8.68 1886.39 5659.18 61.5 14.62 2268.45 6805.34
36 65.6 100.0 40.0 8.68 2072.96 6218.88 56.0 14.62 2492.80 7478.40
36 65.6 108.0 37.0 8.68 2238.80 6716.39 51.9 14.62 2692.22 8076.67
36 65.6 118.0 33.9 8.68 2446.09 7338.28 47.5 14.62 2941.50 8824.51
40 59 191.0 20.9 7.81 3561.00 10683.01 29.3 13.15 4282.22 12846.66
40 59 226.0 17.7 7.81 4213.54 12640.63 24.8 13.15 5066.92 15000.00
40 59 265.0 15.1 7.81 4940.66 14821.98 21.1 13.15 5941.30 15000.00
40 59 288.0 13.9 7.81 5369.47 15000.00 19.4 13.15 6456.96 15000.00
40 59 345.0 11.6 7.81 6432.18 15000.00 16.2 13.15 7734.90 15000.00
40 59 379.0 10.6 7.81 7066.08 15000.00 14.8 13.15 8497.18 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 482.8 7.01 138.59 415.77 689.7 10.52 145.64 436.91
28.5 81 6.8 411.8 7.01 162.49 487.46 588.2 10.52 170.75 512.24
28.5 81 7.9 354.4 7.01 188.77 566.31 506.3 10.52 198.37 595.11
28.5 81 8.8 318.2 7.01 210.28 630.83 454.5 10.52 220.97 662.90
28.5 81 9.8 285.7 7.01 234.17 702.51 408.2 10.52 246.08 738.23
28.5 81 10.5 266.7 7.01 250.90 752.69 381.0 10.52 263.66 790.97
28.5 81 11.6 241.4 7.01 277.18 831.55 344.8 10.52 291.28 873.83
33.5 73 18.6 150.5 6.31 400.55 1201.65 215.1 9.48 420.92 1262.75
33.5 73 24.0 116.7 6.31 516.84 1550.52 166.7 9.48 543.12 1629.36
33.5 73 28.0 100.0 6.31 602.98 1808.94 142.9 9.48 633.64 1900.92
33.5 73 33.6 83.3 6.31 723.58 2170.73 119.0 9.48 760.37 2281.10
36 65.6 60.0 46.7 5.67 1161.12 3483.36 66.7 8.52 1220.16 3660.48
36 65.6 71.0 39.4 5.67 1373.99 4121.98 56.3 8.52 1443.86 4331.57
36 65.6 83.0 33.7 5.67 1606.22 4818.65 48.2 8.52 1687.89 5063.66
36 65.6 91.0 30.8 5.67 1761.03 5283.10 44.0 8.52 1850.58 5551.73
36 65.6 100.0 28.0 5.67 1935.20 5805.60 40.0 8.52 2033.60 6100.80
36 65.6 108.0 25.9 5.67 2090.02 6270.05 37.0 8.52 2196.29 6588.86
36 65.6 118.0 23.7 5.67 2283.54 6850.61 33.9 8.52 2399.65 7198.94
40 59 191.0 14.7 5.10 3324.36 9973.07 20.9 7.66 3493.39 10480.17
40 59 226.0 12.4 5.10 3933.53 11800.59 17.7 7.66 4133.54 12400.62
40 59 265.0 10.6 5.10 4612.33 13836.98 15.1 7.66 4846.85 14540.55
40 59 288.0 9.7 5.10 5012.64 15000.00 13.9 7.66 5267.52 15000.00
40 59 345.0 8.1 5.10 6004.73 15000.00 11.6 7.66 6310.05 15000.00
40 59 379.0 7.4 5.10 6596.50 15000.00 10.6 7.66 6931.91 15000.00

2D drawing

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed


12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed

Please let us know your requirements and we will provide you with transmission solutions.

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed

12v 24v 60MM High Torque DC Gear Motor 30w 960Rpm 30rpm Low Speed
