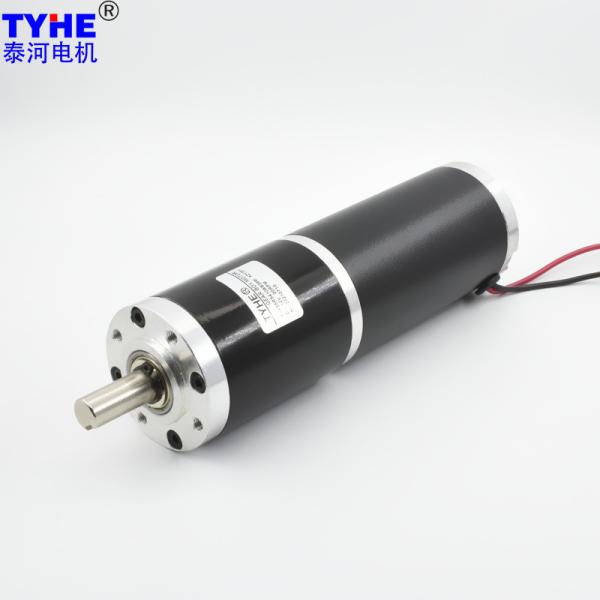

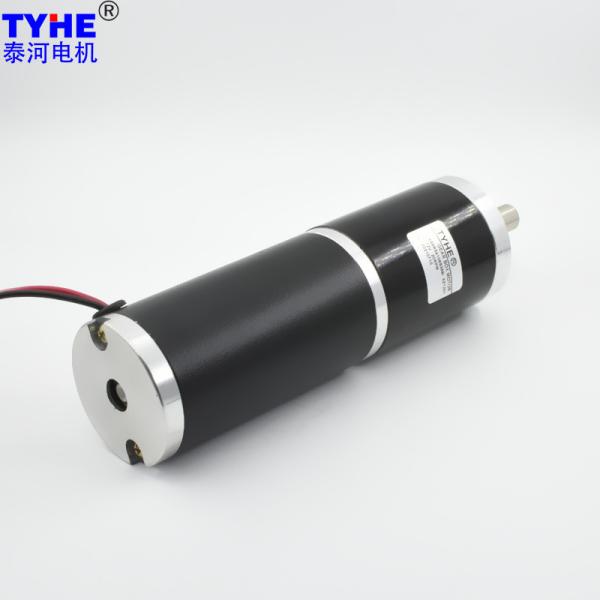

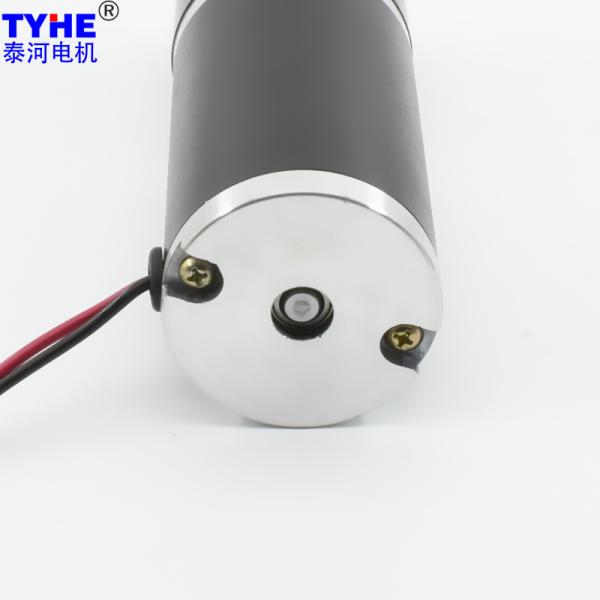

56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
Specifications
Brand Name :
TYHE
Model Number :
TJX55R54106S
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD 55mm
Voltage :
24v or customized
Speed :
1-1300rpm Customized
Torque :
38N.m
Gear material :
Metal gears
Commutation :
Brush
Type :
Planetary Gear Motor
Keywords :
Factory Direct Sale 56mm 12v 24v 50nm 250w 30 Amp 7n 200 kgcm High Torque Dc Planetary Geared Motor For Rolling Door
Description

Products Description

Factory Direct Sale 56mm 12v 24v 50nm 250w 30 Amp 7n 200kgcm High Torque Dc Planetary Geared Motor For Rolling Door

2D drawing

56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door


56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY54106 12 7000 1950 5600 9.08 125.67 73.69 67.67 377.01 37.50
ZY54106 24 7000 980 5600 4.89 129.64 76.02 64.74 388.92 21.50
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-7000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.8 90 3.7 1513.5 66.32 418.48 1255.44 1513.5 68.42 431.70 1295.10
31.8 90 5.2 1076.9 66.32 588.14 1764.41 1076.9 68.42 606.72 1820.15
44 81 13.7 408.8 59.69 1394.56 4183.68 408.8 61.58 1438.62 4315.85
44 81 19.2 291.7 59.69 1954.42 5863.26 291.7 61.58 2016.16 6048.48
44 81 26.9 208.2 59.69 2738.22 8214.67 208.2 61.58 2824.73 8474.18
44 81 35.0 160.0 59.69 3562.74 10688.23 160.0 61.58 3675.29 11025.88
57.5 73 51.0 109.8 53.79 4678.69 14036.08 109.8 55.49 4826.50 14479.49
57.5 73 71.0 78.9 53.79 6513.48 19540.43 78.9 55.49 6719.24 20157.72
57.5 73 100.0 56.0 53.79 9173.91 27521.73 56.0 55.49 9463.72 28391.16
57.5 73 139.0 40.3 53.79 12751.73 38255.20 40.3 55.49 13154.57 39463.71
72.5 65.6 189.0 29.6 48.34 15581.07 46743.21 29.6 49.87 16073.29 48000.00
72.5 65.6 264.0 21.2 48.34 21764.03 48000.00 21.2 49.87 22451.57 48000.00
72.5 65.6 369.0 15.2 48.34 30420.18 48000.00 15.2 49.87 31381.18 48000.00
72.5 65.6 514.0 10.9 48.34 42373.91 48000.00 10.9 49.87 43712.53 48000.00
72.5 65.6 721.0 7.8 48.34 48000.00 48000.00 7.8 49.87 48000.00 48000.00
85.7 59 699.0 8.0 43.48 48000.00 48000.00 8.0 44.85 48000.00 48000.00
85.7 59 977.0 5.7 43.48 48000.00 48000.00 5.7 44.85 48000.00 48000.00
85.7 59 1367.0 4.1 43.48 48000.00 48000.00 4.1 44.85 48000.00 48000.00
85.7 59 1911.0 2.9 43.48 48000.00 48000.00 2.9 44.85 48000.00 48000.00
85.7 59 2672.0 2.1 43.48 48000.00 48000.00 2.1 44.85 48000.00 48000.00
85.7 59 3736.0 1.5 43.48 48000.00 48000.00 1.5 44.85 48000.00 48000.00

Please let us know your requirements and we will provide you with transmission solutions.

56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door

56mm 50nm 200kg.Cm High Torque DC Gear Motor 24V 250w 30Amp For Rolling Door
