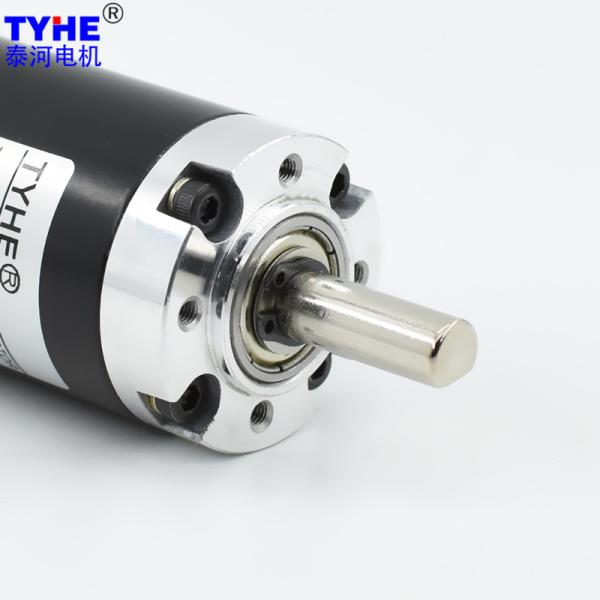

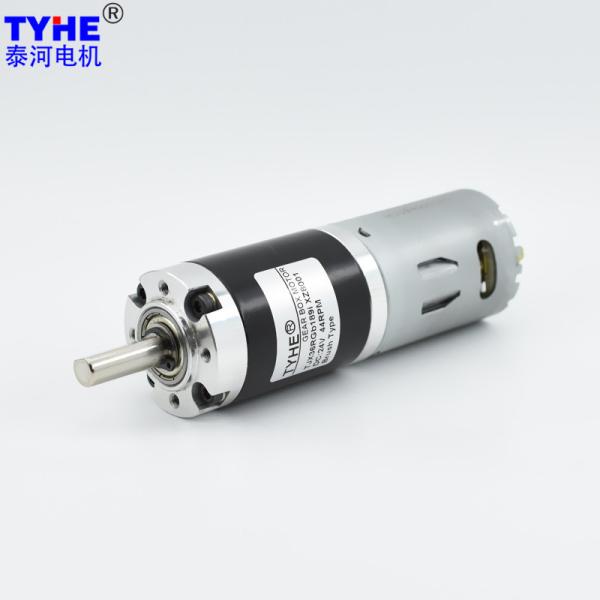

36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
Specifications
Brand Name :
TYHE
Model Number :
TJX36RGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
36mm dia
Voltage :
16v or customized
Speed :
1-1830rpm Customized
Torque :
9N.m
Gear material :
Steel gears
Commutation :
brushed
Type :
DC Planetary Gear Motor, Mini Motor
Keywords :
36d High Torque 90kg.Cm 24v Dc Micro Planetary Gear Motor 20w Power Planet Gearbox Speed Ruducer Motor
Description

Products Description

36d High Torque 90kg.Cm 24v Dc Micro Planetary Gear Motor 20w Power Planet Gearbox Speed Ruducer Motor

2D drawing

36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W


36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS545 6 3200 280 2560 0.81 11.20 3.00 61.65 33.60 4.70
RS545 12 2000 70 1600 0.20 8.95 1.50 63.54 26.85 1.10
RS545 24 6000 160 4800 0.60 17.50 8.80 61.25 52.50 4.30
RS545 24 8300 200 6640 0.88 19.30 13.42 63.90 57.90 6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-3200RPM Input 12V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 691.9 2.70 37.30 111.89 432.4 1.35 29.80 89.41
28.2 90 5.2 492.3 2.70 52.42 157.25 307.7 1.35 41.89 125.66
37 81 13.7 186.9 2.43 124.29 372.86 116.8 1.21 99.32 297.95
37 81 19.2 133.3 2.43 174.18 522.55 83.3 1.21 139.19 417.57
37 81 26.9 95.2 2.43 244.04 732.11 59.5 1.21 195.01 585.03
37 81 35.0 73.1 2.43 317.52 952.56 45.7 1.21 253.73 761.20
45.8 73 51.0 50.2 2.19 416.98 1250.93 31.4 1.09 333.21 999.63
45.8 73 71.0 36.1 2.19 580.50 1741.49 22.5 1.09 463.88 1391.64
45.8 73 100.0 25.6 2.19 817.60 2452.80 16.0 1.09 653.35 1960.05
45.8 73 139.0 18.4 2.19 1136.46 3409.39 11.5 1.09 908.16 2724.47
54.7 65.6 189.0 13.5 1.97 1388.62 4165.86 8.5 0.98 1109.66 3328.97
54.7 65.6 264.0 9.7 1.97 1939.66 5818.98 6.1 0.98 1550.00 4649.99
54.7 65.6 369.0 6.9 1.97 2711.12 8133.35 4.3 0.98 2166.47 6499.42
54.7 65.6 514.0 5.0 1.97 3776.46 10000.00 3.1 0.98 3017.80 9053.39
54.7 65.6 721.0 3.6 1.97 5297.33 10000.00 2.2 0.98 4233.14 10000.00
64 59 699.0 3.7 1.77 4618.99 10000.00 2.3 0.88 3691.07 10000.00
64 59 977.0 2.6 1.77 6456.02 10000.00 1.6 0.88 5159.05 10000.00
64 59 1367.0 1.9 1.77 9033.14 10000.00 1.2 0.88 7218.44 10000.00
64 59 1911.0 1.3 1.77 10000.00 10000.00 0.8 0.88 10000.00 10000.00
64 59 2672.0 1.0 1.77 10000.00 10000.00 0.6 0.88 10000.00 10000.00
64 59 3736.0 0.7 1.77 10000.00 10000.00 0.4 0.88 10000.00 10000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 1297.3 7.92 58.28 174.83 1794.6 12.08 64.27 192.81
28.2 90 5.2 923.1 7.92 81.90 245.70 1276.9 12.08 90.32 270.97
37 81 13.7 350.4 7.12 194.20 582.59 484.7 10.87 214.17 642.52
37 81 19.2 250.0 7.12 272.16 816.48 345.8 10.87 300.15 900.46
37 81 26.9 178.4 7.12 381.31 1143.92 246.8 10.87 420.53 1261.58
37 81 35.0 137.1 7.12 496.13 1488.38 189.7 10.87 547.16 1641.47
45.8 73 51.0 94.1 6.42 651.53 1954.58 130.2 9.80 718.54 2155.62
45.8 73 71.0 67.6 6.42 907.03 2721.08 93.5 9.80 1000.32 3000.96
45.8 73 100.0 48.0 6.42 1277.50 3832.50 66.4 9.80 1408.90 4226.70
45.8 73 139.0 34.5 6.42 1775.73 5327.18 47.8 9.80 1958.37 5875.11
54.7 65.6 189.0 25.4 5.77 2169.72 6509.16 35.1 8.80 2392.89 7178.67
54.7 65.6 264.0 18.2 5.77 3030.72 9092.16 25.2 8.80 3342.45 10000.00
54.7 65.6 369.0 13.0 5.77 4236.12 10000.00 18.0 8.80 4671.84 10000.00
54.7 65.6 514.0 9.3 5.77 5900.72 10000.00 12.9 8.80 6507.65 10000.00
54.7 65.6 721.0 6.7 5.77 8277.08 10000.00 9.2 8.80 9128.44 10000.00
64 59 699.0 6.9 5.19 7217.18 10000.00 9.5 7.92 7959.51 10000.00
64 59 977.0 4.9 5.19 10000.00 10000.00 6.8 7.92 10000.00 10000.00
64 59 1367.0 3.5 5.19 10000.00 10000.00 4.9 7.92 10000.00 10000.00
64 59 1911.0 2.5 5.19 10000.00 10000.00 3.5 7.92 10000.00 10000.00
64 59 2672.0 1.8 5.19 10000.00 10000.00 2.5 7.92 10000.00 10000.00
64 59 3736.0 1.3 5.19 10000.00 10000.00 1.8 7.92 10000.00 10000.00

Please let us know your requirements and we will provide you with transmission solutions.

36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W

36mm 24V Reduction Gearbox High Torque DC Gear Motor 90kg.Cm 20W
