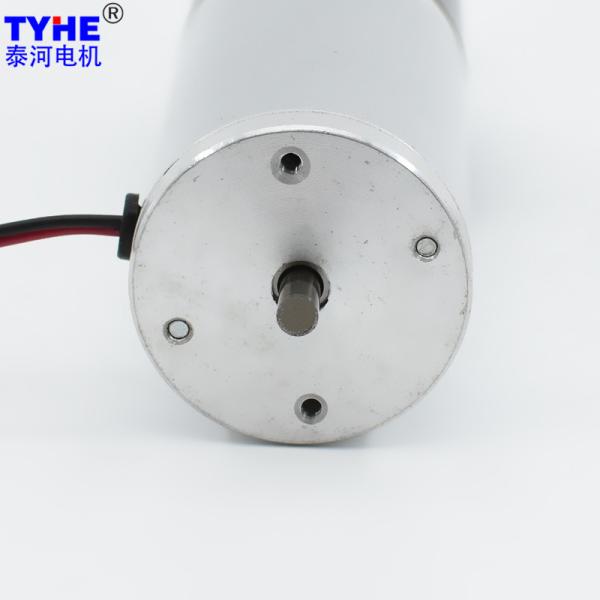

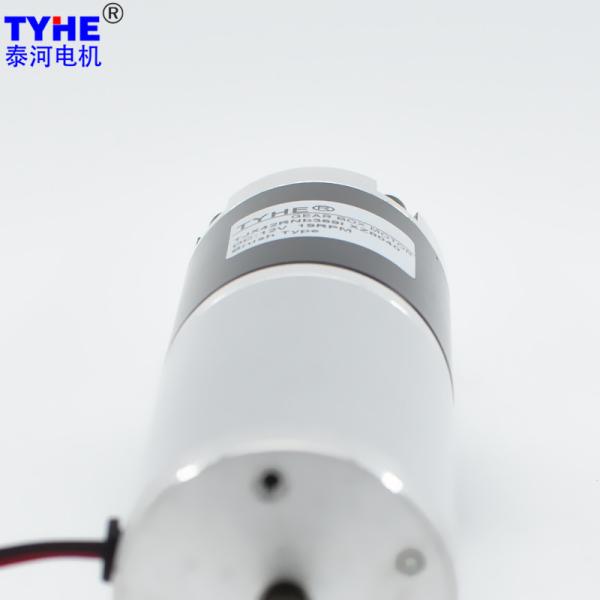

TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm
Specifications
Brand Name :
TYHE
Model Number :
TJX42RNb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm diameter
Voltage :
DC12-24v or customized
Speed :
1-1500rpm Customized
Torque :
15N.m
Gear material :
Steel gears
Commutation :
Brushed
Type :
DC Planetary Gear Motor, Small Motor
Keywords :
High Efficiency Motors Small Size D42mm 12v 24v 200kg Cm High Torque Dc Planetary Metal Gear Motor
Description

Products Description

High Efficiency Motors Small Size D42mm 12v 24v 200kg Cm High Torque Dc Planetary Metal Gear Motor

2D drawing

TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm


TYHE Small Planetary Metal Gear 12V DC Gear Motor High Torque D42mm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY4278 12 4000 300 3200 1.20 26.50 8.88 61.66 79.50 7.50
ZY4278 12 7500 750 6000 3.00 35.50 22.30 61.95 106.50 18.75
ZY4278 24 2300 90 1840 0.36 28.10 5.41 62.66 84.30 2.25
ZY4278 24 5500 260 4400 1.04 33.50 15.43 61.84 100.50 6.50
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 12V-4000RPM Input 12V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
29.7 90 3.7 864.9 7.99 88.25 264.74 1621.6 20.07 118.22 354.65
29.7 90 5.2 615.4 7.99 124.02 372.06 1153.8 20.07 166.14 498.42
39.4 81 13.7 233.6 7.19 294.07 882.21 438.0 18.07 393.94 1181.83
39.4 81 19.2 166.7 7.19 412.13 1236.38 312.5 18.07 552.10 1656.29
39.4 81 26.9 119.0 7.19 577.41 1732.23 223.0 18.07 773.51 2320.53
39.4 81 35.0 91.4 7.19 751.28 2253.83 171.4 18.07 1006.43 3019.28
49.1 73 51.0 62.7 6.48 986.60 2959.79 117.6 16.28 1321.67 3965.00
49.1 73 71.0 45.1 6.48 1373.50 4120.49 84.5 16.28 1839.97 5519.90
49.1 73 100.0 32.0 6.48 1934.50 5803.50 60.0 16.28 2591.50 7774.50
49.1 73 139.0 23.0 6.48 2688.96 8066.87 43.2 16.28 3602.19 10806.56
60.3 65.6 189.0 16.9 5.83 3285.58 9856.73 31.7 14.63 4401.43 13204.30
60.3 65.6 264.0 12.1 5.83 4589.38 13768.13 22.7 14.63 6148.03 18444.10
60.3 65.6 369.0 8.7 5.83 6414.70 19244.09 16.3 14.63 8593.27 25000.00
60.3 65.6 514.0 6.2 5.83 8935.38 25000.00 11.7 14.63 11970.03 25000.00
60.3 65.6 721.0 4.4 5.83 12533.86 25000.00 8.3 14.63 16790.65 25000.00
71.5 59 699.0 4.6 5.24 10928.87 25000.00 8.6 13.16 14640.56 25000.00
71.5 59 977.0 3.3 5.24 15275.40 25000.00 6.1 13.16 20463.27 25000.00
71.5 59 1367.0 2.3 5.24 21373.05 25000.00 4.4 13.16 25000.00 25000.00
71.5 59 1911.0 1.7 5.24 25000.00 25000.00 3.1 13.16 25000.00 25000.00
71.5 59 2672.0 1.2 5.24 25000.00 25000.00 2.2 13.16 25000.00 25000.00
71.5 59 3736.0 0.9 5.24 25000.00 25000.00 1.6 13.16 25000.00 25000.00
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 24V-2300RPM Input 24V-5500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
29.7 90 3.7 497.3 4.87 93.57 280.72 1189.2 13.89 111.56 334.67
29.7 90 5.2 353.8 4.87 131.51 394.52 846.2 13.89 156.78 470.34
39.4 81 13.7 134.3 4.39 311.83 935.48 321.2 12.50 371.75 1115.25
39.4 81 19.2 95.8 4.39 437.01 1311.03 229.2 12.50 520.99 1562.98
39.4 81 26.9 68.4 4.39 612.27 1836.81 163.6 12.50 729.93 2189.79
39.4 81 35.0 52.6 4.39 796.64 2389.91 125.7 12.50 949.73 2849.18
49.1 73 51.0 36.1 3.95 1046.16 3138.49 86.3 11.27 1247.21 3741.62
49.1 73 71.0 25.9 3.95 1456.42 4369.27 62.0 11.27 1736.31 5208.92
49.1 73 100.0 18.4 3.95 2051.30 6153.90 44.0 11.27 2445.50 7336.50
49.1 73 139.0 13.2 3.95 2851.31 8553.92 31.7 11.27 3399.25 10197.74
60.3 65.6 189.0 9.7 3.55 3483.95 10451.85 23.3 10.13 4153.46 12460.39
60.3 65.6 264.0 7.0 3.55 4866.47 14599.41 16.7 10.13 5801.66 17404.99
60.3 65.6 369.0 5.0 3.55 6802.00 20406.00 11.9 10.13 8109.14 24327.43
60.3 65.6 514.0 3.6 3.55 9474.87 25000.00 8.6 10.13 11295.66 25000.00
60.3 65.6 721.0 2.6 3.55 13290.63 25000.00 6.1 10.13 15844.70 25000.00
71.5 59 699.0 2.6 3.19 11588.72 25000.00 6.3 9.11 13815.74 25000.00
71.5 59 977.0 1.9 3.19 16197.68 25000.00 4.5 9.11 19310.41 25000.00
71.5 59 1367.0 1.3 3.19 22663.49 25000.00 3.2 9.11 25000.00 25000.00
71.5 59 1911.0 1.0 3.19 25000.00 25000.00 2.3 9.11 25000.00 25000.00
71.5 59 2672.0 0.7 3.19 25000.00 25000.00 1.6 9.11 25000.00 25000.00
71.5 59 3736.0 0.5 3.19 25000.00 25000.00 1.2 9.11 25000.00 25000.00

Please let us know your requirements and we will provide you with transmission solutions.
