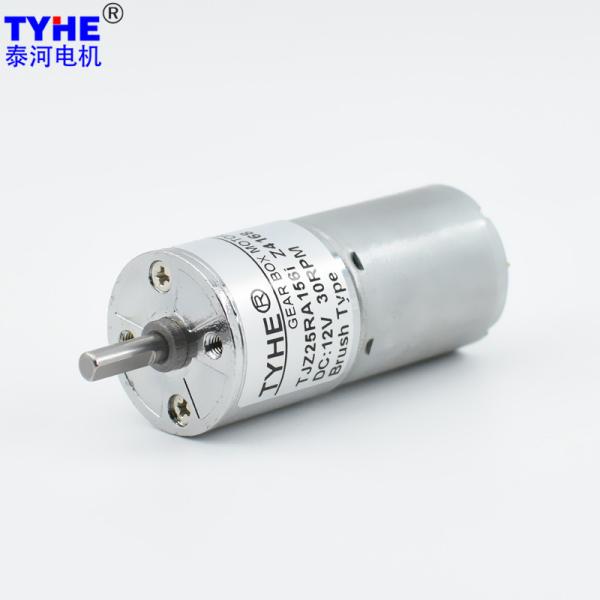

25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v
Specifications
Brand Name :
TYHE
Model Number :
TJZ25RA
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D25mm
Voltage :
3v 7.4v 12v 24v
Speed :
25-1500rpm
Torque :
≤1.55N.m
Gear material :
Powder gears
Commutation :
Brush
Type :
Gear Motor, Micro Motor
Usage :
Car, Electric Bicycle
Keywords :
Customizable low noise high efficiency 12v 6v 24v 25mm 0.5w mini rf370 low rpm high torque 15kgcm dc gear motor ce rohs
Description

Products Description

Customizable low noise high efficiency 12v 6v 24v 25mm 0.5w mini rf370 low rpm high torque 15kgcm dc gear motor ce rohs

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ25RA φ25mm RF370 4mm-D cut 100g

Specifications

DC Motor Technical Data
Model

Rated Voltage

(V)

 No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
370 6 6500 70 5200 0.23 1.58 0.86 62.34 4.74 1.50
370 6 7500 80 6000 0.26 1.60 1.01 65.06 4.80 1.65
370 12 6500 30 5200 0.12 1.72 0.94 62.86 5.16 0.95
370 12 11000 70 8800 0.23 1.95 1.80 65.10 5.85 1.50
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 6V-6500RPM Input 6V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 1083.3 0.70 6.14 18.43 1250.0 0.81 6.22 18.66
19 81 5.7 912.3 0.70 7.29 21.88 1052.6 0.81 7.39 22.16
19 73 10.6 490.6 0.63 12.23 36.68 566.0 0.73 12.38 37.14
19 73 12.5 416.0 0.63 14.42 43.25 480.0 0.73 14.60 43.80
19 73 14.7 353.7 0.63 16.95 50.86 408.2 0.73 17.17 51.51
19 65.6 23.0 226.1 0.56 23.84 71.52 260.9 0.66 24.14 72.42
19 65.6 27.5 189.1 0.56 28.50 85.51 218.2 0.66 28.86 86.59
19 65.6 32.0 162.5 0.56 33.17 99.50 187.5 0.66 33.59 100.76
19 65.6 38.0 136.8 0.56 39.39 118.16 157.9 0.66 39.88 119.65
22 59 51.5 101.0 0.51 48.01 144.02 116.5 0.59 48.62 145.85
22 59 60.5 86.0 0.51 56.40 169.19 99.2 0.59 57.11 171.34
22 59 71.0 73.2 0.51 66.19 198.56 84.5 0.59 67.02 201.07
22 59 83.0 62.7 0.51 77.37 232.12 72.3 0.59 78.35 235.06
22 59 98.0 53.1 0.51 91.36 274.07 61.2 0.59 92.51 277.54
24 53 113.0 46.0 0.46 94.63 283.88 53.1 0.53 95.82 287.47
24 53 133.0 39.1 0.46 111.37 334.12 45.1 0.53 112.78 338.35
24 53 156.0 33.3 0.46 130.63 391.90 38.5 0.53 132.29 396.86
24 53 184.0 28.3 0.46 154.08 462.24 32.6 0.53 156.03 468.10
24 53 215.0 24.2 0.46 180.04 540.12 27.9 0.53 182.32 546.96
24 53 253.0 20.6 0.46 211.86 635.59 23.7 0.53 214.54 643.63
27 47.8 249.0 20.9 0.41 188.05 564.16 24.1 0.48 190.44 571.31
27 47.8 293.0 17.7 0.41 221.29 663.86 20.5 0.48 224.09 672.26
27 47.8 344.0 15.1 0.41 259.80 779.41 17.4 0.48 263.09 789.27
27 47.8 404.0 12.9 0.41 305.12 915.35 14.9 0.48 308.98 926.94
27 47.8 474.0 11.0 0.41 357.98 1073.95 12.7 0.48 362.52 1087.55
27 47.8 557.0 9.3 0.41 420.67 1262.01 10.8 0.48 425.99 1277.98
27 47.8 654.0 8.0 0.41 493.93 1481.78 9.2 0.48 500.18 1500.00
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-6500RPM Input 12V-11000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 1083.3 0.76 6.69 20.06 1833.3 1.46 7.58 22.74
19 81 5.7 912.3 0.76 7.94 23.82 1543.9 1.46 9.00 27.01
19 73 10.6 490.6 0.68 13.31 39.93 830.2 1.31 15.09 45.27
19 73 12.5 416.0 0.68 15.70 47.09 704.0 1.31 17.79 53.38
19 73 14.7 353.7 0.68 18.46 55.37 598.6 1.31 20.93 62.78
19 65.6 23.0 226.1 0.61 25.95 77.85 382.6 1.18 29.42 88.26
19 65.6 27.5 189.1 0.61 31.03 93.09 320.0 1.18 35.18 105.53
19 65.6 32.0 162.5 0.61 36.11 108.32 275.0 1.18 40.93 122.80
19 65.6 38.0 136.8 0.61 42.88 128.63 231.6 1.18 48.61 145.83
22 59 51.5 101.0 0.55 52.26 156.79 170.9 1.06 59.25 177.75
22 59 60.5 86.0 0.55 61.40 184.19 145.5 1.06 69.61 208.82
22 59 71.0 73.2 0.55 72.05 216.15 123.9 1.06 81.69 245.06
22 59 83.0 62.7 0.55 84.23 252.69 106.0 1.06 95.49 286.47
22 59 98.0 53.1 0.55 99.45 298.35 89.8 1.06 112.75 338.25
24 53 113.0 46.0 0.50 103.01 309.03 77.9 0.95 116.79 350.36
24 53 133.0 39.1 0.50 121.24 363.73 66.2 0.95 137.46 412.37
24 53 156.0 33.3 0.50 142.21 426.63 56.4 0.95 161.23 483.68
24 53 184.0 28.3 0.50 167.73 503.20 47.8 0.95 190.16 570.49
24 53 215.0 24.2 0.50 195.99 587.98 40.9 0.95 222.20 666.61
24 53 253.0 20.6 0.50 230.63 691.90 34.8 0.95 261.48 784.43
27 47.8 249.0 20.9 0.45 204.72 614.15 35.3 0.86 232.09 696.28
27 47.8 293.0 17.7 0.45 240.89 722.68 30.0 0.86 273.11 819.32
27 47.8 344.0 15.1 0.45 282.82 848.47 25.6 0.86 320.64 961.93
27 47.8 404.0 12.9 0.45 332.15 996.46 21.8 0.86 376.57 1129.71
27 47.8 474.0 11.0 0.45 389.70 1169.11 18.6 0.86 441.82 1325.45
27 47.8 557.0 9.3 0.45 457.94 1373.83 15.8 0.86 519.18 1500.00
27 47.8 654.0 8.0 0.45 537.69 1500.00 13.5 0.86 609.59 1500.00


25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v

25mm 0.5w Mini Rf370 Low Rpm Dc Gear Motor Ce Rohs Low Noise 12v 6v 24v

Please let us know your requirements and we will provide you with transmission solutions.
