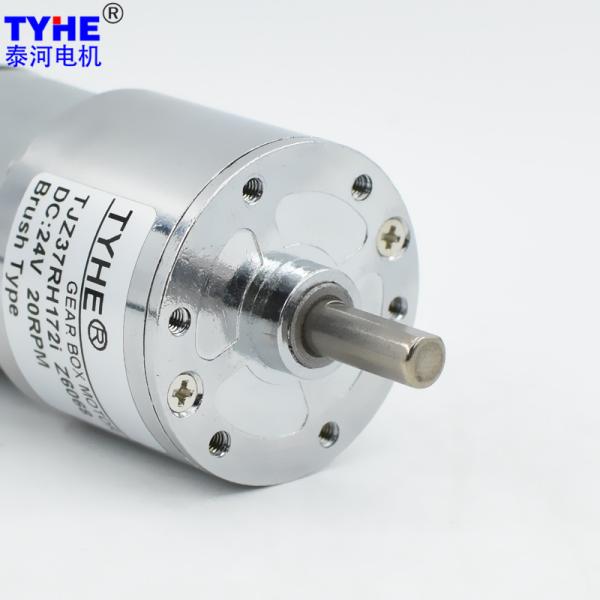

37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm
Specifications
Brand Name :
TYHE
Model Number :
TJZ37RH
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
3V-24V
Speed :
customized
Torque :
2.55N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushes brushed
Type :
Gear Motor,mini Motor
Usage :
,Height Adjustable Desk
Keywords :
Customizable 37mm Gearbox 3v 6v 7.2v 12v 14.4v High Torque Low Rpm 2 Watt 2rpm 5rpm 2nm 3500rpm Micro Dc Spur Gear Motor
Description

Products Description

Customizable 37mm Gearbox 3v 6v 7.2v 12v 14.4v High Torque Low Rpm 2 Watt 2rpm 5rpm 2nm 3500rpm Micro Dc Spur Gear Motor

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37RH φ37mm ZY3324 6mm-D cut 170g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3324 6 7000 80 5600 0.37 2.35 1.38 62.78 7.05 2.95
ZY3324 7 4000 30 3200 0.14 1.79 0.60 62.70 5.37 1.10
ZY3324 12 4000 18 3200 0.08 1.75 0.59 62.12 5.25 0.62
ZY3324 12 5000 32 4000 0.12 2.12 0.89 64.07 6.36 0.81
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-7000RPM Input 7V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1217.4 1.12 8.76 26.27 695.7 0.49 6.67 20.01
22.5 81 5.9 949.2 1.12 11.23 33.69 542.4 0.49 8.55 25.66
22.5 81 6.9 811.6 1.12 13.13 39.40 463.8 0.49 10.00 30.01
22.5 73 8.4 666.7 1.01 14.41 43.23 381.0 0.44 10.98 32.93
22.5 73 10.6 528.3 1.01 18.18 54.55 301.9 0.44 13.85 41.55
22.5 73 13.5 414.8 1.01 23.16 69.48 237.0 0.44 17.64 52.92
22.5 73 16.0 350.0 1.01 27.45 82.34 200.0 0.44 20.91 62.72
24.5 65.6 19.3 290.2 0.90 29.75 89.26 165.8 0.39 22.66 67.99
24.5 65.6 24.4 229.5 0.90 37.62 112.85 131.1 0.39 28.65 85.95
24.5 65.6 31.6 177.2 0.90 48.71 146.14 101.3 0.39 37.11 111.32
24.5 65.6 37.0 151.4 0.90 57.04 171.12 86.5 0.39 43.45 130.34
26.5 59 45.0 124.4 0.81 62.39 187.18 71.1 0.35 47.52 142.57
26.5 59 57.0 98.2 0.81 79.03 237.09 56.1 0.35 60.20 180.59
26.5 59 73.6 76.1 0.81 102.05 306.14 43.5 0.35 77.73 233.19
26.5 59 86.0 65.1 0.81 119.24 357.72 37.2 0.35 90.82 272.47
26.5 59 95.0 58.9 0.81 131.72 395.15 33.7 0.35 100.33 300.99
29.5 53 105.0 53.3 0.73 130.78 392.33 30.5 0.32 99.61 298.84
29.5 53 133.0 42.1 0.73 165.65 496.95 24.1 0.32 126.18 378.53
29.5 53 172.0 32.6 0.73 214.23 642.68 18.6 0.32 163.18 489.53
29.5 53 201.0 27.9 0.73 250.35 751.04 15.9 0.32 190.69 572.07
29.5 53 221.0 25.3 0.73 275.26 825.77 14.5 0.32 209.66 628.99
29.5 53 244.0 23.0 0.73 303.90 911.71 13.1 0.32 231.48 694.45
32.5 47.8 245.0 22.9 0.66 275.21 825.63 13.1 0.29 209.63 628.88
32.5 47.8 310.0 18.1 0.66 348.22 1044.67 10.3 0.29 265.24 795.73
32.5 47.8 401.0 14.0 0.66 450.44 1351.33 8.0 0.29 343.10 1029.31
32.5 47.8 469.0 11.9 0.66 526.83 1580.48 6.8 0.29 401.29 1203.86
32.5 47.8 516.0 10.9 0.66 579.62 1738.87 6.2 0.29 441.50 1324.50
32.5 47.8 569.0 9.8 0.66 639.16 1917.47 5.6 0.29 486.85 1460.54
32.5 47.8 627.0 8.9 0.66 704.31 2112.93 5.1 0.29 536.47 1609.42
32.5 43 1093.0 5.1 0.59 1104.48 2500.00 2.9 0.26 841.28 2500.00
32.5 43 1205.0 4.6 0.59 1217.65 2500.00 2.7 0.26 927.49 2500.00
32.5 43 1328.0 4.2 0.59 1341.94 2500.00 2.4 0.26 1022.16 2500.00
32.5 43 1463.0 3.8 0.59 1478.36 2500.00 2.2 0.26 1126.07 2500.00
32.5 43 1613.0 3.5 0.59 1629.94 2500.00 2.0 0.26 1241.53 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4000RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 695.7 0.47 6.52 19.56 869.6 0.72 7.90 23.70
22.5 81 5.9 542.4 0.47 8.36 25.09 678.0 0.72 10.13 30.39
22.5 81 6.9 463.8 0.47 9.78 29.34 579.7 0.72 11.85 35.55
22.5 73 8.4 381.0 0.43 10.73 32.19 476.2 0.65 13.00 39.00
22.5 73 10.6 301.9 0.43 13.54 40.62 377.4 0.65 16.40 49.21
22.5 73 13.5 237.0 0.43 17.25 51.74 296.3 0.65 20.89 62.68
22.5 73 16.0 200.0 0.43 20.44 61.32 250.0 0.65 24.76 74.28
24.5 65.6 19.3 165.8 0.38 22.16 66.47 207.3 0.58 26.84 80.52
24.5 65.6 24.4 131.1 0.38 28.01 84.03 163.9 0.58 33.93 101.80
24.5 65.6 31.6 101.3 0.38 36.28 108.83 126.6 0.58 43.95 131.84
24.5 65.6 37.0 86.5 0.38 42.48 127.43 108.1 0.58 51.46 154.37
26.5 59 45.0 71.1 0.35 46.46 139.39 88.9 0.52 56.29 168.86
26.5 59 57.0 56.1 0.35 58.85 176.56 70.2 0.52 71.30 213.89
26.5 59 73.6 43.5 0.35 75.99 227.98 54.3 0.52 92.06 276.18
26.5 59 86.0 37.2 0.35 88.80 266.39 46.5 0.52 107.57 322.71
26.5 59 95.0 33.7 0.35 98.09 294.26 42.1 0.52 118.83 356.48
29.5 53 105.0 30.5 0.31 97.39 292.16 38.1 0.47 117.98 353.93
29.5 53 133.0 24.1 0.31 123.36 370.07 30.1 0.47 149.44 448.32
29.5 53 172.0 18.6 0.31 159.53 478.59 23.3 0.47 193.26 579.78
29.5 53 201.0 15.9 0.31 186.43 559.28 19.9 0.47 225.84 677.53
29.5 53 221.0 14.5 0.31 204.98 614.93 18.1 0.47 248.32 744.95
29.5 53 244.0 13.1 0.31 226.31 678.93 16.4 0.47 274.16 822.48
32.5 47.8 245.0 13.1 0.28 204.94 614.83 16.3 0.42 248.27 744.82
32.5 47.8 310.0 10.3 0.28 259.32 777.95 12.9 0.42 314.14 942.42
32.5 47.8 401.0 8.0 0.28 335.44 1006.31 10.0 0.42 406.36 1219.07
32.5 47.8 469.0 6.8 0.28 392.32 1176.96 8.5 0.42 475.27 1425.80
32.5 47.8 516.0 6.2 0.28 431.63 1294.90 7.8 0.42 522.89 1568.68
32.5 47.8 569.0 5.6 0.28 475.97 1427.91 7.0 0.42 576.60 1729.81
32.5 47.8 627.0 5.1 0.28 524.49 1573.46 6.4 0.42 635.38 1906.13
32.5 43 1093.0 2.9 0.25 822.48 2467.45 3.7 0.38 996.38 2500.00
32.5 43 1205.0 2.7 0.25 906.76 2500.00 3.3 0.38 1098.48 2500.00
32.5 43 1328.0 2.4 0.25 999.32 2500.00 3.0 0.38 1210.60 2500.00
32.5 43 1463.0 2.2 0.25 1100.91 2500.00 2.7 0.38 1333.67 2500.00
32.5 43 1613.0 2.0 0.25 1213.78 2500.00 2.5 0.38 1470.41 2500.00

37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm


37mm Gearbox 2 Watt 2nm Dc Spur Gear Motor 3v 6v 12v Low Rpm 2rpm 5rpm

Please let us know your requirements and we will provide you with transmission solutions.
