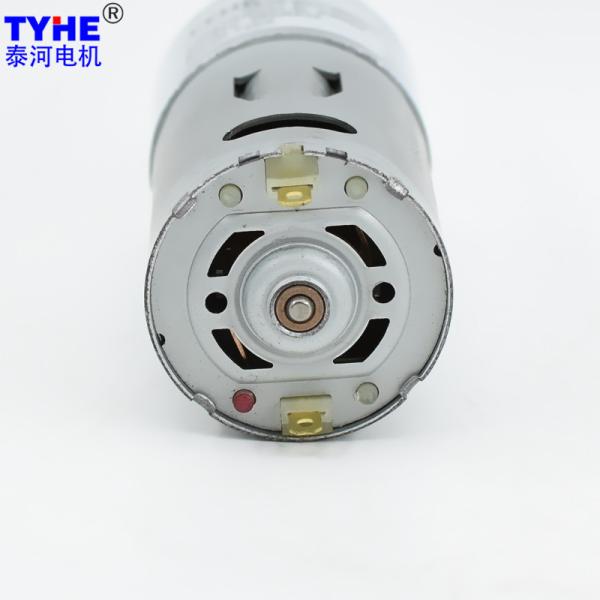

12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt
Specifications
Brand Name :
TYHE
Model Number :
TJZ37RGb
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
6V-24V
Speed :
customized
Torque :
2.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushed
Type :
DC Gear Motor
Usage :
Smart mop,Home Appliance
Keywords :
Custom Speed 37mm Gearbox 6v 12 V 24 Volt 12v 1000rpm 100 Rpm High Torque 2.5nm 25kgcm 12w 15 Watt Small Dc Geared Motor
Description

Custom Speed 37mm Gearbox 6v 12 V 24 Volt 12v 1000rpm 100 Rpm High Torque 2.5nm 25kgcm 12w 15 Watt Small Dc Geared Motor

Products Description

Custom Speed 37mm Gearbox 6v 24 Volt 12v 1000rpm 100 Rpm High Torque 2.5nm 25kgcm 12w 15 Watt Small Dc Geared Motor

2D drawing

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37RGb φ37mm RS545 6mm-D cut 305g

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS545 6 3200 280 2560 0.81 11.20 3.00 61.65 33.60 4.70
RS545 12 2000 70 1600 0.20 8.95 1.50 63.54 26.85 1.10
RS545 24 6000 160 4800 0.60 17.50 8.80 61.25 52.50 4.30
RS545 24 8300 200 6640 0.88 19.30 13.42 63.90 57.90 6.90
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-3200RPM Input 12V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 556.5 2.43 41.73 125.19 347.8 1.21 33.35 100.04
22.5 81 5.9 433.9 2.43 53.52 160.57 271.2 1.21 42.77 128.32
22.5 73 8.4 304.8 2.19 68.68 206.04 190.5 1.09 54.88 164.64
22.5 73 10.6 241.5 2.19 86.67 260.00 150.9 1.09 69.26 207.77
22.5 73 13.5 189.6 2.19 110.38 331.13 118.5 1.09 88.20 264.61
24.5 65.6 19.3 132.6 1.97 141.80 425.40 82.9 0.98 113.31 339.94
24.5 65.6 24.4 104.9 1.97 179.27 537.82 65.6 0.98 143.26 429.77
24.5 65.6 31.6 81.0 1.97 232.17 696.51 50.6 0.98 185.53 556.59
26.5 59 45.0 56.9 1.77 297.36 892.08 35.6 0.88 237.62 712.87
26.5 59 57.0 44.9 1.77 376.66 1129.97 28.1 0.88 300.99 902.97
26.5 59 73.6 34.8 1.77 486.35 1459.05 21.7 0.88 388.64 1165.93
29.5 53 105.0 24.4 1.59 623.28 1869.84 15.2 0.79 498.07 1494.20
29.5 53 133.0 19.2 1.59 789.49 2368.46 12.0 0.79 630.89 1892.66
29.5 53 172.0 14.9 1.59 1020.99 2500.00 9.3 0.79 815.88 2447.65
32.5 47.8 245.0 10.4 1.44 1311.63 2500.00 6.5 0.72 1048.13 2500.00
32.5 47.8 310.0 8.3 1.44 1659.62 2500.00 5.2 0.72 1326.21 2500.00
32.5 47.8 401.0 6.4 1.44 2146.79 2500.00 4.0 0.72 1715.52 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-6000RPM Input 24V-8300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1043.5 7.12 65.21 195.62 1443.5 10.87 71.91 215.74
22.5 81 5.9 813.6 7.12 83.63 250.90 1125.4 10.87 92.23 276.70
22.5 73 8.4 571.4 6.42 107.31 321.93 790.5 9.80 118.35 355.04
22.5 73 10.6 452.8 6.42 135.42 406.25 626.4 9.80 149.34 448.03
22.5 73 13.5 355.6 6.42 172.46 517.39 491.9 9.80 190.20 570.60
24.5 65.6 19.3 248.7 5.77 221.56 664.69 344.0 8.80 244.35 733.06
24.5 65.6 24.4 196.7 5.77 280.11 840.34 272.1 8.80 308.92 926.77
24.5 65.6 31.6 151.9 5.77 362.77 1088.30 210.1 8.80 400.08 1200.24
26.5 59 45.0 106.7 5.19 464.63 1393.88 147.6 7.92 512.42 1537.25
26.5 59 57.0 84.2 5.19 588.53 1765.58 116.5 7.92 649.06 1947.18
26.5 59 73.6 65.2 5.19 759.92 2279.76 90.2 7.92 838.08 2500.00
29.5 53 105.0 45.7 4.66 973.88 2500.00 63.2 7.11 1074.05 2500.00
29.5 53 133.0 36.1 4.66 1233.58 2500.00 49.9 7.11 1360.46 2500.00
29.5 53 172.0 27.9 4.66 1595.30 2500.00 38.6 7.11 1759.39 2500.00
32.5 47.8 245.0 19.6 4.20 2049.43 2500.00 27.1 6.41 2260.22 2500.00
32.5 47.8 310.0 15.5 4.20 2500.00 2500.00 21.4 6.41 2500.00 2500.00
32.5 47.8 401.0 12.0 4.20 2500.00 2500.00 16.6 6.41 2500.00 2500.00

12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt


12v High Torque Dc Geared Motor 1000 Rpm 100 Rpm 2.5nm 12w 15 Watt

Please let us know your requirements and we will provide you with transmission solutions.
