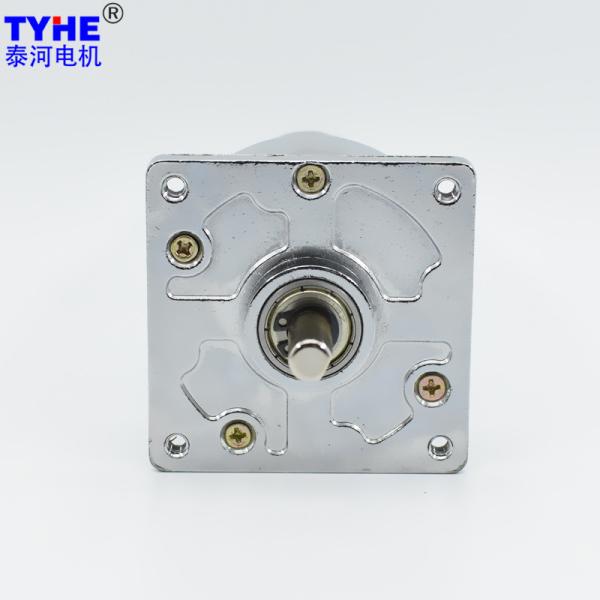

60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm
Specifications
Brand Name :
TYHE
Model Number :
TJZ60FG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
φ60mm
Voltage :
6-24V or Customized
Speed :
Customized
Torque :
10N.m
Gear material :
steel gear
Commutation :
brushes brush
Type :
Gear Motor, mini Motor
Usage :
Surgical robot,laboratory automation
Keywords :
Speed custom 60mm gearbox 12 v 24v 15w 20 watt 10 rpm 120rpm 30rpm 5nm 60kgcm rs-555sh brushes dc spur gear motor for rotisserie
Description

Products Description

Speed custom 60mm gearbox 12 v 24v 15w 20 watt 10 rpm 120rpm 30rpm 5nm 60kgcm rs-555sh brushes dc spur gear motor for rotisserie

Model End cover dimensions Motor type Regular Shaft Weight
TJZ60FG 60*60mm RS555 8mm-D cut 600g

2D drawing

60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm


60mm Gearbox 12V 24v Rs-555sh Dc Spur Gear Motor For Rotisserie 10Rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 4500 150 3600 0.69 13.50 5.09 61.31 40.50 5.60
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 24 6500 170 5200 0.68 19.00 10.35 63.39 57.00 5.10
RS555 24 7000 190 5600 0.87 22.20 13.02 62.47 66.60 7.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 620.7 4.12 63.42 190.27 689.7 5.70 78.93 236.78
28.5 81 6.8 529.4 4.12 74.36 223.07 588.2 5.70 92.53 277.60
28.5 81 7.9 455.7 4.12 86.39 259.16 506.3 5.70 107.50 322.51
28.5 81 8.8 409.1 4.12 96.23 288.68 454.5 5.70 119.75 359.25
28.5 81 9.8 367.3 4.12 107.16 321.49 408.2 5.70 133.36 400.08
28.5 81 10.5 342.9 4.12 114.82 344.45 381.0 5.70 142.88 428.65
28.5 81 11.6 310.3 4.12 126.85 380.54 344.8 5.70 157.85 473.56
33.5 73 18.6 193.5 3.71 183.30 549.91 215.1 5.14 228.11 684.33
33.5 73 24.0 150.0 3.71 236.52 709.56 166.7 5.14 294.34 883.01
33.5 73 28.0 128.6 3.71 275.94 827.82 142.9 5.14 343.39 1030.18
33.5 73 33.6 107.1 3.71 331.13 993.38 119.0 5.14 412.07 1236.21
36 65.6 60.0 60.0 3.34 531.36 1594.08 66.7 4.62 661.25 1983.74
36 65.6 71.0 50.7 3.34 628.78 1886.33 56.3 4.62 782.48 2347.43
36 65.6 83.0 43.4 3.34 735.05 2205.14 48.2 4.62 914.73 2744.18
36 65.6 91.0 39.6 3.34 805.90 2417.69 44.0 4.62 1002.89 3008.68
36 65.6 100.0 36.0 3.34 885.60 2656.80 40.0 4.62 1102.08 3306.24
36 65.6 108.0 33.3 3.34 956.45 2869.34 37.0 4.62 1190.25 3570.74
36 65.6 118.0 30.5 3.34 1045.01 3135.02 33.9 4.62 1300.45 3901.36
40 59 191.0 18.8 3.00 1521.32 4563.95 20.9 4.15 1893.19 5679.58
40 59 226.0 15.9 3.00 1800.09 5400.27 17.7 4.15 2240.11 6720.34
40 59 265.0 13.6 3.00 2110.73 6332.18 15.1 4.15 2626.68 7880.04
40 59 288.0 12.5 3.00 2293.92 6881.76 13.9 4.15 2854.66 8563.97
40 59 345.0 10.4 3.00 2747.93 8243.78 11.6 4.15 3419.64 10258.92
40 59 379.0 9.5 3.00 3018.74 9056.21 10.6 4.15 3756.65 11269.94
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-6500RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 896.6 8.38 89.26 267.79 965.5 10.54 104.30 312.89
28.5 81 6.8 764.7 8.38 104.65 313.96 823.5 10.54 122.28 366.83
28.5 81 7.9 658.2 8.38 121.58 364.74 708.9 10.54 142.06 426.17
28.5 81 8.8 590.9 8.38 135.43 406.30 636.4 10.54 158.24 474.72
28.5 81 9.8 530.6 8.38 150.82 452.47 571.4 10.54 176.22 528.67
28.5 81 10.5 495.2 8.38 161.60 484.79 533.3 10.54 188.81 566.43
28.5 81 11.6 448.3 8.38 178.52 535.57 482.8 10.54 208.59 625.77
33.5 73 18.6 279.6 7.55 257.98 773.95 301.1 9.50 301.43 904.29
33.5 73 24.0 216.7 7.55 332.88 998.64 233.3 9.50 388.94 1166.83
33.5 73 28.0 185.7 7.55 388.36 1165.08 200.0 9.50 453.77 1361.30
33.5 73 33.6 154.8 7.55 466.03 1398.10 166.7 9.50 544.52 1633.56
36 65.6 60.0 86.7 6.79 747.84 2243.52 93.3 8.54 873.79 2621.38
36 65.6 71.0 73.2 6.79 884.94 2654.83 78.9 8.54 1033.99 3101.96
36 65.6 83.0 62.7 6.79 1034.51 3103.54 67.5 8.54 1208.75 3626.24
36 65.6 91.0 57.1 6.79 1134.22 3402.67 61.5 8.54 1325.25 3975.75
36 65.6 100.0 52.0 6.79 1246.40 3739.20 56.0 8.54 1456.32 4368.96
36 65.6 108.0 48.1 6.79 1346.11 4038.34 51.9 8.54 1572.83 4718.48
36 65.6 118.0 44.1 6.79 1470.75 4412.26 47.5 8.54 1718.46 5155.37
40 59 191.0 27.2 6.10 2141.11 6423.33 29.3 7.68 2501.72 7505.15
40 59 226.0 23.0 6.10 2533.46 7600.38 24.8 7.68 2960.15 8880.44
40 59 265.0 19.6 6.10 2970.65 8911.95 21.1 7.68 3470.97 10412.91
40 59 288.0 18.1 6.10 3228.48 9685.44 19.4 7.68 3772.22 11316.67
40 59 345.0 15.1 6.10 3867.45 11602.35 16.2 7.68 4518.81 13556.43
40 59 379.0 13.7 6.10 4248.59 12745.77 14.8 7.68 4964.14 14892.43

Please let us know your requirements and we will provide you with transmission solutions.

Company Profile

WenZhou TYHE Motor Co.,ltd. was established in May, 2010 and is located in WenZhou, China. TYHE covers an area of 3500㎡. And we have excellent teams who focus on R&D, QC and company operation.

  1. 11 years experiences in dc gear motor industry.
  2. Accept OEM or ODM orders.
  3. 5 days lead time for samples.
  4. Monthly capacity is ≥500000pcs.
  5. Warranty: one year.
  6. 10 R&D engineers offer professional solutions.
  7. Fast delivery time base on different quantities.
  8. CE, ROHS and ISO9001 certificated.
