Specifications
Brand Name :
TYHE
Model Number :
TJZ37FH
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
1.5V 6V 12V 24V customized
Speed :
10rmp-1500rmp or customized
Torque :
2.53N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush
Type :
Gear Motor, DC Micro Motor
Usage :
Auto cooker
Keywords :
Custom rpm specifications 37mm 1.5nm 12v 24v 3w 4 watt 10kgf 70rpm 120rpm micro dc gear reduction motor for smart home
Description

Custom Rpm Specifications 37mm 1.5nm 12v 24v 3w 4 Watt 10kgf 70rpm 120rpm Micro Dc Gear Reduction Motor For Smart Home

Products Description

Custom rpm specifications 37mm 1.5nm 12v 24v 3w 4 watt 10kgf 70rpm 120rpm micro dc gear reduction motor for smart home

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37FH φ37mm 32-C 6mm-D cut 170g


70rpm 120rpm Micro Dc Gear Reduction Motor For Smart Home 1.5nm 12v 24v 3w 4W

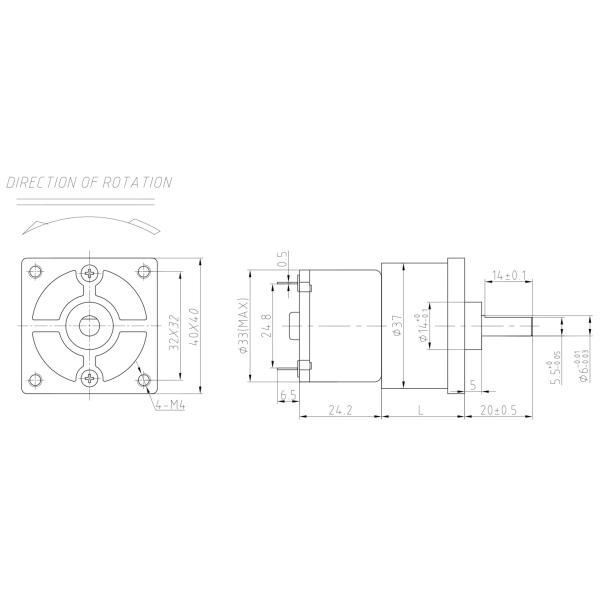

2D drawing

70rpm 120rpm Micro Dc Gear Reduction Motor For Smart Home 1.5nm 12v 24v 3w 4W

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3324 6 7000 80 5600 0.37 2.35 1.38 62.78 7.05 2.95
ZY3324 7 4000 30 3200 0.14 1.79 0.60 62.70 5.37 1.10
ZY3324 12 4000 18 3200 0.08 1.75 0.59 62.12 5.25 0.62
ZY3324 12 5000 32 4000 0.12 2.12 0.89 64.07 6.36 0.81
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-7000RPM Input 7V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1217.4 1.12 8.76 26.27 695.7 0.49 6.67 20.01
22.5 81 5.9 949.2 1.12 11.23 33.69 542.4 0.49 8.55 25.66
22.5 81 6.9 811.6 1.12 13.13 39.40 463.8 0.49 10.00 30.01
22.5 73 8.4 666.7 1.01 14.41 43.23 381.0 0.44 10.98 32.93
22.5 73 10.6 528.3 1.01 18.18 54.55 301.9 0.44 13.85 41.55
22.5 73 13.5 414.8 1.01 23.16 69.48 237.0 0.44 17.64 52.92
22.5 73 16.0 350.0 1.01 27.45 82.34 200.0 0.44 20.91 62.72
24.5 65.6 19.3 290.2 0.90 29.75 89.26 165.8 0.39 22.66 67.99
24.5 65.6 24.4 229.5 0.90 37.62 112.85 131.1 0.39 28.65 85.95
24.5 65.6 31.6 177.2 0.90 48.71 146.14 101.3 0.39 37.11 111.32
24.5 65.6 37.0 151.4 0.90 57.04 171.12 86.5 0.39 43.45 130.34
26.5 59 45.0 124.4 0.81 62.39 187.18 71.1 0.35 47.52 142.57
26.5 59 57.0 98.2 0.81 79.03 237.09 56.1 0.35 60.20 180.59
26.5 59 73.6 76.1 0.81 102.05 306.14 43.5 0.35 77.73 233.19
26.5 59 86.0 65.1 0.81 119.24 357.72 37.2 0.35 90.82 272.47
26.5 59 95.0 58.9 0.81 131.72 395.15 33.7 0.35 100.33 300.99
29.5 53 105.0 53.3 0.73 130.78 392.33 30.5 0.32 99.61 298.84
29.5 53 133.0 42.1 0.73 165.65 496.95 24.1 0.32 126.18 378.53
29.5 53 172.0 32.6 0.73 214.23 642.68 18.6 0.32 163.18 489.53
29.5 53 201.0 27.9 0.73 250.35 751.04 15.9 0.32 190.69 572.07
29.5 53 221.0 25.3 0.73 275.26 825.77 14.5 0.32 209.66 628.99
29.5 53 244.0 23.0 0.73 303.90 911.71 13.1 0.32 231.48 694.45
32.5 47.8 245.0 22.9 0.66 275.21 825.63 13.1 0.29 209.63 628.88
32.5 47.8 310.0 18.1 0.66 348.22 1044.67 10.3 0.29 265.24 795.73
32.5 47.8 401.0 14.0 0.66 450.44 1351.33 8.0 0.29 343.10 1029.31
32.5 47.8 469.0 11.9 0.66 526.83 1580.48 6.8 0.29 401.29 1203.86
32.5 47.8 516.0 10.9 0.66 579.62 1738.87 6.2 0.29 441.50 1324.50
32.5 47.8 569.0 9.8 0.66 639.16 1917.47 5.6 0.29 486.85 1460.54
32.5 47.8 627.0 8.9 0.66 704.31 2112.93 5.1 0.29 536.47 1609.42
32.5 43 1093.0 5.1 0.59 1104.48 2500.00 2.9 0.26 841.28 2500.00
32.5 43 1205.0 4.6 0.59 1217.65 2500.00 2.7 0.26 927.49 2500.00
32.5 43 1328.0 4.2 0.59 1341.94 2500.00 2.4 0.26 1022.16 2500.00
32.5 43 1463.0 3.8 0.59 1478.36 2500.00 2.2 0.26 1126.07 2500.00
32.5 43 1613.0 3.5 0.59 1629.94 2500.00 2.0 0.26 1241.53 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4000RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 695.7 0.47 6.52 19.56 869.6 0.72 7.90 23.70
22.5 81 5.9 542.4 0.47 8.36 25.09 678.0 0.72 10.13 30.39
22.5 81 6.9 463.8 0.47 9.78 29.34 579.7 0.72 11.85 35.55
22.5 73 8.4 381.0 0.43 10.73 32.19 476.2 0.65 13.00 39.00
22.5 73 10.6 301.9 0.43 13.54 40.62 377.4 0.65 16.40 49.21
22.5 73 13.5 237.0 0.43 17.25 51.74 296.3 0.65 20.89 62.68
22.5 73 16.0 200.0 0.43 20.44 61.32 250.0 0.65 24.76 74.28
24.5 65.6 19.3 165.8 0.38 22.16 66.47 207.3 0.58 26.84 80.52
24.5 65.6 24.4 131.1 0.38 28.01 84.03 163.9 0.58 33.93 101.80
24.5 65.6 31.6 101.3 0.38 36.28 108.83 126.6 0.58 43.95 131.84
24.5 65.6 37.0 86.5 0.38 42.48 127.43 108.1 0.58 51.46 154.37
26.5 59 45.0 71.1 0.35 46.46 139.39 88.9 0.52 56.29 168.86
26.5 59 57.0 56.1 0.35 58.85 176.56 70.2 0.52 71.30 213.89
26.5 59 73.6 43.5 0.35 75.99 227.98 54.3 0.52 92.06 276.18
26.5 59 86.0 37.2 0.35 88.80 266.39 46.5 0.52 107.57 322.71
26.5 59 95.0 33.7 0.35 98.09 294.26 42.1 0.52 118.83 356.48
29.5 53 105.0 30.5 0.31 97.39 292.16 38.1 0.47 117.98 353.93
29.5 53 133.0 24.1 0.31 123.36 370.07 30.1 0.47 149.44 448.32
29.5 53 172.0 18.6 0.31 159.53 478.59 23.3 0.47 193.26 579.78
29.5 53 201.0 15.9 0.31 186.43 559.28 19.9 0.47 225.84 677.53
29.5 53 221.0 14.5 0.31 204.98 614.93 18.1 0.47 248.32 744.95
29.5 53 244.0 13.1 0.31 226.31 678.93 16.4 0.47 274.16 822.48
32.5 47.8 245.0 13.1 0.28 204.94 614.83 16.3 0.42 248.27 744.82
32.5 47.8 310.0 10.3 0.28 259.32 777.95 12.9 0.42 314.14 942.42
32.5 47.8 401.0 8.0 0.28 335.44 1006.31 10.0 0.42 406.36 1219.07
32.5 47.8 469.0 6.8 0.28 392.32 1176.96 8.5 0.42 475.27 1425.80
32.5 47.8 516.0 6.2 0.28 431.63 1294.90 7.8 0.42 522.89 1568.68
32.5 47.8 569.0 5.6 0.28 475.97 1427.91 7.0 0.42 576.60 1729.81
32.5 47.8 627.0 5.1 0.28 524.49 1573.46 6.4 0.42 635.38 1906.13
32.5 43 1093.0 2.9 0.25 822.48 2467.45 3.7 0.38 996.38 2500.00
32.5 43 1205.0 2.7 0.25 906.76 2500.00 3.3 0.38 1098.48 2500.00
32.5 43 1328.0 2.4 0.25 999.32 2500.00 3.0 0.38 1210.60 2500.00
32.5 43 1463.0 2.2 0.25 1100.91 2500.00 2.7 0.38 1333.67 2500.00
32.5 43 1613.0 2.0 0.25 1213.78 2500.00 2.5 0.38 1470.41 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
