OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine
Specifications
Brand Name :
TYHE
Model Number :
TJZ37RH
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D37mm
Voltage :
3-24V customized
Speed :
10-1100rpm
Torque :
2.5N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Keywords :
Micro Od 37mm High Torqu 3v 5v 12v 18v 24v 15rpm 12rpm 10rpm 2nm 1.5nm Dc Gear Motor For Barbecue Machine
Description

Products Description

Micro Od 37mm High Torqu 3v 5v 12v 18v 24v 15rpm 12rpm 10rpm 2nm 1.5nm Dc Gear Motor For Barbecue Machine

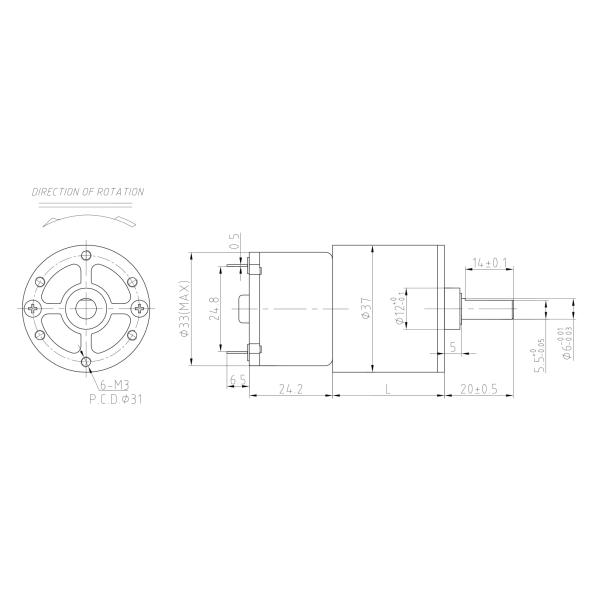

2D drawing

OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine


OD 37mm 3V 5V Micro DC Gear Motor 1.5nm 15rpm 12rpm For Barbecue Machine

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3324 6 7000 80 5600 0.37 2.35 1.38 62.78 7.05 2.95
ZY3324 7 4000 30 3200 0.14 1.79 0.60 62.70 5.37 1.10
ZY3324 12 4000 18 3200 0.08 1.75 0.59 62.12 5.25 0.62
ZY3324 12 5000 32 4000 0.12 2.12 0.89 64.07 6.36 0.81
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-7000RPM Input 7V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1217.4 1.12 8.76 26.27 695.7 0.49 6.67 20.01
22.5 81 5.9 949.2 1.12 11.23 33.69 542.4 0.49 8.55 25.66
22.5 81 6.9 811.6 1.12 13.13 39.40 463.8 0.49 10.00 30.01
22.5 73 8.4 666.7 1.01 14.41 43.23 381.0 0.44 10.98 32.93
22.5 73 10.6 528.3 1.01 18.18 54.55 301.9 0.44 13.85 41.55
22.5 73 13.5 414.8 1.01 23.16 69.48 237.0 0.44 17.64 52.92
22.5 73 16.0 350.0 1.01 27.45 82.34 200.0 0.44 20.91 62.72
24.5 65.6 19.3 290.2 0.90 29.75 89.26 165.8 0.39 22.66 67.99
24.5 65.6 24.4 229.5 0.90 37.62 112.85 131.1 0.39 28.65 85.95
24.5 65.6 31.6 177.2 0.90 48.71 146.14 101.3 0.39 37.11 111.32
24.5 65.6 37.0 151.4 0.90 57.04 171.12 86.5 0.39 43.45 130.34
26.5 59 45.0 124.4 0.81 62.39 187.18 71.1 0.35 47.52 142.57
26.5 59 57.0 98.2 0.81 79.03 237.09 56.1 0.35 60.20 180.59
26.5 59 73.6 76.1 0.81 102.05 306.14 43.5 0.35 77.73 233.19
26.5 59 86.0 65.1 0.81 119.24 357.72 37.2 0.35 90.82 272.47
26.5 59 95.0 58.9 0.81 131.72 395.15 33.7 0.35 100.33 300.99
29.5 53 105.0 53.3 0.73 130.78 392.33 30.5 0.32 99.61 298.84
29.5 53 133.0 42.1 0.73 165.65 496.95 24.1 0.32 126.18 378.53
29.5 53 172.0 32.6 0.73 214.23 642.68 18.6 0.32 163.18 489.53
29.5 53 201.0 27.9 0.73 250.35 751.04 15.9 0.32 190.69 572.07
29.5 53 221.0 25.3 0.73 275.26 825.77 14.5 0.32 209.66 628.99
29.5 53 244.0 23.0 0.73 303.90 911.71 13.1 0.32 231.48 694.45
32.5 47.8 245.0 22.9 0.66 275.21 825.63 13.1 0.29 209.63 628.88
32.5 47.8 310.0 18.1 0.66 348.22 1044.67 10.3 0.29 265.24 795.73
32.5 47.8 401.0 14.0 0.66 450.44 1351.33 8.0 0.29 343.10 1029.31
32.5 47.8 469.0 11.9 0.66 526.83 1580.48 6.8 0.29 401.29 1203.86
32.5 47.8 516.0 10.9 0.66 579.62 1738.87 6.2 0.29 441.50 1324.50
32.5 47.8 569.0 9.8 0.66 639.16 1917.47 5.6 0.29 486.85 1460.54
32.5 47.8 627.0 8.9 0.66 704.31 2112.93 5.1 0.29 536.47 1609.42
32.5 43 1093.0 5.1 0.59 1104.48 2500.00 2.9 0.26 841.28 2500.00
32.5 43 1205.0 4.6 0.59 1217.65 2500.00 2.7 0.26 927.49 2500.00
32.5 43 1328.0 4.2 0.59 1341.94 2500.00 2.4 0.26 1022.16 2500.00
32.5 43 1463.0 3.8 0.59 1478.36 2500.00 2.2 0.26 1126.07 2500.00
32.5 43 1613.0 3.5 0.59 1629.94 2500.00 2.0 0.26 1241.53 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4000RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 695.7 0.47 6.52 19.56 869.6 0.72 7.90 23.70
22.5 81 5.9 542.4 0.47 8.36 25.09 678.0 0.72 10.13 30.39
22.5 81 6.9 463.8 0.47 9.78 29.34 579.7 0.72 11.85 35.55
22.5 73 8.4 381.0 0.43 10.73 32.19 476.2 0.65 13.00 39.00
22.5 73 10.6 301.9 0.43 13.54 40.62 377.4 0.65 16.40 49.21
22.5 73 13.5 237.0 0.43 17.25 51.74 296.3 0.65 20.89 62.68
22.5 73 16.0 200.0 0.43 20.44 61.32 250.0 0.65 24.76 74.28
24.5 65.6 19.3 165.8 0.38 22.16 66.47 207.3 0.58 26.84 80.52
24.5 65.6 24.4 131.1 0.38 28.01 84.03 163.9 0.58 33.93 101.80
24.5 65.6 31.6 101.3 0.38 36.28 108.83 126.6 0.58 43.95 131.84
24.5 65.6 37.0 86.5 0.38 42.48 127.43 108.1 0.58 51.46 154.37
26.5 59 45.0 71.1 0.35 46.46 139.39 88.9 0.52 56.29 168.86
26.5 59 57.0 56.1 0.35 58.85 176.56 70.2 0.52 71.30 213.89
26.5 59 73.6 43.5 0.35 75.99 227.98 54.3 0.52 92.06 276.18
26.5 59 86.0 37.2 0.35 88.80 266.39 46.5 0.52 107.57 322.71
26.5 59 95.0 33.7 0.35 98.09 294.26 42.1 0.52 118.83 356.48
29.5 53 105.0 30.5 0.31 97.39 292.16 38.1 0.47 117.98 353.93
29.5 53 133.0 24.1 0.31 123.36 370.07 30.1 0.47 149.44 448.32
29.5 53 172.0 18.6 0.31 159.53 478.59 23.3 0.47 193.26 579.78
29.5 53 201.0 15.9 0.31 186.43 559.28 19.9 0.47 225.84 677.53
29.5 53 221.0 14.5 0.31 204.98 614.93 18.1 0.47 248.32 744.95
29.5 53 244.0 13.1 0.31 226.31 678.93 16.4 0.47 274.16 822.48
32.5 47.8 245.0 13.1 0.28 204.94 614.83 16.3 0.42 248.27 744.82
32.5 47.8 310.0 10.3 0.28 259.32 777.95 12.9 0.42 314.14 942.42
32.5 47.8 401.0 8.0 0.28 335.44 1006.31 10.0 0.42 406.36 1219.07
32.5 47.8 469.0 6.8 0.28 392.32 1176.96 8.5 0.42 475.27 1425.80
32.5 47.8 516.0 6.2 0.28 431.63 1294.90 7.8 0.42 522.89 1568.68
32.5 47.8 569.0 5.6 0.28 475.97 1427.91 7.0 0.42 576.60 1729.81
32.5 47.8 627.0 5.1 0.28 524.49 1573.46 6.4 0.42 635.38 1906.13
32.5 43 1093.0 2.9 0.25 822.48 2467.45 3.7 0.38 996.38 2500.00
32.5 43 1205.0 2.7 0.25 906.76 2500.00 3.3 0.38 1098.48 2500.00
32.5 43 1328.0 2.4 0.25 999.32 2500.00 3.0 0.38 1210.60 2500.00
32.5 43 1463.0 2.2 0.25 1100.91 2500.00 2.7 0.38 1333.67 2500.00
32.5 43 1613.0 2.0 0.25 1213.78 2500.00 2.5 0.38 1470.41 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
