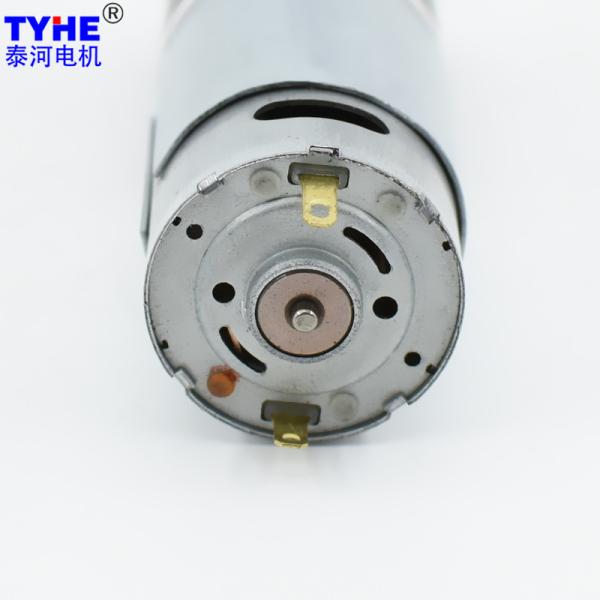

70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJX28RM
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
28mm diameter
Voltage :
3v~24v or customized
Speed :
1-1500rpm Customized
Torque :
5N.m
Gear material :
steel gear
Commutation :
brushes brush
Type :
DC Planetary Gear Motor,DC Mini Motor
Keywords :
Micro 28mm gearbox 12volt 24 v 18v 1400rpm 100rpm 70 rpm 10kg 20kg 30kg torque 5w 6 watt electric pm dc planetary gear motor
Description

Products Description

Micro 28mm gearbox 12volt 24 v 18v 1400rpm 100rpm 70 rpm 10kg 20kg 30kg torque 5w 6 watt electric pm dc planetary gear motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS395 12 4500 100 3600 0.29 5.90 2.22 63.55 17.70 1.70
RS395 12 7500 160 6000 0.62 7.30 4.59 62.15 21.90 4.50
RS395 24 5000 50 4000 0.17 6.30 2.64 64.68 18.90 1.14
RS395 24 5300 60 4240 0.20 6.70 2.97 62.49 20.10 1.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.2 90 3.7 973.0 2.00 19.65 58.94 1621.6 4.13 24.31 72.93
31.2 90 5.2 692.3 2.00 27.61 82.84 1153.8 4.13 34.16 102.49
40 81 13.7 262.8 1.80 65.47 196.42 438.0 3.71 81.01 243.02
40 81 19.2 187.5 1.80 91.76 275.27 312.5 3.71 113.53 340.59
40 81 26.9 133.8 1.80 128.56 385.67 223.0 3.71 159.06 477.18
40 81 35.0 102.9 1.80 167.27 501.80 171.4 3.71 206.96 620.87
48.8 73 51.0 70.6 1.62 219.66 658.97 117.6 3.35 271.78 815.34
48.8 73 71.0 50.7 1.62 305.80 917.39 84.5 3.35 378.36 1135.08
48.8 73 100.0 36.0 1.62 430.70 1292.10 60.0 3.35 532.90 1598.70
48.8 73 139.0 25.9 1.62 598.67 1796.02 43.2 3.35 740.73 2222.19
57.6 65.6 189.0 19.0 1.46 731.51 2194.52 31.7 3.01 905.08 2715.25
57.6 65.6 264.0 13.6 1.46 1021.79 3065.36 22.7 3.01 1264.24 3792.73
57.6 65.6 369.0 9.8 1.46 1428.18 4284.53 16.3 3.01 1767.07 5000.00
57.6 65.6 514.0 7.0 1.46 1989.39 5000.00 11.7 3.01 2461.44 5000.00
57.6 65.6 721.0 5.0 1.46 2790.56 5000.00 8.3 3.01 3452.72 5000.00
66.4 59 699.0 5.2 1.31 2433.22 5000.00 8.6 2.71 3010.59 5000.00
66.4 59 977.0 3.7 1.31 3400.94 5000.00 6.1 2.71 4207.94 5000.00
66.4 59 1367.0 2.6 1.31 4758.53 5000.00 4.4 2.71 5000.00 5000.00
66.4 59 1911.0 1.9 1.31 5000.00 5000.00 3.1 2.71 5000.00 5000.00
66.4 59 2672.0 1.3 1.31 5000.00 5000.00 2.2 2.71 5000.00 5000.00
66.4 59 3736.0 1.0 1.31 5000.00 5000.00 1.6 2.71 5000.00 5000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-5300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.2 90 3.7 1081.1 2.37 20.98 62.94 1145.9 2.68 22.31 66.93
31.2 90 5.2 769.2 2.37 29.48 88.45 815.4 2.68 31.36 94.07
40 81 13.7 292.0 2.14 69.91 209.73 309.5 2.41 74.35 223.05
40 81 19.2 208.3 2.14 97.98 293.93 220.8 2.41 104.20 312.60
40 81 26.9 148.7 2.14 137.27 411.81 157.6 2.41 145.99 437.96
40 81 35.0 114.3 2.14 178.61 535.82 121.1 2.41 189.95 569.84
48.8 73 51.0 78.4 1.93 234.55 703.65 83.1 2.17 249.44 748.32
48.8 73 71.0 56.3 1.93 326.53 979.59 59.7 2.17 347.26 1041.78
48.8 73 100.0 40.0 1.93 459.90 1379.70 42.4 2.17 489.10 1467.30
48.8 73 139.0 28.8 1.93 639.26 1917.78 30.5 2.17 679.85 2039.55
57.6 65.6 189.0 21.2 1.73 781.10 2343.30 22.4 1.95 830.69 2492.08
57.6 65.6 264.0 15.2 1.73 1091.06 3273.18 16.1 1.95 1160.33 3481.00
57.6 65.6 369.0 10.8 1.73 1525.00 4575.01 11.5 1.95 1621.83 4865.49
57.6 65.6 514.0 7.8 1.73 2124.26 5000.00 8.2 1.95 2259.13 5000.00
57.6 65.6 721.0 5.5 1.73 2979.75 5000.00 5.9 1.95 3168.94 5000.00
66.4 59 699.0 5.7 1.56 2598.18 5000.00 6.1 1.76 2763.15 5000.00
66.4 59 977.0 4.1 1.56 3631.51 5000.00 4.3 1.76 3862.08 5000.00
66.4 59 1367.0 2.9 1.56 5000.00 5000.00 3.1 1.76 5000.00 5000.00
66.4 59 1911.0 2.1 1.56 5000.00 5000.00 2.2 1.76 5000.00 5000.00
66.4 59 2672.0 1.5 1.56 5000.00 5000.00 1.6 1.76 5000.00 5000.00
66.4 59 3736.0 1.1 1.56 5000.00 5000.00 1.1 1.76 5000.00 5000.00

2D drawing

70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor


70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor

Please let us know your requirements and we will provide you with transmission solutions.

70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor

70Rpm Micro Planetary Gear Motor 5 Watt Electric Gear Motor
