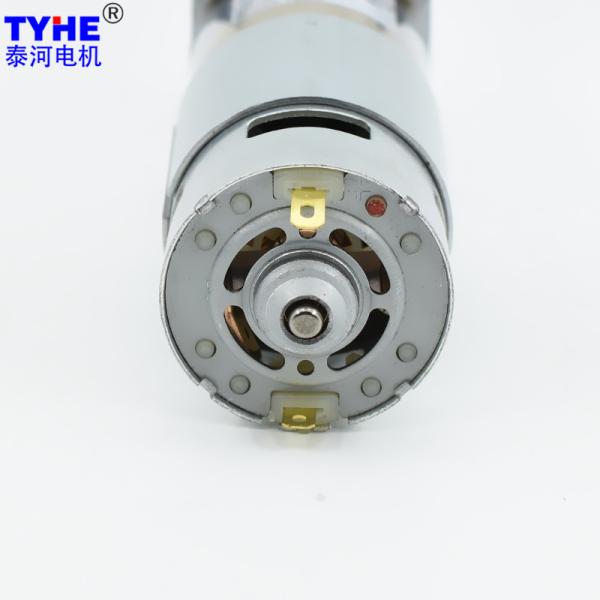

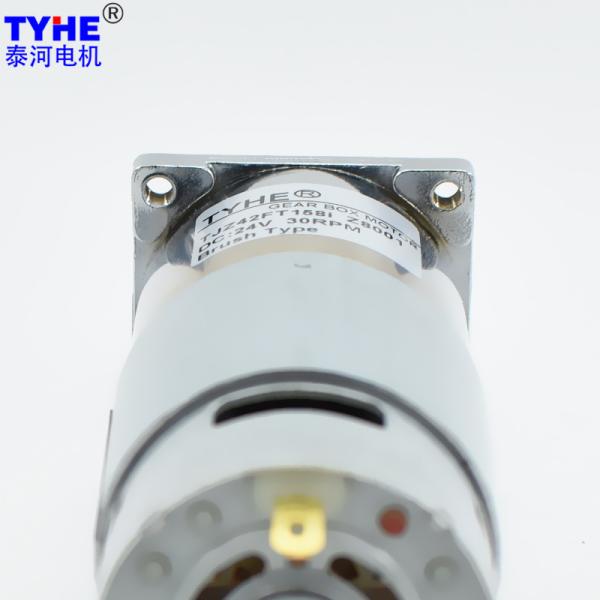

CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
Specifications
Brand Name :
TYHE
Model Number :
TJZ42FT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm size
Voltage :
12-24V customized
Speed :
10-1200rpm
Torque :
5N.m
Gear material :
45# Steel gears
Commutation :
brushed
Type :
DC Gear Motor, Micro Motor
Keywords :
Wholesale 42mm Diameter 12v 24v 30w 50kg Cm Dc PMDC Gear Motor For Grill Machine
Description

Products Description

Wholesale 42mm Diameter 12v 24v 30w 50kg Cm Dc PMDC Gear Motor For Grill Machine

2D drawing

CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine


CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1600.0 10.72 63.99 191.97 2240.0 18.05 76.95 230.85
25.7 81 3.1 1290.3 10.72 79.35 238.04 1806.5 18.05 95.42 286.25
25.7 81 3.8 1052.6 10.72 97.26 291.79 1473.7 18.05 116.96 350.89
25.7 81 4.8 833.3 10.72 122.86 368.58 1166.7 18.05 147.74 443.23
25.7 81 6.1 655.7 10.72 156.14 468.41 918.0 18.05 187.76 563.27
25.7 73 6.8 588.2 9.66 156.86 470.59 823.5 16.27 188.63 565.90
25.7 73 8.3 481.9 9.66 191.46 574.39 674.7 16.27 230.24 690.73
25.7 73 10.3 388.3 9.66 237.60 712.80 543.7 16.27 285.72 857.17
25.7 73 12.8 312.5 9.66 295.27 885.81 437.5 16.27 355.07 1065.22
25.7 73 16.4 243.9 9.66 378.32 1134.95 341.5 16.27 454.94 1364.81
25.7 65.6 18.2 219.8 8.68 377.28 1131.84 307.7 14.62 453.69 1361.07
25.7 65.6 22.2 180.2 8.68 460.20 1380.59 252.3 14.62 553.40 1660.20
25.7 65.6 27.4 146.0 8.68 567.99 1703.97 204.4 14.62 683.03 2049.08
25.7 65.6 34.2 117.0 8.68 708.95 2126.86 163.7 14.62 852.54 2557.61
25.7 65.6 43.8 91.3 8.68 907.96 2723.87 127.9 14.62 1091.85 3275.54
29.5 59 48.6 82.3 7.81 906.10 2718.30 115.2 13.15 1089.61 3268.84
29.5 59 59.3 67.5 7.81 1105.59 3316.77 94.4 13.15 1329.51 3988.52
29.5 59 73.0 54.8 7.81 1361.01 4083.04 76.7 13.15 1636.66 4909.98
29.5 59 91.2 43.9 7.81 1700.33 5000.00 61.4 13.15 2044.70 5000.00
29.5 59 117.0 34.2 7.81 2181.35 5000.00 47.9 13.15 2623.14 5000.00
29.5 59 120.0 33.3 7.81 2237.28 5000.00 46.7 13.15 2690.40 5000.00
32.7 53 130.0 30.8 7.01 2177.24 5000.00 43.1 11.81 2618.20 5000.00
32.7 53 158.0 25.3 7.01 2646.18 5000.00 35.4 11.81 3182.12 5000.00
32.7 53 195.0 20.5 7.01 3265.86 5000.00 28.7 11.81 3927.30 5000.00
32.7 53 243.0 16.5 7.01 4069.76 5000.00 23.0 11.81 4894.02 5000.00
32.7 53 311.0 12.9 7.01 5000.00 5000.00 18.0 11.81 5000.00 5000.00
32.7 53 323.0 12.4 7.01 5000.00 5000.00 17.3 11.81 5000.00 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1120.0 7.01 59.74 179.21 1600.0 10.52 62.78 188.33
25.7 81 3.1 903.2 7.01 74.07 222.22 1290.3 10.52 77.84 233.52
25.7 81 3.8 736.8 7.01 90.80 272.40 1052.6 10.52 95.42 286.25
25.7 81 4.8 583.3 7.01 114.70 344.09 833.3 10.52 120.53 361.58
25.7 81 6.1 459.0 7.01 145.76 437.28 655.7 10.52 153.17 459.51
25.7 73 6.8 411.8 6.31 146.44 439.31 588.2 9.48 153.88 461.65
25.7 73 8.3 337.3 6.31 178.74 536.22 481.9 9.48 187.83 563.49
25.7 73 10.3 271.8 6.31 221.81 665.43 388.3 9.48 233.09 699.27
25.7 73 12.8 218.8 6.31 275.65 826.94 312.5 9.48 289.66 868.99
25.7 73 16.4 170.7 6.31 353.17 1059.52 243.9 9.48 371.13 1113.40
25.7 65.6 18.2 153.8 5.67 352.21 1056.62 219.8 8.52 370.12 1110.35
25.7 65.6 22.2 126.1 5.67 429.61 1288.84 180.2 8.52 451.46 1354.38
25.7 65.6 27.4 102.2 5.67 530.24 1590.73 146.0 8.52 557.21 1671.62
25.7 65.6 34.2 81.9 5.67 661.84 1985.52 117.0 8.52 695.49 2086.47
25.7 65.6 43.8 63.9 5.67 847.62 2542.85 91.3 8.52 890.72 2672.15
29.5 59 48.6 57.6 5.10 845.88 2537.65 82.3 7.66 888.89 2666.68
29.5 59 59.3 47.2 5.10 1032.12 3096.35 67.5 7.66 1084.60 3253.79
29.5 59 73.0 38.4 5.10 1270.57 3811.70 54.8 7.66 1335.17 4005.51
29.5 59 91.2 30.7 5.10 1587.34 4762.01 43.9 7.66 1668.05 5000.00
29.5 59 117.0 23.9 5.10 2036.39 5000.00 34.2 7.66 2139.93 5000.00
29.5 59 120.0 23.3 5.10 2088.60 5000.00 33.3 7.66 2194.80 5000.00
32.7 53 130.0 21.5 4.58 2032.55 5000.00 30.8 6.88 2135.90 5000.00
32.7 53 158.0 17.7 4.58 2470.33 5000.00 25.3 6.88 2595.94 5000.00
32.7 53 195.0 14.4 4.58 3048.83 5000.00 20.5 6.88 3203.85 5000.00
32.7 53 243.0 11.5 4.58 3799.31 5000.00 16.5 6.88 3992.49 5000.00
32.7 53 311.0 9.0 4.58 4862.49 5000.00 12.9 6.88 5000.00 5000.00
32.7 53 323.0 8.7 4.58 5000.00 5000.00 12.4 6.88 5000.00 5000.00

Please let us know your requirements and we will provide you with transmission solutions.

CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine

CE ROHS 30W 24V PMDC Motor 50 Kg Cm DC Motor For Grill Machine
