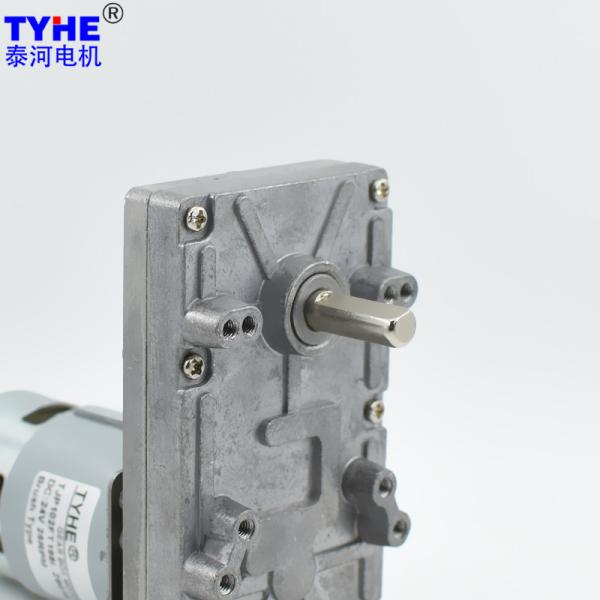

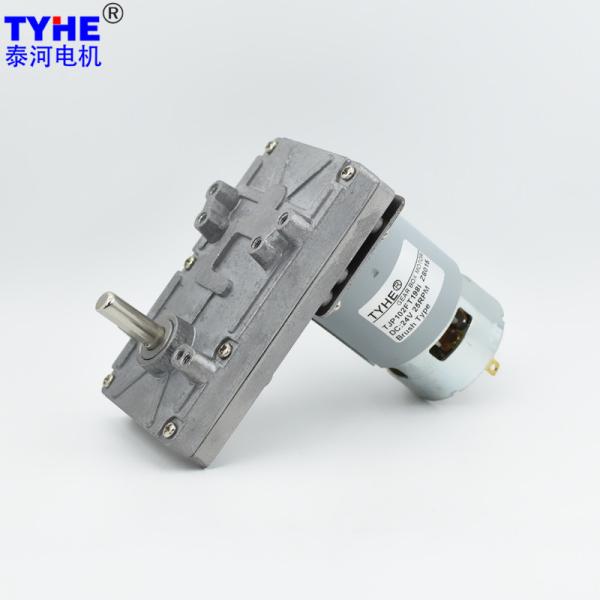

Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
Specifications
Brand Name :
TYHE
Model Number :
TJP102FT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
102*60mm
Voltage :
6-24V
Speed :
Customized
Torque :
15N.m
Gear material :
Steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
Valve
Keywords :
Full #45 Steel Gear 102*60mm size high torque low speed 12v 24v Dc flat Geared Motor For Intelligent Valve
Description

Products Description

Full #45 Steel Gear 102*60mm Size High Torque Low Speed 12v 24v Dc Geared Motor For Intelligent Valve

2D drawing

Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001


Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 173.9 9.66 530.56 1591.69 243.5 16.27 638.02 1914.06
102 73 31.5 127.0 9.66 726.64 2179.93 177.8 16.27 873.81 2621.43
102 73 57.0 70.2 9.66 1314.88 3944.63 98.2 16.27 1581.18 4743.54
102 73 80.0 50.0 9.66 1845.44 5536.32 70.0 16.27 2219.20 6657.60
102 73 108.0 37.0 9.66 2491.34 7474.03 51.9 16.27 2995.92 8987.76
102 73 127.0 31.5 9.66 2929.64 8788.91 44.1 16.27 3522.98 10568.94
102 59 198.0 20.2 7.81 3691.51 11074.54 28.3 13.15 4439.16 13317.48
102 59 234.0 17.1 7.81 4362.70 13088.09 23.9 13.15 5246.28 15000.00
102 59 272.0 14.7 7.81 5071.17 15000.00 20.6 13.15 6098.24 15000.00
102 59 322.0 12.4 7.81 6003.37 15000.00 17.4 13.15 7219.24 15000.00
102 59 374.0 10.7 7.81 6972.86 15000.00 15.0 13.15 8385.08 15000.00
102 59 443.0 9.0 7.81 8259.29 15000.00 12.6 13.15 9932.06 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 121.7 6.31 495.31 1485.92 173.9 9.48 520.49 1561.47
102 73 31.5 88.9 6.31 678.35 2035.06 127.0 9.48 712.85 2138.54
102 73 57.0 49.1 6.31 1227.50 3682.49 70.2 9.48 1289.91 3869.73
102 73 80.0 35.0 6.31 1722.80 5168.40 50.0 9.48 1810.40 5431.20
102 73 108.0 25.9 6.31 2325.78 6977.34 37.0 9.48 2444.04 7332.12
102 73 127.0 22.0 6.31 2734.95 8204.84 31.5 9.48 2874.01 8622.03
102 59 198.0 14.1 5.10 3446.19 10338.57 20.2 7.66 3621.42 10864.26
102 59 234.0 12.0 5.10 4072.77 12218.31 17.1 7.66 4279.86 12839.58
102 59 272.0 10.3 5.10 4734.16 14202.48 14.7 7.66 4974.88 14924.64
102 59 322.0 8.7 5.10 5604.41 15000.00 12.4 7.66 5889.38 15000.00
102 59 374.0 7.5 5.10 6509.47 15000.00 10.7 7.66 6840.46 15000.00
102 59 443.0 6.3 5.10 7710.42 15000.00 9.0 7.66 8102.47 15000.00

Please let us know your requirements and we will provide you with transmission solutions.

Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001

Steel Gear 102*60mm 24V DC Motor High Torque Low Speed Flat Gear Motor ISO9001
