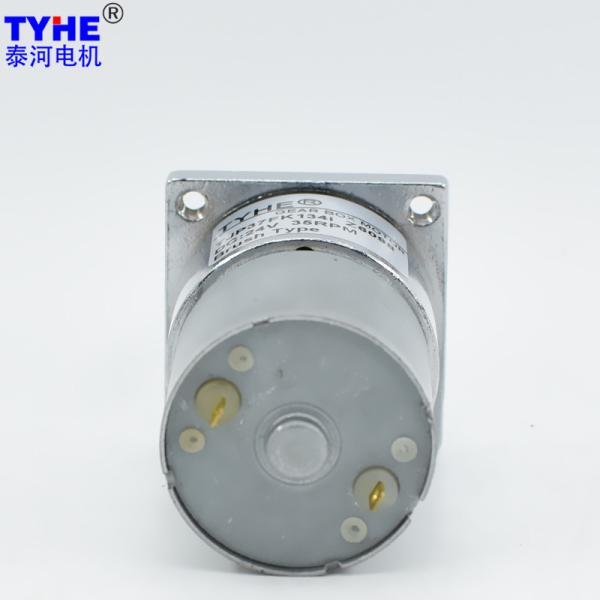

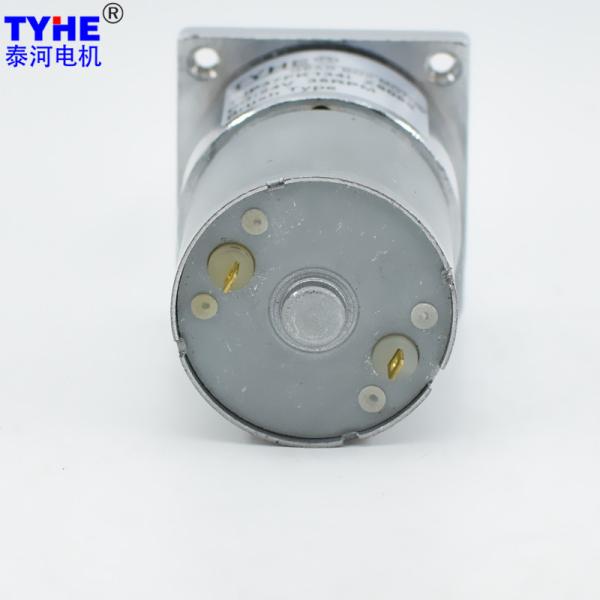

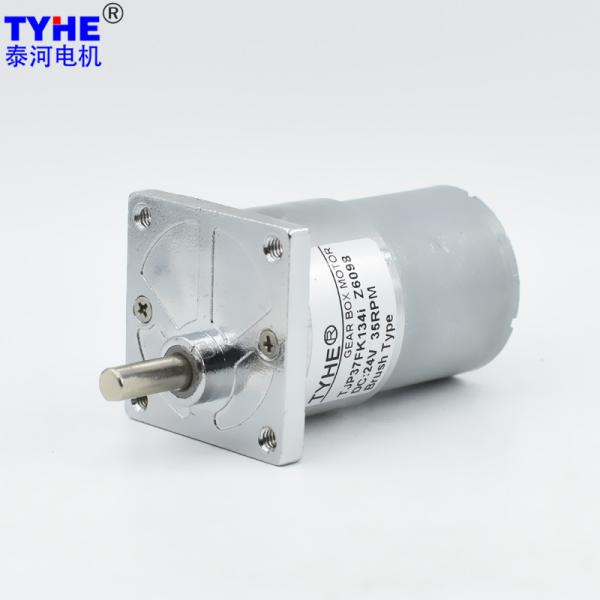

Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
Specifications
Brand Name :
TYHE
Model Number :
TJP37FK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm gearbox
Voltage :
6-24V custom
Speed :
1-1000rpm
Torque :
1.8N.m
Gear material :
Powder metallurgy, Steel gears
Commutation :
brushes
Type :
DC Gear Motor, Micro Motor
Keywords :
High Torque Gear Re 5kgcm 2nm 5v 12v 24v 150 Rpm Micro Dc Geared Motor For Garlic Masher
Description

Products Description

High Torque Gear Re 5kgcm 2nm 5v 12v 24v 150 Rpm Micro Dc Geared Motor For Garlic Masher

2D drawing

Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher


Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.23 3.81 1.76 62.69 11.43 1.72
ZY3530 12 7300 67 5840 0.36 4.35 2.66 61.78 13.05 3.10
ZY3530 24 5200 22 4160 0.11 4.01 1.75 63.47 12.03 0.98
ZY3530 24 7300 35 5840 0.19 4.47 2.73 61.29 13.41 1.60
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 536.6 1.42 25.31 75.92 712.2 2.15 28.89 86.68
25.5 81 9.5 463.2 1.42 29.32 87.95 614.7 2.15 33.47 100.42
25.5 73 14.7 299.3 1.28 40.89 122.66 397.3 1.94 46.68 140.04
25.5 73 22.3 197.3 1.28 62.02 186.07 261.9 1.94 70.81 212.44
25.5 73 24.5 179.6 1.28 68.14 204.43 238.4 1.94 77.80 233.40
27.5 65.6 27.2 161.8 1.15 67.98 203.95 214.7 1.75 77.62 232.85
27.5 65.6 34.4 127.9 1.15 85.98 257.93 169.8 1.75 98.16 294.49
27.5 65.6 44.5 98.9 1.15 111.22 333.66 131.2 1.75 126.99 380.96
27.5 65.6 52.0 84.6 1.15 129.97 389.90 112.3 1.75 148.39 445.16
27.5 65.6 57.0 77.2 1.15 142.46 427.39 102.5 1.75 162.66 487.97
27.5 65.6 63.0 69.8 1.15 157.46 472.38 92.7 1.75 179.78 539.33
29.5 59 80.3 54.8 1.04 180.51 541.52 72.7 1.57 206.09 618.27
29.5 59 104.0 42.3 1.04 233.78 701.34 56.2 1.57 266.92 800.75
29.5 59 121.0 36.4 1.04 272.00 815.99 48.3 1.57 310.55 931.64
29.5 59 134.0 32.8 1.04 301.22 903.66 43.6 1.57 343.91 1031.73
29.5 59 147.0 29.9 1.04 330.44 991.32 39.7 1.57 377.28 1131.83
29.5 59 162.0 27.2 1.04 364.16 1092.48 36.0 1.57 415.77 1247.32
32.5 53 187.0 23.5 0.93 377.61 1132.83 31.2 1.41 431.13 1293.39
32.5 53 242.0 18.2 0.93 488.67 1466.01 24.1 1.41 557.93 1673.79
32.5 53 283.0 15.5 0.93 571.46 1714.39 20.6 1.41 652.46 1957.37
32.5 53 312.0 14.1 0.93 630.02 1890.06 18.7 1.41 719.32 2157.95
32.5 53 344.0 12.8 0.93 694.64 2083.92 17.0 1.41 793.09 2379.28
32.5 53 379.0 11.6 0.93 765.31 2295.94 15.4 1.41 873.78 2500.00
32.5 53 417.0 10.6 0.93 842.05 2500.00 14.0 1.41 961.39 2500.00
35.5 47.8 437.0 10.1 0.84 795.86 2387.57 13.4 1.27 908.65 2500.00
35.5 47.8 565.0 7.8 0.84 1028.97 2500.00 10.3 1.27 1174.80 2500.00
35.5 47.8 660.0 6.7 0.84 1201.98 2500.00 8.8 1.27 1372.34 2500.00
35.5 47.8 728.0 6.0 0.84 1325.82 2500.00 8.0 1.27 1513.73 2500.00
35.5 47.8 802.0 5.5 0.84 1460.59 2500.00 7.3 1.27 1667.60 2500.00
35.5 47.8 884.0 5.0 0.84 1609.92 2500.00 6.6 1.27 1838.10 2500.00
35.5 47.8 974.0 4.5 0.84 1773.83 2500.00 6.0 1.27 2025.24 2500.00
35.5 47.8 1073.0 4.1 0.84 1954.13 2500.00 5.4 1.27 2231.09 2500.00
32.5 43 1540.0 2.9 0.75 2500.00 2500.00 3.8 1.14 2500.00 2500.00
32.5 43 1698.0 2.6 0.75 2500.00 2500.00 3.4 1.14 2500.00 2500.00
32.5 43 1871.0 2.4 0.75 2500.00 2500.00 3.1 1.14 2500.00 2500.00
32.5 43 2062.0 2.1 0.75 2500.00 2500.00 2.8 1.14 2500.00 2500.00
32.5 43 2272.0 1.9 0.75 2500.00 2500.00 2.6 1.14 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5200RPM Input 24V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 507.3 1.41 26.63 79.90 712.2 2.21 29.69 89.07
25.5 81 9.5 437.9 1.41 30.86 92.57 614.7 2.21 34.40 103.19
25.5 73 14.7 283.0 1.28 43.03 129.09 397.3 2.00 47.97 143.90
25.5 73 22.3 186.5 1.28 65.28 195.84 261.9 2.00 72.77 218.30
25.5 73 24.5 169.8 1.28 71.72 215.16 238.4 2.00 79.95 239.84
27.5 65.6 27.2 152.9 1.15 71.55 214.65 214.7 1.79 79.76 239.28
27.5 65.6 34.4 120.9 1.15 90.49 271.47 169.8 1.79 100.87 302.62
27.5 65.6 44.5 93.5 1.15 117.06 351.18 131.2 1.79 130.49 391.46
27.5 65.6 52.0 80.0 1.15 136.79 410.37 112.3 1.79 152.48 457.44
27.5 65.6 57.0 73.0 1.15 149.94 449.83 102.5 1.79 167.14 501.43
27.5 65.6 63.0 66.0 1.15 165.73 497.18 92.7 1.79 184.74 554.21
29.5 59 80.3 51.8 1.03 189.98 569.95 72.7 1.61 211.78 635.33
29.5 59 104.0 40.0 1.03 246.05 738.16 56.2 1.61 274.28 822.84
29.5 59 121.0 34.4 1.03 286.27 858.82 48.3 1.61 319.11 957.34
29.5 59 134.0 31.0 1.03 317.03 951.09 43.6 1.61 353.40 1060.19
29.5 59 147.0 28.3 1.03 347.79 1043.36 39.7 1.61 387.68 1163.05
29.5 59 162.0 25.7 1.03 383.28 1149.83 36.0 1.61 427.24 1281.73
32.5 53 187.0 22.2 0.93 397.43 1192.29 31.2 1.45 443.02 1329.07
32.5 53 242.0 17.2 0.93 514.32 1542.97 24.1 1.45 573.32 1719.97
32.5 53 283.0 14.7 0.93 601.46 1804.38 20.6 1.45 670.46 2011.37
32.5 53 312.0 13.3 0.93 663.09 1989.28 18.7 1.45 739.16 2217.48
32.5 53 344.0 12.1 0.93 731.10 2193.31 17.0 1.45 814.97 2444.91
32.5 53 379.0 11.0 0.93 805.49 2416.47 15.4 1.45 897.89 2500.00
32.5 53 417.0 10.0 0.93 886.25 2500.00 14.0 1.45 987.91 2500.00
35.5 47.8 437.0 9.5 0.83 837.63 2500.00 13.4 1.31 933.72 2500.00
35.5 47.8 565.0 7.4 0.83 1082.98 2500.00 10.3 1.31 1207.21 2500.00
35.5 47.8 660.0 6.3 0.83 1265.07 2500.00 8.8 1.31 1410.20 2500.00
35.5 47.8 728.0 5.7 0.83 1395.42 2500.00 8.0 1.31 1555.49 2500.00
35.5 47.8 802.0 5.2 0.83 1537.26 2500.00 7.3 1.31 1713.60 2500.00
35.5 47.8 884.0 4.7 0.83 1694.43 2500.00 6.6 1.31 1888.81 2500.00
35.5 47.8 974.0 4.3 0.83 1866.94 2500.00 6.0 1.31 2081.11 2500.00
35.5 47.8 1073.0 3.9 0.83 2056.70 2500.00 5.4 1.31 2292.64 2500.00
32.5 43 1540.0 2.7 0.75 2500.00 2500.00 3.8 1.18 2500.00 2500.00
32.5 43 1698.0 2.4 0.75 2500.00 2500.00 3.4 1.18 2500.00 2500.00
32.5 43 1871.0 2.2 0.75 2500.00 2500.00 3.1 1.18 2500.00 2500.00
32.5 43 2062.0 2.0 0.75 2500.00 2500.00 2.8 1.18 2500.00 2500.00
32.5 43 2272.0 1.8 0.75 2500.00 2500.00 2.6 1.18 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher

Micro High Torque 12V DC Gear Motor 5kgcm 5V 150 Rpm 2nm For Garlic Masher
