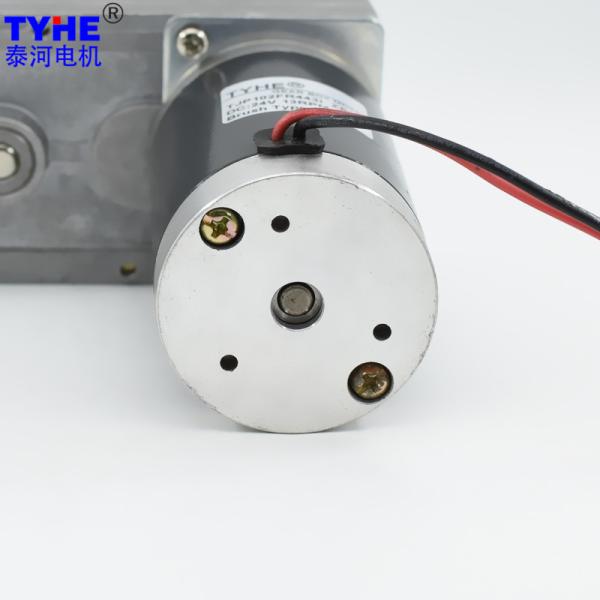

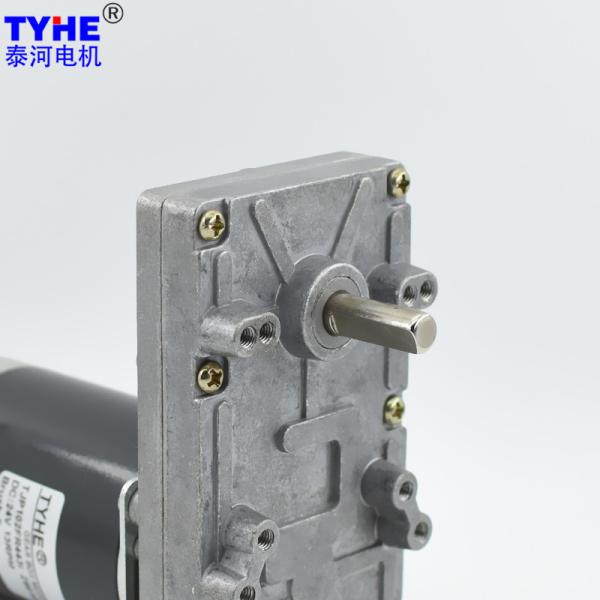

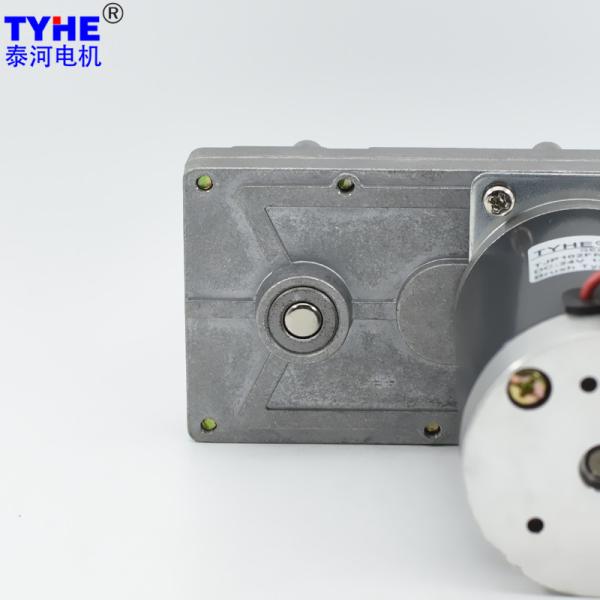

TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
Specifications
Brand Name :
TYHE
Model Number :
TJP102FR
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
102mm*60mm
Voltage :
12v or 24v customized
Speed :
20-550rpm Customized
Torque :
5N.m
Gear material :
Steel gears
Commutation :
Brushes
Type :
Flat Gear Motor
Keywords :
High Quality Factory Price 102*60mm Size 12v 24v 75w 200kg Cm High Torque Dc Flat Gearbox Motor For Valve
Description

Products Description

High Quality Factory Price 102*60mm Size 12v 24v 75w 200kg Cm High Torque Dc Flat Gearbox Motor For Valve

2D drawing

TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve


TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY5078 12 6000 1030 4800 4.00 60.19 30.25 63.11 180.57 29.40
ZY5078 12 6500 1300 5200 4.98 69.52 37.85 63.30 208.56 36.40
ZY5078 24 3000 230 2400 0.82 50.12 12.60 63.68 150.36 5.75
ZY5078 24 4000 350 3200 1.25 57.30 19.20 63.79 171.90 8.75
ZY5078 24 5000 470 4000 1.68 60.35 25.28 62.54 181.05 11.75
ZY5078 24 6000 610 4800 2.19 67.39 33.87 64.57 202.17 15.25
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-6000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 208.7 22.08 1010.59 3031.77 226.1 27.63 1167.24 3501.72
102 73 31.5 152.4 22.08 1384.07 4152.21 165.1 27.63 1598.61 4795.84
102 73 57.0 84.2 22.08 2504.51 7513.52 91.2 27.63 2892.73 8678.18
102 73 80.0 60.0 22.08 3515.10 10545.29 65.0 27.63 4059.97 12179.90
102 73 108.0 44.4 22.08 4745.38 14236.14 48.1 27.63 5480.96 15000.00
102 73 127.0 37.8 22.08 5580.21 15000.00 40.9 27.63 6445.20 15000.00
102 59 198.0 24.2 17.85 7031.40 15000.00 26.3 22.33 8121.33 15000.00
102 59 234.0 20.5 17.85 8309.83 15000.00 22.2 22.33 9597.93 15000.00
102 59 272.0 17.6 17.85 9659.29 15000.00 19.1 22.33 11156.57 15000.00
102 59 322.0 14.9 17.85 11434.90 15000.00 16.1 22.33 13207.41 15000.00
102 59 374.0 12.8 17.85 13281.53 15000.00 13.9 22.33 15000.00 15000.00
102 59 443.0 10.8 17.85 15000.00 15000.00 11.7 22.33 15000.00 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-3000RPM Input 24V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 104.3 9.19 841.51 2524.54 139.1 14.02 962.07 2886.20
102 73 31.5 76.2 9.19 1152.51 3457.53 101.6 14.02 1317.61 3952.84
102 73 57.0 42.1 9.19 2085.49 6256.48 56.1 14.02 2384.25 7152.76
102 73 80.0 30.0 9.19 2927.01 8781.02 40.0 14.02 3346.32 10038.96
102 73 108.0 22.2 9.19 3951.46 11854.38 29.6 14.02 4517.53 13552.60
102 73 127.0 18.9 9.19 4646.63 13939.88 25.2 14.02 5312.28 15000.00
102 59 198.0 12.1 7.43 5855.02 15000.00 16.2 11.33 6693.79 15000.00
102 59 234.0 10.3 7.43 6919.57 15000.00 13.7 11.33 7910.84 15000.00
102 59 272.0 8.8 7.43 8043.26 15000.00 11.8 11.33 9195.50 15000.00
102 59 322.0 7.5 7.43 9521.80 15000.00 9.9 11.33 10885.85 15000.00
102 59 374.0 6.4 7.43 11059.48 15000.00 8.6 11.33 12643.82 15000.00
102 59 443.0 5.4 7.43 13099.86 15000.00 7.2 11.33 14976.50 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 173.9 18.45 1013.28 3039.83 208.7 24.73 1131.48 3394.43
102 73 31.5 127.0 18.45 1387.75 4163.24 152.4 24.73 1549.63 4648.90
102 73 57.0 70.2 18.45 2511.16 7533.49 84.2 24.73 2804.10 8412.29
102 73 80.0 50.0 18.45 3524.44 10573.32 60.0 24.73 3935.58 11806.73
102 73 108.0 37.0 18.45 4757.99 14273.98 44.4 24.73 5313.03 15000.00
102 73 127.0 31.5 18.45 5595.05 15000.00 37.8 24.73 6247.73 15000.00
102 59 198.0 20.2 14.91 7050.09 15000.00 24.2 19.98 7872.50 15000.00
102 59 234.0 17.1 14.91 8331.92 15000.00 20.5 19.98 9303.86 15000.00
102 59 272.0 14.7 14.91 9684.97 15000.00 17.6 19.98 10814.75 15000.00
102 59 322.0 12.4 14.91 11465.29 15000.00 14.9 19.98 12802.75 15000.00
102 59 374.0 10.7 14.91 13316.83 15000.00 12.8 19.98 14870.28 15000.00
102 59 443.0 9.0 14.91 15000.00 15000.00 10.8 19.98 15000.00 15000.00

Please let us know your requirements and we will provide you with transmission solutions.

TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve

TYHE 200kg.Cm Flat DC Motor High Torque 12V 24V 75W For Valve
