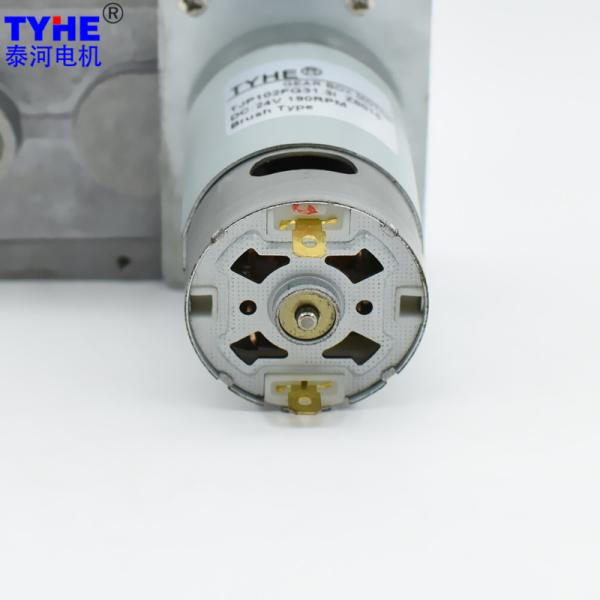

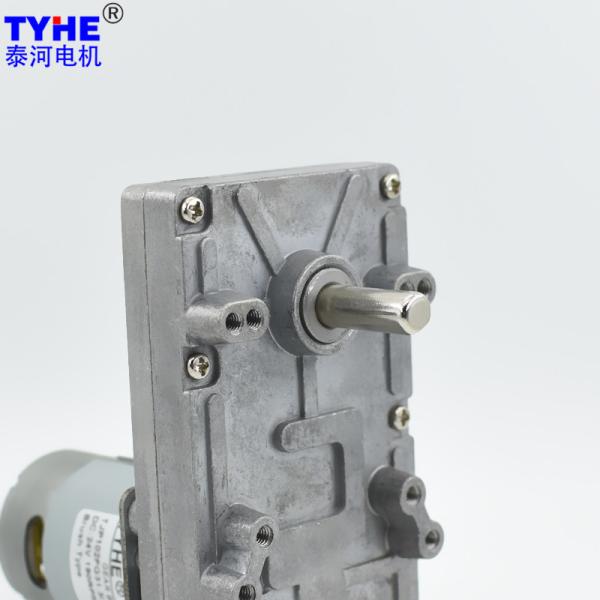

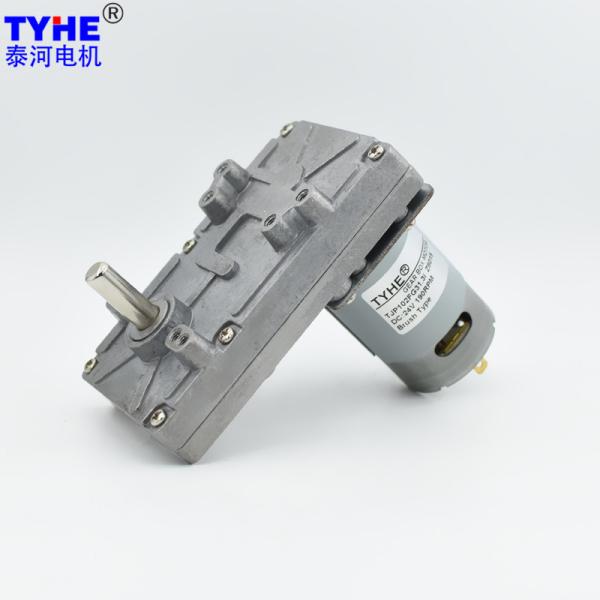

6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
Specifications
Brand Name :
TYHE
Model Number :
TJP102FG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
102mm*60mm
Voltage :
12v 24v customized
Speed :
20-500rpm Customized
Torque :
5N.m
Gear material :
Steel gears
Commutation :
Brushes
Type :
Flat Gear Motor
Keywords :
Factory Goods 102*60mm Size 6v 12v Double Shaft 20kg Cm Torque PMDC Dc Flat Gear Motor For Paper Shredder
Description

Products Description

Factory Goods 102*60mm Size 6v 12v Double Shaft 20kg Cm Torque PMDC Dc Flat Gear Motor For Paper Shredder

2D drawing

6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder


6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 5700 290 4560 1.07 17.20 8.21 63.81 51.60 7.65
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 6000 160 4800 0.53 16.80 8.44 66.18 50.40 3.50
RS555 24 6500 170 5200 0.68 19.00 10.35 63.39 57.00 5.10
RS555 24 7000 190 5600 0.87 22.20 13.02 62.47 66.60 7.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-5700RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 198.3 6.00 288.79 866.36 226.1 7.75 327.41 982.22
102 73 31.5 144.8 6.00 395.51 1186.54 165.1 7.75 448.40 1345.21
102 73 57.0 80.0 6.00 715.69 2147.08 91.2 7.75 811.40 2434.19
102 73 80.0 57.0 6.00 1004.48 3013.44 65.0 7.75 1138.80 3416.40
102 73 108.0 42.2 6.00 1356.05 4068.14 48.1 7.75 1537.38 4612.14
102 73 127.0 35.9 6.00 1594.61 4783.84 40.9 7.75 1807.85 5423.54
102 59 198.0 23.0 4.85 2009.30 6027.91 26.3 6.26 2277.99 6833.97
102 59 234.0 19.5 4.85 2374.63 7123.90 22.2 6.26 2692.17 8076.51
102 59 272.0 16.8 4.85 2760.26 8280.77 19.1 6.26 3129.36 9388.08
102 59 322.0 14.2 4.85 3267.66 9802.97 16.1 6.26 3704.61 11113.83
102 59 374.0 12.2 4.85 3795.35 11386.06 13.9 6.26 4302.87 12908.61
102 59 443.0 10.3 4.85 4495.56 13486.69 11.7 6.26 5096.72 15000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 173.9 5.35 293.83 881.48 208.7 6.16 282.07 846.22
102 73 31.5 127.0 5.35 402.41 1207.24 152.4 6.16 386.32 1158.95
102 73 57.0 70.2 5.35 728.18 2184.53 84.2 6.16 699.05 2097.14
102 73 80.0 50.0 5.35 1022.00 3066.00 60.0 6.16 981.12 2943.36
102 73 108.0 37.0 5.35 1379.70 4139.10 44.4 6.16 1324.51 3973.54
102 73 127.0 31.5 5.35 1622.43 4867.28 37.8 6.16 1557.53 4672.58
102 59 198.0 20.2 4.32 2044.35 6133.05 24.2 4.98 1962.58 5887.73
102 59 234.0 17.1 4.32 2416.05 7248.15 20.5 4.98 2319.41 6958.22
102 59 272.0 14.7 4.32 2808.40 8425.20 17.6 4.98 2696.06 8088.19
102 59 322.0 12.4 4.32 3324.65 9973.95 14.9 4.98 3191.66 9574.99
102 59 374.0 10.7 4.32 3861.55 11584.65 12.8 4.98 3707.09 11121.26
102 59 443.0 9.0 4.32 4573.98 13721.93 10.8 4.98 4391.02 13173.05
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-6500RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
102 73 23.0 226.1 7.55 319.01 957.03 243.5 9.50 372.74 1118.21
102 73 31.5 165.1 7.55 436.91 1310.72 177.8 9.50 510.49 1531.47
102 73 57.0 91.2 7.55 790.59 2371.77 98.2 9.50 923.74 2771.23
102 73 80.0 65.0 7.55 1109.60 3328.80 70.0 9.50 1296.48 3889.44
102 73 108.0 48.1 7.55 1497.96 4493.88 51.9 9.50 1750.25 5250.74
102 73 127.0 40.9 7.55 1761.49 5284.47 44.1 9.50 2058.16 6174.49
102 59 198.0 26.3 6.10 2219.58 6658.74 28.3 7.68 2593.40 7780.21
102 59 234.0 22.2 6.10 2623.14 7869.42 23.9 7.68 3064.93 9194.80
102 59 272.0 19.1 6.10 3049.12 9147.36 20.6 7.68 3562.66 10687.97
102 59 322.0 16.1 6.10 3609.62 10828.86 17.4 7.68 4217.56 12652.67
102 59 374.0 13.9 6.10 4192.54 12577.62 15.0 7.68 4898.65 14695.96
102 59 443.0 11.7 6.10 4966.03 14898.09 12.6 7.68 5802.41 15000.00

Please let us know your requirements and we will provide you with transmission solutions.

6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder

6V 12V 20kg.Cm High Torque Dual Shaft DC Motor For Paper Shredder
