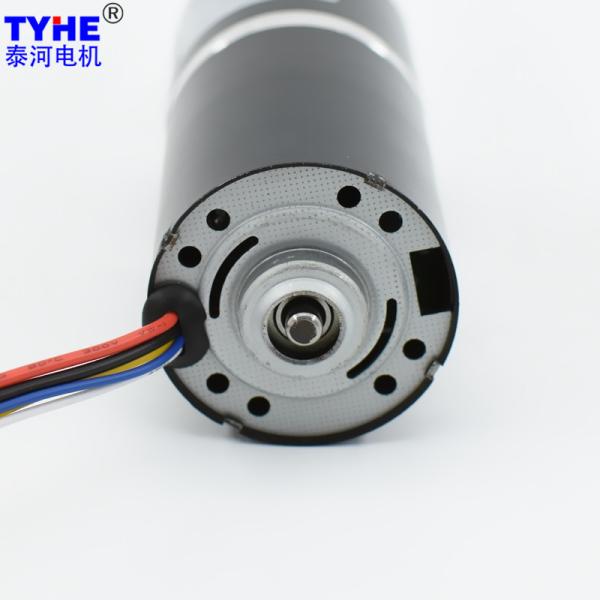

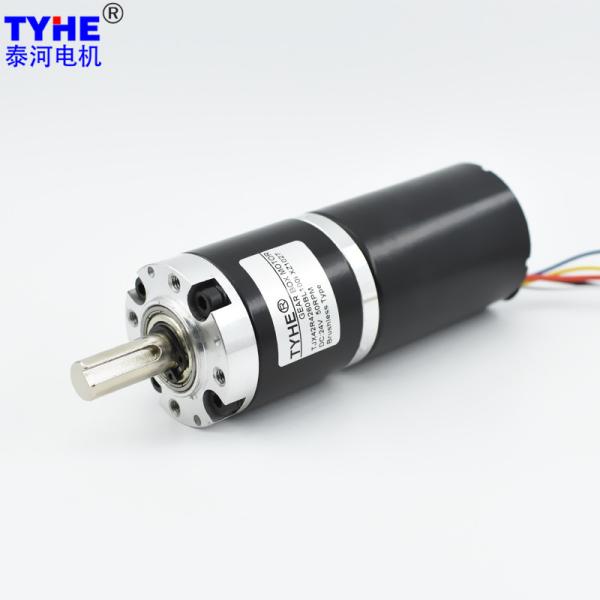

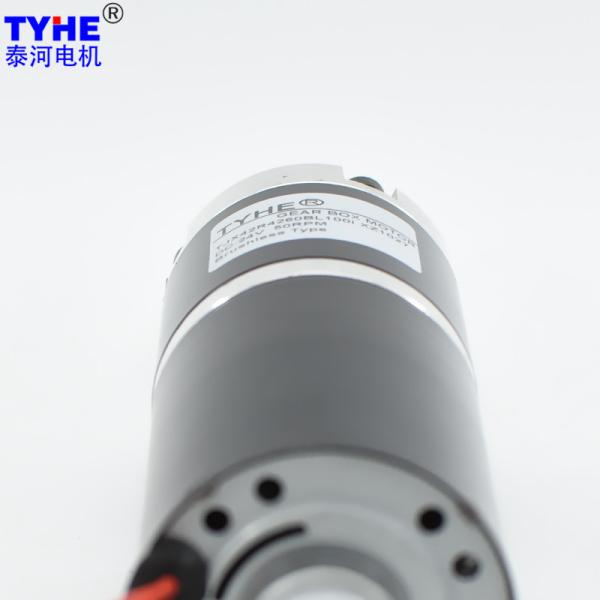

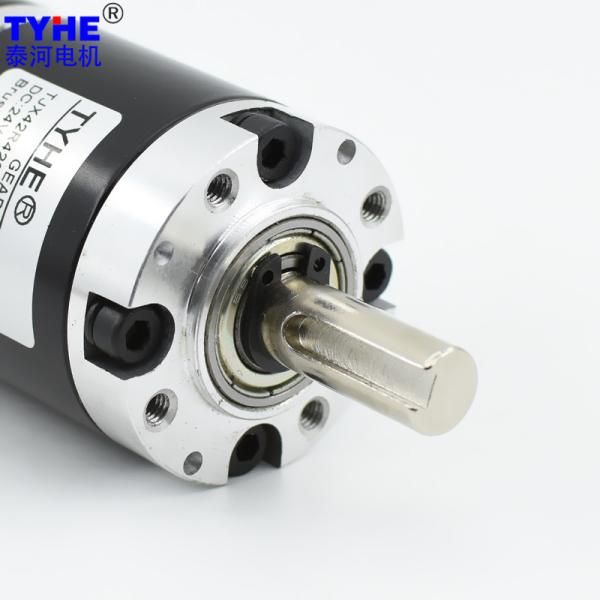

Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJX42R4260BL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm
Voltage :
12-24V customized
Speed :
1-1200rpm or Customized
Torque :
25N.m
Gear material :
Full Steel
Commutation :
Brushless
Type :
Planetary Gear Motor, Micro Motor
Usage :
Robot control
Keywords :
Low Backlash steel gear 42mm dia 4260BL 12v 24v brushless dc planetary reducer gear motor rohs
Description

Products Description

Low Backlash Steel Gear 42mm Dia 4260BL 12v 24v Brushless Dc Planetary Reducer Gear Motor Rohs

2D drawing

Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor


Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
4260BL 12 5000 620 4000 2.26 43.54 18.24 67.39 130.62 13.25
4260BL 24 5000 350 4000 1.18 45.88 19.22 67.80 137.64 6.56
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 12V-5000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
29.7 90 3.7 1081.1 16.41 144.99 434.96 1081.1 17.30 152.78 458.34
29.7 90 5.2 769.2 16.41 203.77 611.30 769.2 17.30 214.72 644.16
39.4 81 13.7 292.0 14.77 483.16 1449.49 292.0 15.57 509.13 1527.39
39.4 81 19.2 208.3 14.77 677.13 2031.40 208.3 15.57 713.53 2140.58
39.4 81 26.9 148.7 14.77 948.69 2846.08 148.7 15.57 999.68 2999.04
39.4 81 35.0 114.3 14.77 1234.36 3703.08 114.3 15.57 1300.70 3902.09
49.1 73 51.0 78.4 13.31 1620.99 4862.98 78.4 14.03 1708.11 5124.34
49.1 73 71.0 56.3 13.31 2256.68 6770.03 56.3 14.03 2377.96 7133.88
49.1 73 100.0 40.0 13.31 3178.42 9535.26 40.0 14.03 3349.24 10047.72
49.1 73 139.0 28.8 13.31 4418.00 13254.01 28.8 14.03 4655.44 13966.33
60.3 65.6 189.0 21.2 11.96 5398.26 16194.79 21.2 12.61 5688.39 17065.16
60.3 65.6 264.0 15.2 11.96 7540.43 22621.29 15.2 12.61 7945.68 23837.05
60.3 65.6 369.0 10.8 11.96 10539.47 25000.00 10.8 12.61 11105.90 25000.00
60.3 65.6 514.0 7.8 11.96 14680.99 25000.00 7.8 12.61 15470.00 25000.00
60.3 65.6 721.0 5.5 11.96 20593.38 25000.00 5.5 12.61 21700.14 25000.00
71.5 59 699.0 5.7 10.76 17956.33 25000.00 5.7 11.34 18921.37 25000.00
71.5 59 977.0 4.1 10.76 25000.00 25000.00 4.1 11.34 25000.00 25000.00
71.5 59 1367.0 2.9 10.76 25000.00 25000.00 2.9 11.34 25000.00 25000.00
71.5 59 1911.0 2.1 10.76 25000.00 25000.00 2.1 11.34 25000.00 25000.00
71.5 59 2672.0 1.5 10.76 25000.00 25000.00 1.5 11.34 25000.00 25000.00
71.5 59 3736.0 1.1 10.76 25000.00 25000.00 1.1 11.34 25000.00 25000.00

Please let us know your requirements and we will provide you with transmission solutions.

Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor

Low Backlash Steel Gear 42mm DC Motor 4260BL Brushless DC Planetary Gear Motor
