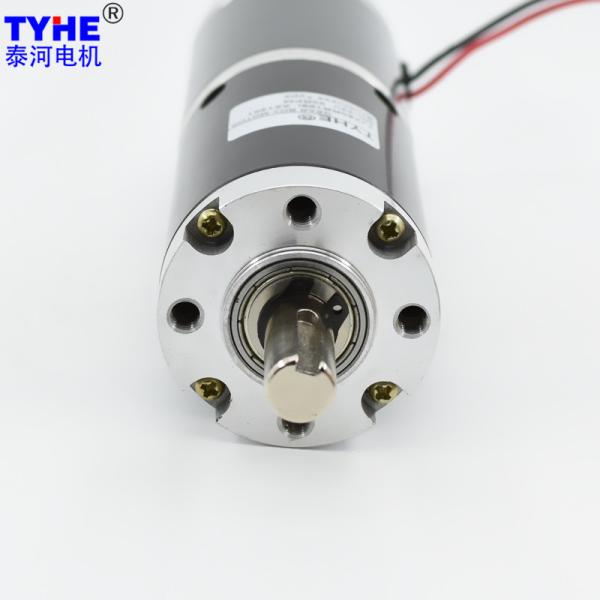

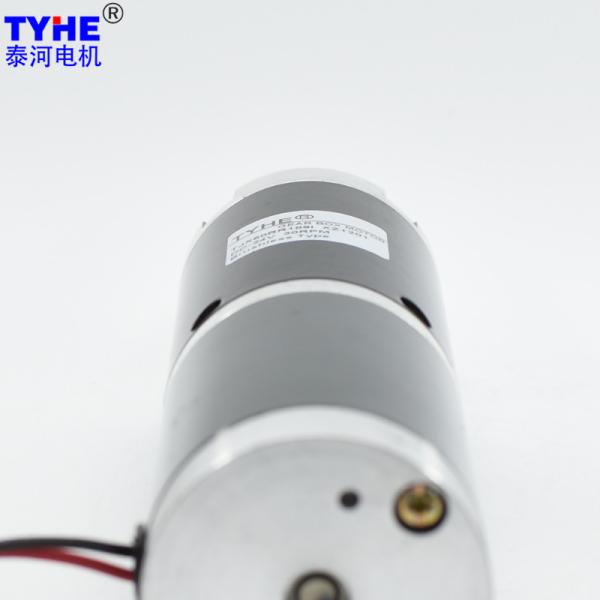

100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V
Specifications
Brand Name :
TYHE
Model Number :
TJX50RR
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD 50mm size
Voltage :
12~24v or customized
Speed :
1-2000rpm Customized
Torque :
28N.m
Gear material :
Steel gear
Commutation :
Brushed
Type :
DC Planetary Gear Motor, Dc Motor
Keywords :
50mm Diameter 24v 12v High Torque 100kg Torque Brushed Gear Dc Electric Motor
Description

Products Description

50mm Diameter 24v 12v High Torque 100kg Torque Brushed Gear Dc Electric Motor

2D drawing

100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V


100kg Permanent Magnet Brushed High Torque DC Gear Motor 50mm 24V 12V

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY5078 12 7000 1500 5600 5.75 75.62 44.34 64.26 226.86 42.00
ZY5078 24 2000 170 1600 0.61 55.20 9.25 63.26 165.60 4.25
ZY5078 24 5000 470 4000 1.68 60.35 25.28 62.54 181.05 11.75
ZY5078 24 6000 610 4800 2.19 67.39 33.87 64.57 202.17 15.25
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-7000RPM Input 24V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
42.5 90 3.7 1513.5 39.91 251.81 755.44 432.4 8.32 183.82 551.45
42.5 90 5.2 1076.9 39.91 353.90 1061.70 307.7 8.32 258.34 775.01
55.8 81 13.7 408.8 35.92 839.16 2517.47 116.8 7.49 612.55 1837.66
55.8 81 19.2 291.7 35.92 1176.04 3528.13 83.3 7.49 858.47 2575.41
55.8 81 26.9 208.2 35.92 1647.68 4943.05 59.5 7.49 1202.75 3608.26
55.8 81 35.0 160.0 35.92 2143.83 6431.48 45.7 7.49 1564.92 4694.76
69.3 73 51.0 109.8 32.37 2815.33 8446.00 31.4 6.75 2055.10 6165.29
69.3 73 71.0 78.9 32.37 3919.38 11758.15 22.5 6.75 2861.02 8583.05
69.3 73 100.0 56.0 32.37 5520.26 16560.78 16.0 6.75 4029.60 12088.80
69.3 73 139.0 40.3 32.37 7673.16 23019.48 11.5 6.75 5601.14 16803.43
84.5 65.6 189.0 29.6 29.09 9375.67 28127.01 8.5 6.07 6843.92 20531.75
84.5 65.6 264.0 21.2 29.09 13096.17 39288.52 6.1 6.07 9559.76 28679.27
84.5 65.6 369.0 15.2 29.09 18304.88 40000.00 4.3 6.07 13361.93 40000.00
84.5 65.6 514.0 10.9 29.09 25497.85 40000.00 3.1 6.07 18612.56 40000.00
84.5 65.6 721.0 7.8 29.09 35766.45 40000.00 2.2 6.07 26108.28 40000.00
100 59 699.0 8.0 26.16 31186.44 40000.00 2.3 5.46 22765.03 40000.00
100 59 977.0 5.7 26.16 40000.00 40000.00 1.6 5.46 31818.94 40000.00
100 59 1367.0 4.1 26.16 40000.00 40000.00 1.2 5.46 40000.00 40000.00
100 59 1911.0 2.9 26.16 40000.00 40000.00 0.8 5.46 40000.00 40000.00
100 59 2672.0 2.1 26.16 40000.00 40000.00 0.6 5.46 40000.00 40000.00
100 59 3736.0 1.5 26.16 40000.00 40000.00 0.4 5.46 40000.00 40000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
42.5 90 3.7 1081.1 22.75 200.97 602.90 1297.3 30.48 224.41 673.23
42.5 90 5.2 769.2 22.75 282.44 847.31 923.1 30.48 315.39 946.16
55.8 81 13.7 292.0 20.47 669.70 2009.11 350.4 27.44 747.83 2243.48
55.8 81 19.2 208.3 20.47 938.56 2815.69 250.0 27.44 1048.05 3144.15
55.8 81 26.9 148.7 20.47 1314.97 3944.90 178.4 27.44 1468.36 4405.08
55.8 81 35.0 114.3 20.47 1710.92 5132.77 137.1 27.44 1910.51 5731.52
69.3 73 51.0 78.4 18.45 2246.83 6740.49 94.1 24.73 2508.93 7526.79
69.3 73 71.0 56.3 18.45 3127.94 9383.82 67.6 24.73 3492.82 10478.47
69.3 73 100.0 40.0 18.45 4405.55 13216.65 48.0 24.73 4919.47 14758.41
69.3 73 139.0 28.8 18.45 6123.71 18371.14 34.5 24.73 6838.06 20514.19
84.5 65.6 189.0 21.2 16.58 7482.43 22447.30 25.4 22.22 8355.28 25065.85
84.5 65.6 264.0 15.2 16.58 10451.65 31354.96 18.2 22.22 11670.87 35012.61
84.5 65.6 369.0 10.8 16.58 14608.56 40000.00 13.0 22.22 16312.69 40000.00
84.5 65.6 514.0 7.8 16.58 20349.05 40000.00 9.3 22.22 22722.83 40000.00
84.5 65.6 721.0 5.5 16.58 28544.10 40000.00 6.7 22.22 31873.85 40000.00
100 59 699.0 5.7 14.91 24888.94 40000.00 6.9 19.98 27792.31 40000.00
100 59 977.0 4.1 14.91 34787.55 40000.00 4.9 19.98 38845.62 40000.00
100 59 1367.0 2.9 14.91 40000.00 40000.00 3.5 19.98 40000.00 40000.00
100 59 1911.0 2.1 14.91 40000.00 40000.00 2.5 19.98 40000.00 40000.00
100 59 2672.0 1.5 14.91 40000.00 40000.00 1.8 19.98 40000.00 40000.00
100 59 3736.0 1.1 14.91 40000.00 40000.00 1.3 19.98 40000.00 40000.00

Please let us know your requirements and we will provide you with transmission solutions.
