PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
Specifications
Brand Name :
TYHE
Model Number :
TJX42RT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D42mm diameter
Voltage :
DC 6-24v or customized
Speed :
1-1700rpm Customized
Torque :
15N.m
Gear material :
Steel gears
Commutation :
Brushes
Type :
DC Planetary Gear Motor
Keywords :
42mm 12v 24v 24 Volt High Torque High Speed Brush Pm Dc Planetary Gear Motor For Pool Robot Cleaner
Description

Products Description

42mm 12v 24v 24 Volt High Torque High Speed Brush Pm Dc Planetary Gear Motor For Pool Robot Cleaner

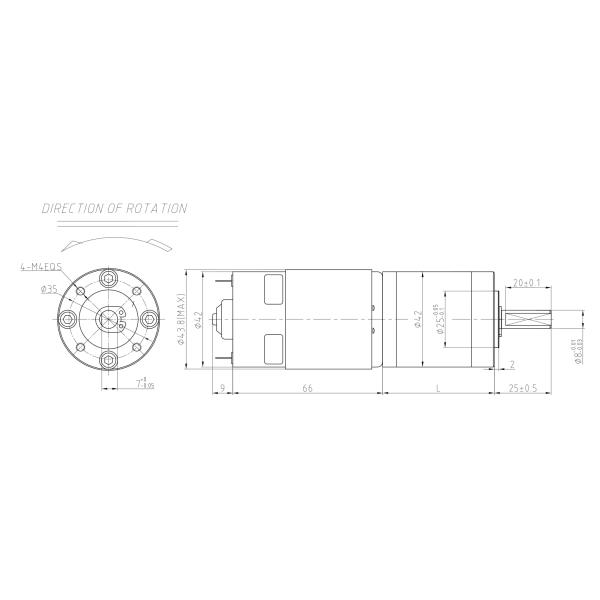

2D drawing

PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001


PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 10000 1120 8000 3.76 34.00 28.48 63.07 102.00 25.00
RS775 24 2000 70 1600 0.26 23.00 3.85 61.95 69.00 1.85
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 12V-10000RPM Input 24V-2000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 2162.2 25.63 113.22 339.66 432.4 3.47 76.59 229.77
28.2 90 5.2 1538.5 25.63 159.12 477.36 307.7 3.47 107.64 322.92
37 81 13.7 583.9 23.07 377.30 1131.89 116.8 3.12 255.23 765.69
37 81 19.2 416.7 23.07 528.77 1586.30 83.3 3.12 357.70 1073.09
37 81 26.9 297.4 23.07 740.83 2222.48 59.5 3.12 501.15 1503.44
37 81 35.0 228.6 23.07 963.90 2891.70 45.7 3.12 652.05 1956.15
45.8 73 51.0 156.9 20.79 1265.82 3797.46 31.4 2.81 856.29 2568.87
45.8 73 71.0 112.7 20.79 1762.22 5286.66 22.5 2.81 1192.09 3576.27
45.8 73 100.0 80.0 20.79 2482.00 7446.00 16.0 2.81 1679.00 5037.00
45.8 73 139.0 57.6 20.79 3449.98 10349.94 11.5 2.81 2333.81 7001.43
54.7 65.6 189.0 42.3 18.68 4215.46 12646.37 8.5 2.53 2851.63 8554.90
54.7 65.6 264.0 30.3 18.68 5888.26 17664.77 6.1 2.53 3983.23 11949.70
54.7 65.6 369.0 21.7 18.68 8230.18 24690.53 4.3 2.53 5567.47 16702.42
54.7 65.6 514.0 15.6 18.68 11464.26 25000.00 3.1 2.53 7755.23 23265.70
54.7 65.6 721.0 11.1 18.68 16081.18 25000.00 2.2 2.53 10878.45 25000.00
64 59 699.0 11.4 16.80 14021.94 25000.00 2.3 2.27 9485.43 25000.00
64 59 977.0 8.2 16.80 19598.62 25000.00 1.6 2.27 13257.89 25000.00
64 59 1367.0 5.9 16.80 25000.00 25000.00 1.2 2.27 18550.19 25000.00
64 59 1911.0 4.2 16.80 25000.00 25000.00 0.8 2.27 25000.00 25000.00
64 59 2672.0 3.0 16.80 25000.00 25000.00 0.6 2.27 25000.00 25000.00
64 59 3736.0 2.1 16.80 25000.00 25000.00 0.4 2.27 25000.00 25000.00
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.2 90 3.7 756.8 7.78 98.24 294.71 1081.1 11.69 103.23 309.69
28.2 90 5.2 538.5 7.78 138.06 414.18 769.2 11.69 145.08 435.24
37 81 13.7 204.4 7.01 327.36 982.08 292.0 10.52 344.01 1032.02
37 81 19.2 145.8 7.01 458.78 1376.35 208.3 10.52 482.11 1446.34
37 81 26.9 104.1 7.01 642.78 1928.33 148.7 10.52 675.46 2026.38
37 81 35.0 80.0 7.01 836.33 2508.98 114.3 10.52 878.85 2636.55
45.8 73 51.0 54.9 6.31 1098.29 3294.86 78.4 9.48 1154.13 3462.39
45.8 73 71.0 39.4 6.31 1528.99 4586.96 56.3 9.48 1606.73 4820.19
45.8 73 100.0 28.0 6.31 2153.50 6460.50 40.0 9.48 2263.00 6789.00
45.8 73 139.0 20.1 6.31 2993.37 8980.10 28.8 9.48 3145.57 9436.71
54.7 65.6 189.0 14.8 5.67 3657.53 10972.58 21.2 8.52 3843.50 11530.51
54.7 65.6 264.0 10.6 5.67 5108.93 15326.78 15.2 8.52 5368.70 16106.11
54.7 65.6 369.0 7.6 5.67 7140.89 21422.66 10.8 8.52 7503.98 22511.95
54.7 65.6 514.0 5.4 5.67 9946.93 25000.00 7.8 8.52 10452.70 25000.00
54.7 65.6 721.0 3.9 5.67 13952.79 25000.00 5.5 8.52 14662.26 25000.00
64 59 699.0 4.0 5.10 12166.10 25000.00 5.7 7.66 12784.71 25000.00
64 59 977.0 2.9 5.10 17004.69 25000.00 4.1 7.66 17869.33 25000.00
64 59 1367.0 2.0 5.10 23792.64 25000.00 2.9 7.66 25000.00 25000.00
64 59 1911.0 1.5 5.10 25000.00 25000.00 2.1 7.66 25000.00 25000.00
64 59 2672.0 1.0 5.10 25000.00 25000.00 1.5 7.66 25000.00 25000.00
64 59 3736.0 0.7 5.10 25000.00 25000.00 1.1 7.66 25000.00 25000.00

Please let us know your requirements and we will provide you with transmission solutions.

PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001

PMDC 42mm 24V High Speed High Torque DC Gear Motor ISO9001
