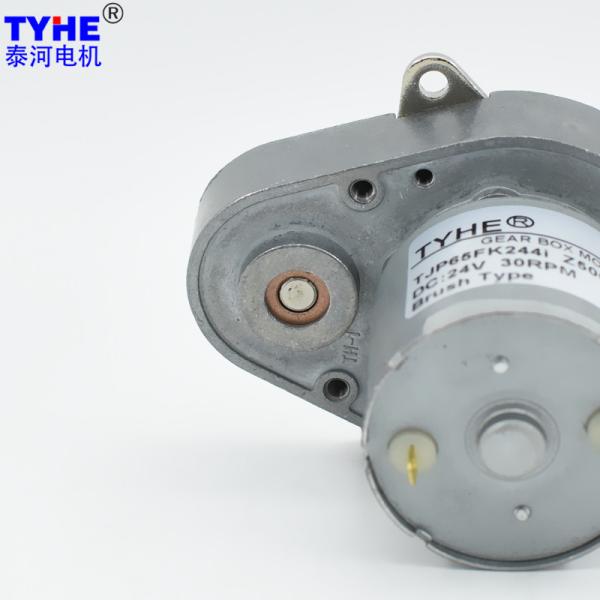

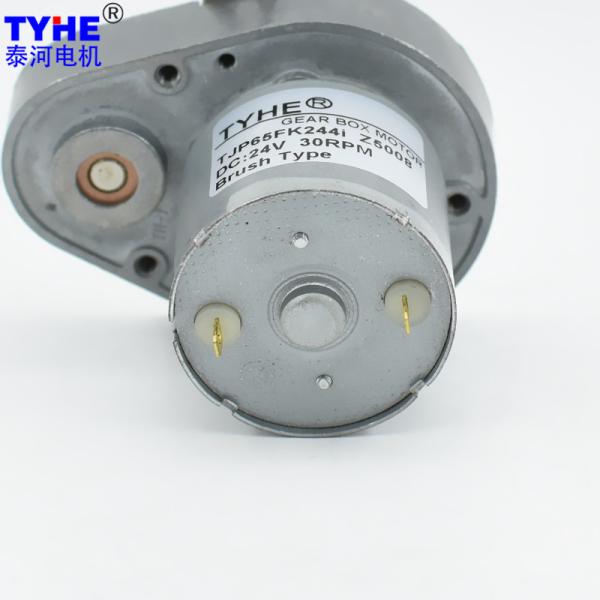

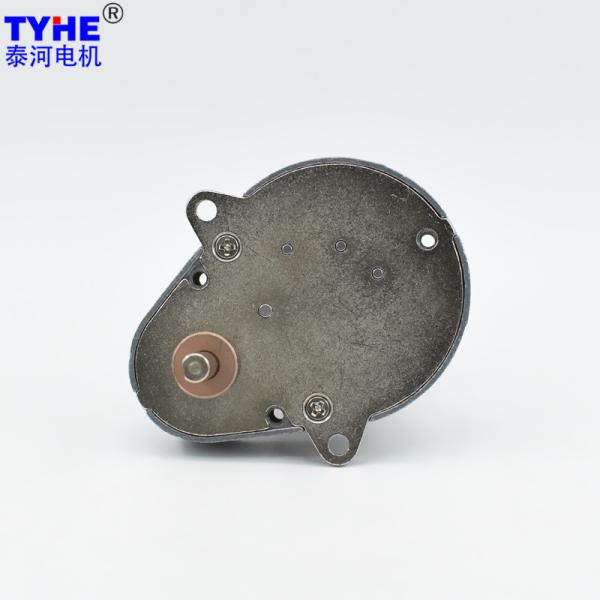

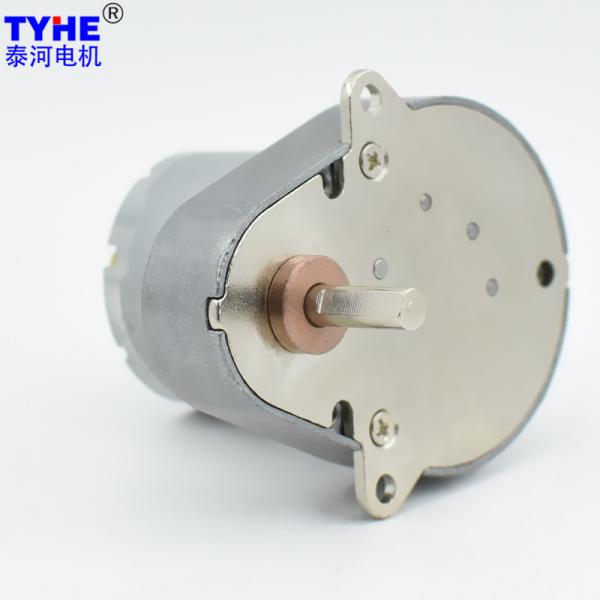

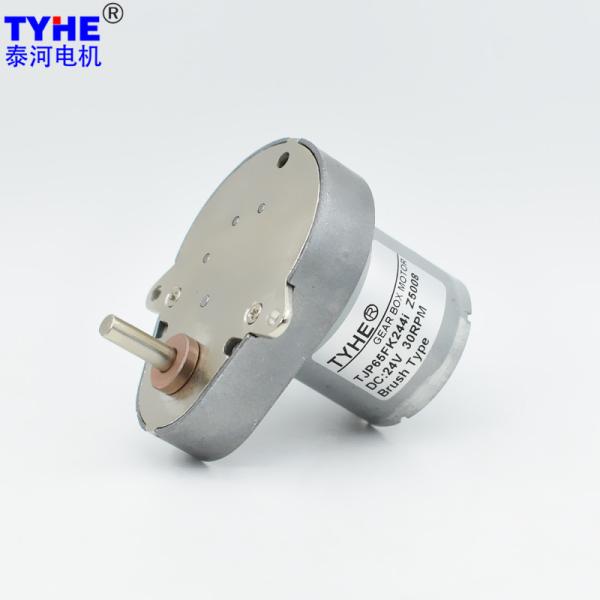

Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
Specifications
Brand Name :
TYHE
Model Number :
TJP65FK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
65mm*48mm
Voltage :
15v or customized
Speed :
200rpm Customized
Torque :
2N.m
Gear material :
Powder metallurgy
Commutation :
brushed
Type :
DC Flat Gear Motor
Keywords :
Pear Shape 12v 24v 6 10 Rpm 60 300 Rpm 15kg Cm 1nm Pancake Dc Flat Gear Motor With Ce Rohs
Description

Products Description

Pear Shape 12v 24v 6 10 Rpm 60 300 Rpm 15kg Cm 1nm Pancake Dc Flat Gear Motor With Ce Rohs

2D drawing (Gear ratio≤244)

Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm

2D drawing (Gear ratio＞244)

Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm


Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.23 3.81 1.76 62.69 11.43 1.72
ZY3530 12 6500 65 5200 0.31 4.18 2.28 61.18 12.54 2.00
ZY3530 12 7300 67 5840 0.36 4.35 2.66 61.78 13.05 3.10
ZY3530 12 9000 90 7200 0.43 4.31 3.25 63.47 12.93 3.50
ZY3530 24 3500 14 2800 0.06 3.17 0.93 62.63 9.51 0.49
ZY3530 24 5200 22 4160 0.11 4.01 1.75 63.47 12.03 0.98
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
65 81 8.3 530.1 1.42 25.61 76.84 626.5 1.84 28.10 84.31
65 81 12.0 366.7 1.42 37.03 111.10 433.3 1.84 40.63 121.89
65 73 15.7 280.3 1.28 43.67 131.00 331.2 1.66 47.91 143.72
65 73 18.2 241.8 1.28 50.62 151.86 285.7 1.66 55.54 166.61
65 73 22.6 194.7 1.28 62.86 188.57 230.1 1.66 68.96 206.88
65 73 32.4 135.8 1.28 90.11 270.34 160.5 1.66 98.87 296.60
65 73 37.0 118.9 1.28 102.91 308.72 140.5 1.66 112.90 338.71
65 65.6 81.3 54.1 1.15 203.20 609.59 64.0 1.49 222.93 668.79
65 65.6 111.0 39.6 1.15 277.43 832.29 46.8 1.49 304.37 913.11
65 59 179.0 24.6 1.04 402.37 1207.12 29.1 1.34 441.45 1324.35
65 59 244.0 18.0 1.04 548.49 1500.00 21.3 1.34 601.75 1500.00
65 53 394.0 11.2 0.93 795.60 1500.00 13.2 1.21 872.87 1500.00
65 53 537.0 8.2 0.93 1084.36 1500.00 9.7 1.21 1189.67 1500.00
65 47.8 866.0 5.1 0.84 1500.00 1500.00 6.0 1.09 1500.00 1500.00
65 47.8 1181.0 3.7 0.84 1500.00 1500.00 4.4 1.09 1500.00 1500.00
65 43 1905.0 2.3 0.75 1500.00 1500.00 2.7 0.98 1500.00 1500.00
65 43 2597.0 1.7 0.75 1500.00 1500.00 2.0 0.98 1500.00 1500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-7300RPM Input 12V-9000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
65 81 8.3 703.6 2.15 29.25 87.74 867.5 2.63 28.98 86.93
65 81 12.0 486.7 2.15 42.28 126.85 600.0 2.63 41.89 125.68
65 73 15.7 372.0 1.94 49.86 149.57 458.6 2.37 49.40 148.19
65 73 18.2 320.9 1.94 57.79 173.38 395.6 2.37 57.26 171.79
65 73 22.6 258.4 1.94 71.77 215.30 318.6 2.37 71.11 213.32
65 73 32.4 180.2 1.94 102.89 308.66 222.2 2.37 101.94 305.82
65 73 37.0 157.8 1.94 117.49 352.48 194.6 2.37 116.41 349.24
65 65.6 81.3 71.8 1.75 232.00 695.99 88.6 2.13 229.86 689.59
65 65.6 111.0 52.6 1.75 316.75 950.25 64.9 2.13 313.84 941.51
65 59 179.0 32.6 1.57 459.40 1378.21 40.2 1.92 455.18 1365.54
65 59 244.0 23.9 1.57 626.23 1500.00 29.5 1.92 620.47 1500.00
65 53 394.0 14.8 1.41 908.37 1500.00 18.3 1.72 900.01 1500.00
65 53 537.0 10.9 1.41 1238.05 1500.00 13.4 1.72 1226.67 1500.00
65 47.8 866.0 6.7 1.27 1500.00 1500.00 8.3 1.55 1500.00 1500.00
65 47.8 1181.0 4.9 1.27 1500.00 1500.00 6.1 1.55 1500.00 1500.00
65 43 1905.0 3.1 1.14 1500.00 1500.00 3.8 1.40 1500.00 1500.00
65 43 2597.0 2.2 1.14 1500.00 1500.00 2.8 1.40 1500.00 1500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5200RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
65 81 8.3 337.3 0.75 21.31 63.94 501.2 1.41 26.96 80.88
65 81 12.0 233.3 0.75 30.81 92.44 346.7 1.41 38.98 116.93
65 73 15.7 178.3 0.68 36.33 108.99 265.0 1.28 45.96 137.88
65 73 18.2 153.8 0.68 42.12 126.35 228.6 1.28 53.28 159.83
65 73 22.6 123.9 0.68 52.30 156.90 184.1 1.28 66.16 198.47
65 73 32.4 86.4 0.68 74.98 224.93 128.4 1.28 94.84 284.53
65 73 37.0 75.7 0.68 85.62 256.87 112.4 1.28 108.31 324.93
65 65.6 81.3 34.4 0.61 169.06 507.19 51.2 1.15 213.86 641.59
65 65.6 111.0 25.2 0.61 230.83 692.48 37.5 1.15 291.99 875.98
65 59 179.0 15.6 0.55 334.78 1004.35 23.2 1.03 423.50 1270.49
65 59 244.0 11.5 0.55 456.35 1369.06 17.0 1.03 577.28 1500.00
65 53 394.0 7.1 0.49 661.96 1500.00 10.6 0.93 837.37 1500.00
65 53 537.0 5.2 0.49 902.21 1500.00 7.7 0.93 1141.29 1500.00
65 47.8 866.0 3.2 0.44 1312.22 1500.00 4.8 0.83 1500.00 1500.00
65 47.8 1181.0 2.4 0.44 1500.00 1500.00 3.5 0.83 1500.00 1500.00
65 43 1905.0 1.5 0.40 1500.00 1500.00 2.2 0.75 1500.00 1500.00
65 43 2597.0 1.1 0.40 1500.00 1500.00 1.6 0.75 1500.00 1500.00

Please let us know your requirements and we will provide you with transmission solutions.

Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm

Pear Shape Micro DC Gear Motor 12v 300 Rpm 60 Rpm 15kgCm 1nm
