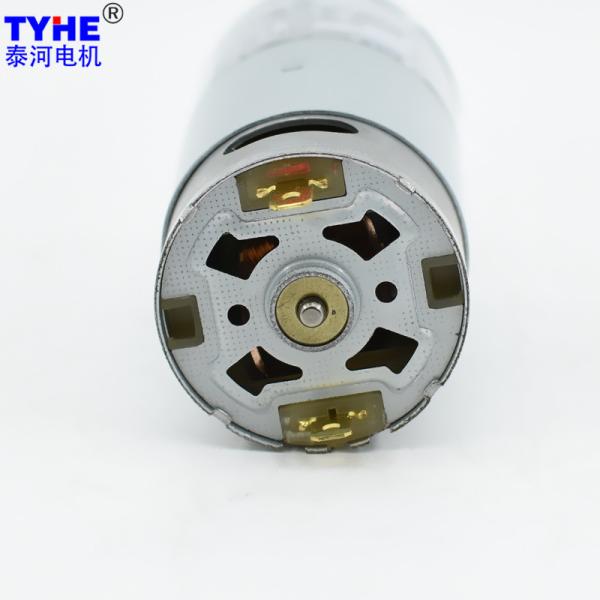

6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
Specifications
Brand Name :
TYHE
Model Number :
TJP37RG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD37mm
Voltage :
3-24v or customized
Speed :
100rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush
Type :
DC Brushed Gear Motor, Micro Motor
Keywords :
6mm Rotation Shaft Jgb37 550rpm 12v 12 Volt 24v High Torque 2nm 1.5nm 30 Rpm Micro Dc Gear Motor
Description

Products Description

6mm Rotation Shaft Jgb37 550rpm 12v 12 Volt 24v High Torque 2nm 1.5nm 30 Rpm Micro Dc Gear Motor

2D drawing

6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm


6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 12 6500 310 5200 1.42 19.50 10.62 62.24 58.50 11.48
RS555 24 5000 150 4000 0.49 17.50 7.33 62.12 52.50 3.20
RS555 24 7600 220 6080 1.01 23.20 14.77 61.24 69.60 8.10
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 5.70 88.45 265.36 800.0 8.60 102.67 308.00
22.5 73 9.3 430.1 5.14 114.06 342.17 559.1 7.75 132.39 397.16
22.5 73 11.8 339.0 5.14 144.72 434.15 440.7 7.75 167.97 503.92
22.5 73 14.2 281.7 5.14 174.15 522.45 366.2 7.75 202.14 606.41
22.5 73 17.4 229.9 5.14 213.39 640.18 298.9 7.75 247.69 743.07
24.5 65.6 21.8 183.5 4.62 240.25 720.76 238.5 6.97 278.87 836.60
24.5 65.6 27.5 145.5 4.62 303.07 909.22 189.1 6.97 351.78 1055.34
24.5 65.6 36.6 109.3 4.62 403.36 1210.08 142.1 6.97 468.19 1404.56
24.5 65.6 40.4 99.0 4.62 445.24 1335.72 128.7 6.97 516.80 1550.39
26.5 59 58.1 68.8 4.15 575.89 1727.66 89.5 6.26 668.44 2005.32
26.5 59 73.4 54.5 4.15 727.54 2182.62 70.8 6.26 844.47 2500.00
26.5 59 83 48.2 4.15 822.70 2468.09 62.7 6.26 954.92 2500.00
26.5 59 89 44.9 4.15 882.17 2500.00 58.4 6.26 1023.95 2500.00
26.5 59 95 42.1 4.15 941.64 2500.00 54.7 6.26 1092.98 2500.00
26.5 59 103 38.8 4.15 1020.94 2500.00 50.5 6.26 1185.02 2500.00
29.5 53 119 33.6 3.73 1059.58 2500.00 43.7 5.63 1229.87 2500.00
29.5 53 136 29.4 3.73 1210.94 2500.00 38.2 5.63 1405.56 2500.00
29.5 53 171 23.4 3.73 1522.58 2500.00 30.4 5.63 1767.29 2500.00
29.5 53 194 20.6 3.73 1727.38 2500.00 26.8 5.63 2004.99 2500.00
29.5 53 207 19.3 3.73 1843.13 2500.00 25.1 5.63 2139.35 2500.00
29.5 53 221 18.1 3.73 1967.78 2500.00 23.5 5.63 2284.04 2500.00
29.5 53 242 16.5 3.73 2154.77 2500.00 21.5 5.63 2500.00 2500.00
29.5 53 277 14.4 3.73 2466.41 2500.00 18.8 5.63 2500.00 2500.00
29.5 53 305 13.1 3.73 2500.00 2500.00 17.0 5.63 2500.00 2500.00
32.5 47.8 350 11.4 3.36 2500.00 2500.00 14.9 5.08 2500.00 2500.00
32.5 47.8 422 9.5 3.36 2500.00 2500.00 12.3 5.08 2500.00 2500.00
32.5 47.8 465 8.6 3.36 2500.00 2500.00 11.2 5.08 2500.00 2500.00
32.5 47.8 513 7.8 3.36 2500.00 2500.00 10.1 5.08 2500.00 2500.00
32.5 47.8 532 7.5 3.36 2500.00 2500.00 9.8 5.08 2500.00 2500.00
32.5 47.8 586 6.8 3.36 2500.00 2500.00 8.9 5.08 2500.00 2500.00
32.5 47.8 712 5.6 3.36 2500.00 2500.00 7.3 5.08 2500.00 2500.00
32.5 47.8 784 5.1 3.36 2500.00 2500.00 6.6 5.08 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-7600RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 5.94 92.14 276.41 935.4 11.96 122.15 366.44
22.5 73 9.3 430.1 5.35 118.81 356.42 653.8 10.78 157.50 472.51
22.5 73 11.8 339.0 5.35 150.75 452.24 515.3 10.78 199.84 599.53
22.5 73 14.2 281.7 5.35 181.41 544.22 428.2 10.78 240.49 721.47
22.5 73 17.4 229.9 5.35 222.29 666.86 349.4 10.78 294.69 884.06
24.5 65.6 21.8 183.5 4.81 250.26 750.79 278.9 9.69 331.78 995.34
24.5 65.6 27.5 145.5 4.81 315.70 947.10 221.1 9.69 418.53 1255.58
24.5 65.6 36.6 109.3 4.81 420.17 1260.50 166.1 9.69 557.02 1671.07
24.5 65.6 40.4 99.0 4.81 463.79 1391.38 150.5 9.69 614.86 1844.57
26.5 59 58.1 68.8 4.32 599.88 1799.65 104.6 8.71 795.27 2385.82
26.5 59 73.4 54.5 4.32 757.86 2273.57 82.8 8.71 1004.70 2500.00
26.5 59 83 48.2 4.32 856.98 2570.93 73.3 8.71 1136.10 2500.00
26.5 59 89 44.9 4.32 918.93 2756.78 68.3 8.71 1218.23 2500.00
26.5 59 95 42.1 4.32 980.88 2942.63 64.0 8.71 1300.36 2500.00
26.5 59 103 38.8 4.32 1063.48 3190.43 59.0 8.71 1409.86 2500.00
29.5 53 119 33.6 3.88 1103.73 2500.00 51.1 7.83 1463.22 2500.00
29.5 53 136 29.4 3.88 1261.40 2500.00 44.7 7.83 1672.26 2500.00
29.5 53 171 23.4 3.88 1586.03 2500.00 35.6 7.83 2102.62 2500.00
29.5 53 194 20.6 3.88 1799.35 2500.00 31.3 7.83 2385.42 2500.00
29.5 53 207 19.3 3.88 1919.93 2500.00 29.4 7.83 2500.00 2500.00
29.5 53 221 18.1 3.88 2049.78 2500.00 27.5 7.83 2500.00 2500.00
29.5 53 242 16.5 3.88 2244.55 2500.00 25.1 7.83 2500.00 2500.00
29.5 53 277 14.4 3.88 2500.00 2500.00 21.9 7.83 2500.00 2500.00
29.5 53 305 13.1 3.88 2500.00 2500.00 19.9 7.83 2500.00 2500.00
32.5 47.8 350 11.4 3.50 2500.00 2500.00 17.4 7.06 2500.00 2500.00
32.5 47.8 422 9.5 3.50 2500.00 2500.00 14.4 7.06 2500.00 2500.00
32.5 47.8 465 8.6 3.50 2500.00 2500.00 13.1 7.06 2500.00 2500.00
32.5 47.8 513 7.8 3.50 2500.00 2500.00 11.9 7.06 2500.00 2500.00
32.5 47.8 532 7.5 3.50 2500.00 2500.00 11.4 7.06 2500.00 2500.00
32.5 47.8 586 6.8 3.50 2500.00 2500.00 10.4 7.06 2500.00 2500.00
32.5 47.8 712 5.6 3.50 2500.00 2500.00 8.5 7.06 2500.00 2500.00
32.5 47.8 784 5.1 3.50 2500.00 2500.00 7.8 7.06 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm

6mm Rotation Shaft Jgb37 Micro DC Gear Motor 550rpm High Torque 2nm 1.5nm
