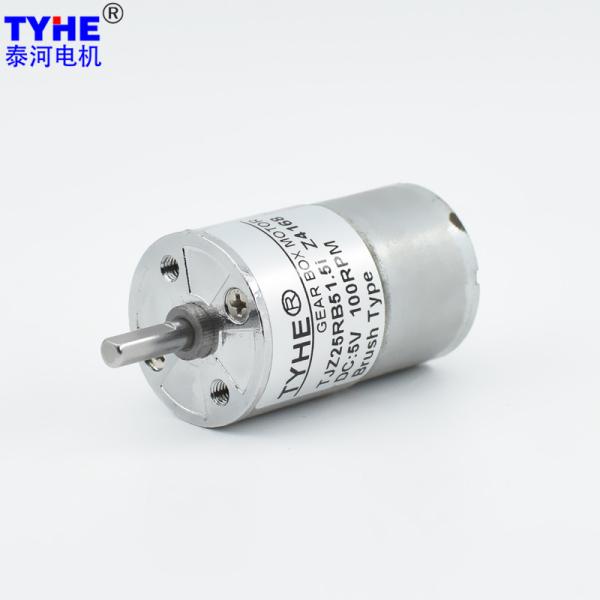

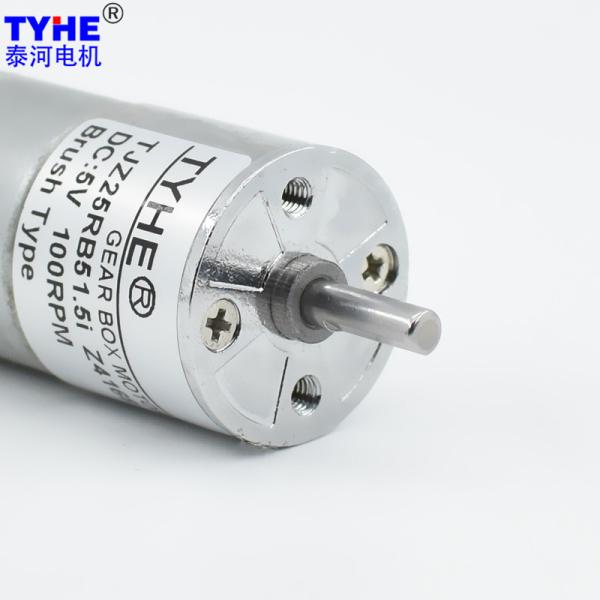

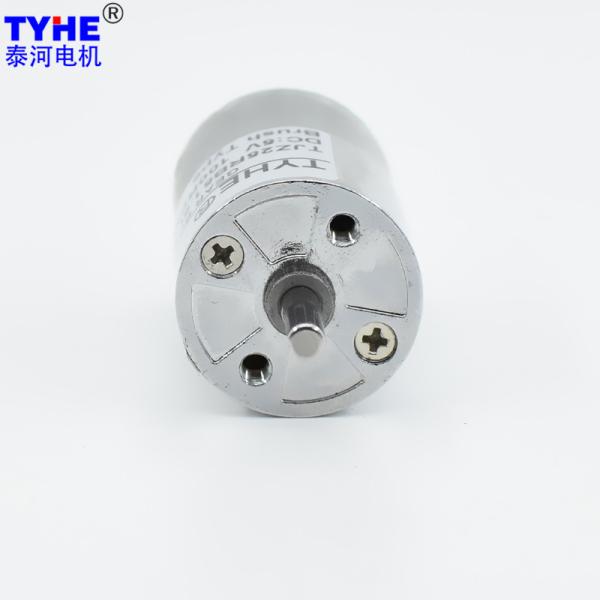

0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJZ25RB
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
OD 25mm
Voltage :
3v 6v or customized
Speed :
5-1800rpm
Torque :
1.5N.m
Gear material :
Powder metallurgy
Commutation :
Brushes
Type :
Small Gear Motor, Micro Motor
Keywords :
Small Size Geared Box 3v 6v 9v 12v 24v 05rpm Mini 25mm Dc Gear Motor For Actuator Vending Machines Electric Lock
Description

Products Description

Small Size Geared Box 3v 6v 9v 12v 24v 05rpm Mini 25mm Dc Gear Motor For Actuator Vending Machines Electric Lock

2D drawing

0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor


0.08W 0.09W Micro DC Gear Motor 5rpm Mini 25mm DC Gear Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
310 6 3000 10 2400 0.03 0.46 0.12 62.49 1.38 0.19
310 6 5000 26 4000 0.08 0.72 0.30 62.31 2.16 0.50
310 12 5000 15 4000 0.04 0.79 0.33 62.43 2.37 0.26
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 6V-3000RPM Input 6V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 500.0 0.09 1.79 5.37 833.3 0.24 2.80 8.40
19 81 5.7 421.1 0.09 2.12 6.37 701.8 0.24 3.32 9.97
19 73 10.6 226.4 0.08 3.56 10.68 377.4 0.22 5.57 16.71
19 73 12.5 192.0 0.08 4.20 12.59 320.0 0.22 6.57 19.71
19 73 14.7 163.3 0.08 4.94 14.81 272.1 0.22 7.73 23.18
19 65.6 23.0 104.3 0.08 6.94 20.82 173.9 0.20 10.86 32.59
19 65.6 27.5 87.3 0.08 8.30 24.90 145.5 0.20 12.99 38.97
19 65.6 32.0 75.0 0.08 9.66 28.97 125.0 0.20 15.11 45.34
19 65.6 38.0 63.2 0.08 11.47 34.40 105.3 0.20 17.95 53.84
22 59 51.5 46.6 0.07 13.98 41.93 77.7 0.18 21.88 65.63
22 59 60.5 39.7 0.07 16.42 49.26 66.1 0.18 25.70 77.10
22 59 71.0 33.8 0.07 19.27 57.81 56.3 0.18 30.16 90.48
22 59 83.0 28.9 0.07 22.53 67.58 48.2 0.18 35.26 105.78
22 59 98.0 24.5 0.07 26.60 79.79 40.8 0.18 41.63 124.89
24 53 113.0 21.2 0.06 27.55 82.65 35.4 0.16 43.12 129.36
24 53 133.0 18.0 0.06 32.43 97.28 30.1 0.16 50.75 152.26
24 53 156.0 15.4 0.06 38.03 114.10 25.6 0.16 59.53 178.59
24 53 184.0 13.0 0.06 44.86 134.58 21.7 0.16 70.21 210.64
24 53 215.0 11.2 0.06 52.42 157.25 18.6 0.16 82.04 246.13
24 53 253.0 9.5 0.06 61.68 185.04 15.8 0.16 96.54 289.63
27 47.8 249.0 9.6 0.06 54.75 164.25 16.1 0.14 85.70 257.09
27 47.8 293.0 8.2 0.06 64.42 193.27 13.7 0.14 100.84 302.52
27 47.8 344.0 7.0 0.06 75.64 226.92 11.6 0.14 118.39 355.17
27 47.8 404.0 5.9 0.06 88.83 266.49 9.9 0.14 139.04 417.12
27 47.8 474.0 5.1 0.06 104.22 312.67 8.4 0.14 163.13 489.40
27 47.8 557.0 4.3 0.06 122.47 367.42 7.2 0.14 191.70 575.09
27 47.8 654.0 3.7 0.06 143.80 431.40 6.1 0.14 225.08 675.24
DC Motor With Gearbox Technical Data (0.3M)
Gearbox parameters 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
19 81 4.8 833.3 0.27 3.07 9.21
19 81 5.7 701.8 0.27 3.65 10.94
19 73 10.6 377.4 0.24 6.11 18.34
19 73 12.5 320.0 0.24 7.21 21.63
19 73 14.7 272.1 0.24 8.48 25.43
19 65.6 23.0 173.9 0.22 11.92 35.76
19 65.6 27.5 145.5 0.22 14.25 42.75
19 65.6 32.0 125.0 0.22 16.58 49.75
19 65.6 38.0 105.3 0.22 19.69 59.08
22 59 51.5 77.7 0.20 24.00 72.01
22 59 60.5 66.1 0.20 28.20 84.60
22 59 71.0 56.3 0.20 33.09 99.28
22 59 83.0 48.2 0.20 38.69 116.06
22 59 98.0 40.8 0.20 45.68 137.03
24 53 113.0 35.4 0.18 47.31 141.94
24 53 133.0 30.1 0.18 55.69 167.06
24 53 156.0 25.6 0.18 65.32 195.95
24 53 184.0 21.7 0.18 77.04 231.12
24 53 215.0 18.6 0.18 90.02 270.06
24 53 253.0 15.8 0.18 105.93 317.79
27 47.8 249.0 16.1 0.16 94.03 282.08
27 47.8 293.0 13.7 0.16 110.64 331.93
27 47.8 344.0 11.6 0.16 129.90 389.70
27 47.8 404.0 9.9 0.16 152.56 457.68
27 47.8 474.0 8.4 0.16 178.99 536.98
27 47.8 557.0 7.2 0.16 210.33 631.00
27 47.8 654.0 6.1 0.16 246.96 740.89

Please let us know your requirements and we will provide you with transmission solutions.
