Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
Specifications
Brand Name :
TYHE
Model Number :
TJP33RK
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
Dia33mm
Voltage :
3-24V custom
Speed :
3-2000rpm
Torque :
≤1.6N.m
Gear material :
Powder metallurgy gears
Commutation :
Brush brushes
Type :
Gear Motor, Micro Motor
Usage :
breath machine
Keywords :
Reversible Super Low Noise 5v 12volt 12v 24 Vdc 50rpm 45rpm Low Rpm 5w 10kg Cm Mini Dc Gear Motor For Baby Cradle
Description

Products Description

Reversible Super Low Noise 5v 12volt 12v 24 Vdc 50rpm 45rpm Low Rpm 5w 10kg Cm Mini Dc Gear Motor For Baby Cradle

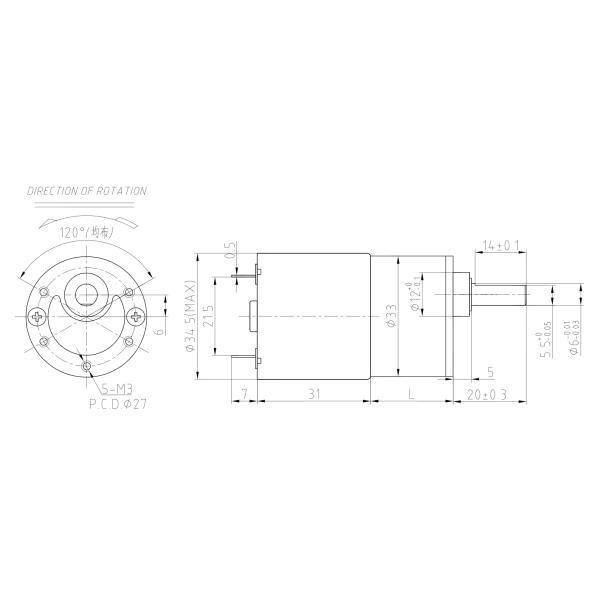

2D drawing

Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm


Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3530 12 5500 60 4400 0.25 4.05 1.87 62.62 12.15 1.90
ZY3530 12 7300 67 5840 0.36 4.35 2.66 61.78 13.05 3.10
ZY3530 24 3500 14 2800 0.06 3.21 0.94 63.42 9.63 0.49
ZY3530 24 5200 22 4160 0.11 3.87 1.69 61.26 11.61 0.98
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 571.4 1.51 25.26 75.78 758.4 2.15 27.13 81.39
21.3 81 9.0 488.9 1.51 29.52 88.57 648.9 2.15 31.71 95.13
21.3 73 18.4 239.1 1.36 54.40 163.20 317.4 1.94 58.43 175.29
21.3 73 21.6 203.7 1.36 63.86 191.58 270.4 1.94 68.59 205.77
21.3 73 25.4 173.2 1.36 75.10 225.29 229.9 1.94 80.66 241.97
21.3 65.6 44.2 99.5 1.22 117.43 352.29 132.1 1.75 126.13 378.39
21.3 65.6 51.9 84.8 1.22 137.89 413.66 112.5 1.75 148.10 444.31
21.3 65.6 61.0 72.1 1.22 162.06 486.19 95.7 1.75 174.07 522.21
21.3 65.6 71.6 61.5 1.22 190.23 570.68 81.6 1.75 204.32 612.95
22.5 59 106.0 41.5 1.10 253.29 759.86 55.1 1.57 272.05 816.15
22.5 59 125.0 35.2 1.10 298.69 896.06 46.7 1.57 320.81 962.44
22.5 59 146.0 30.1 1.10 348.87 1046.60 40.0 1.57 374.71 1124.13
22.5 59 172.0 25.6 1.10 410.99 1232.98 34.0 1.57 441.44 1324.31
22.5 59 202.0 21.8 1.10 482.68 1448.04 28.9 1.57 518.43 1555.30
24.7 53 255.0 17.3 0.99 547.36 1642.07 22.9 1.41 587.90 1763.71
24.7 53 299.0 14.7 0.99 641.80 1925.41 19.5 1.41 689.34 2000.00
24.7 53 351.0 12.5 0.99 753.42 2000.00 16.6 1.41 809.23 2000.00
24.7 53 413.0 10.7 0.99 886.50 2000.00 14.1 1.41 952.17 2000.00
24.7 53 484.0 9.1 0.99 1038.91 2000.00 12.1 1.41 1115.86 2000.00
24.7 53 569.0 7.7 0.99 1221.36 2000.00 10.3 1.41 1311.83 2000.00
27.2 48 612.0 7.2 0.90 1189.73 2000.00 9.5 1.28 1277.86 2000.00
27.2 48 718.0 6.1 0.90 1395.79 2000.00 8.1 1.28 1499.18 2000.00
27.2 48 843.0 5.2 0.90 1638.79 2000.00 6.9 1.28 1760.18 2000.00
27.2 48 990.0 4.4 0.90 1924.56 2000.00 5.9 1.28 2000.00 2000.00
27.2 48 1163.0 3.8 0.90 2000.00 2000.00 5.0 1.28 2000.00 2000.00
27.2 48 1365.0 3.2 0.90 2000.00 2000.00 4.3 1.28 2000.00 2000.00
27.2 48 1603.0 2.7 0.90 2000.00 2000.00 3.6 1.28 2000.00 2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-3500RPM Input 24V-5200RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 363.6 0.76 20.02 60.06 540.3 1.37 24.14 72.41
21.3 81 9.0 311.1 0.76 23.40 70.20 462.2 1.37 28.21 84.64
21.3 73 18.4 152.2 0.69 43.12 129.35 226.1 1.23 51.98 155.95
21.3 73 21.6 129.6 0.69 50.62 151.85 192.6 1.23 61.02 183.07
21.3 73 25.4 110.2 0.69 59.52 178.56 163.8 1.23 71.76 215.27
21.3 65.6 44.2 63.3 0.62 93.07 279.22 94.1 1.11 112.21 336.63
21.3 65.6 51.9 53.9 0.62 109.29 327.87 80.2 1.11 131.76 395.28
21.3 65.6 61.0 45.9 0.62 128.45 385.35 68.2 1.11 154.86 464.59
21.3 65.6 71.6 39.1 0.62 150.77 452.32 58.1 1.11 181.77 545.32
22.5 59 106.0 26.4 0.56 200.75 602.26 39.2 0.99 242.03 726.09
22.5 59 125.0 22.4 0.56 236.74 710.21 33.3 0.99 285.41 856.24
22.5 59 146.0 19.2 0.56 276.51 829.53 28.5 0.99 333.36 1000.09
22.5 59 172.0 16.3 0.56 325.75 977.25 24.2 0.99 392.73 1178.18
22.5 59 202.0 13.9 0.56 382.57 1147.70 20.6 0.99 461.23 1383.68
24.7 53 255.0 11.0 0.50 433.83 1301.49 16.3 0.89 523.03 1569.09
24.7 53 299.0 9.4 0.50 508.69 1526.07 13.9 0.89 613.28 1839.84
24.7 53 351.0 8.0 0.50 597.16 1791.47 11.9 0.89 719.94 2000.00
24.7 53 413.0 6.8 0.50 702.64 2000.00 10.1 0.89 847.10 2000.00
24.7 53 484.0 5.8 0.50 823.43 2000.00 8.6 0.89 992.73 2000.00
24.7 53 569.0 4.9 0.50 968.04 2000.00 7.3 0.89 1167.08 2000.00
27.2 48 612.0 4.6 0.45 942.97 2000.00 6.8 0.81 1136.85 2000.00
27.2 48 718.0 3.9 0.45 1106.29 2000.00 5.8 0.81 1333.76 2000.00
27.2 48 843.0 3.3 0.45 1298.89 2000.00 4.9 0.81 1565.96 2000.00
27.2 48 990.0 2.8 0.45 1525.39 2000.00 4.2 0.81 1839.02 2000.00
27.2 48 1163.0 2.4 0.45 1791.95 2000.00 3.6 0.81 2000.00 2000.00
27.2 48 1365.0 2.1 0.45 2000.00 2000.00 3.0 0.81 2000.00 2000.00
27.2 48 1603.0 1.7 0.45 2000.00 2000.00 2.6 0.81 2000.00 2000.00

Please let us know your requirements and we will provide you with transmission solutions.

Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm

Low Rpm 5W 12V DC Reversible Electric Gear Motor 50rpm 45rpm
