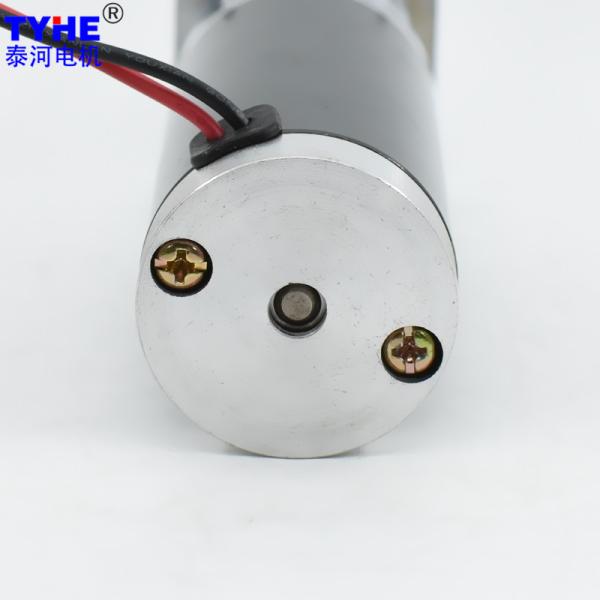

25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
Specifications
Brand Name :
TYHE
Model Number :
TJP37FOO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
3-24V
Speed :
100rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
lifting socket
Keywords :
Speed Adjustable 37mm Gearbox high torque high power 7.4v 12v 24v 25watts Brushed dc spur geared motor
Description

Products Description

Speed Adjustable 37mm Gearbox High Torque High Power 7.4v 12v 24v 25watts Brushed Dc Spur Geared Motor

2D drawing

25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable


25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3879 12 4500 350 3600 1.23 24.50 9.24 62.83 73.50 7.00
ZY3879 12 5000 400 4000 1.35 24.50 10.26 63.34 73.50 7.50
ZY3879 12 8000 900 6400 2.65 29.70 19.90 62.59 89.10 13.00
ZY3879 24 3500 100 2800 0.48 24.90 7.30 63.37 74.70 3.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 439.0 7.48 162.73 488.19 487.8 8.31 162.73 488.19
25.5 73 11.7 307.7 6.74 209.25 627.76 341.9 7.49 209.25 627.76
25.5 73 14.7 244.9 6.74 262.91 788.73 272.1 7.49 262.91 788.73
25.5 73 19.1 188.5 6.74 341.60 1024.81 209.4 7.49 341.60 1024.81
27.5 65.6 27.2 132.4 6.06 437.16 1311.48 147.1 6.73 437.16 1311.48
27.5 65.6 34.4 104.7 6.06 552.88 1658.63 116.3 6.73 552.88 1658.63
27.5 65.6 44.5 80.9 6.06 715.20 2145.61 89.9 6.73 715.20 2145.61
29.5 59 63.5 56.7 5.45 917.89 2500.00 63.0 6.05 917.89 2500.00
29.5 59 80.3 44.8 5.45 1160.74 2500.00 49.8 6.05 1160.74 2500.00
29.5 59 104.0 34.6 5.45 1503.32 2500.00 38.5 6.05 1503.32 2500.00
32.5 53 148.0 24.3 4.89 1921.78 2500.00 27.0 5.44 1921.78 2500.00
32.5 53 187.0 19.3 4.89 2428.20 2500.00 21.4 5.44 2428.20 2500.00
32.5 53 242.0 14.9 4.89 2500.00 2500.00 16.5 5.44 2500.00 2500.00
35.5 47.8 346.0 10.4 4.41 2500.00 2500.00 11.6 4.91 2500.00 2500.00
35.5 47.8 437.0 8.2 4.41 2500.00 2500.00 9.2 4.91 2500.00 2500.00
35.5 47.8 565.0 6.4 4.41 2500.00 2500.00 7.1 4.91 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-8000RPM Input 24V-3500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 780.5 16.12 197.27 591.80 341.5 5.91 165.39 496.16
25.5 73 11.7 547.0 14.53 253.67 761.00 239.3 5.33 212.67 638.01
25.5 73 14.7 435.4 14.53 318.71 956.13 190.5 5.33 267.20 801.61
25.5 73 19.1 335.1 14.53 414.11 1242.32 146.6 5.33 347.18 1041.54
27.5 65.6 27.2 235.3 13.06 529.94 1589.83 102.9 4.79 444.30 1332.89
27.5 65.6 34.4 186.0 13.06 670.22 2010.67 81.4 4.79 561.90 1685.71
27.5 65.6 44.5 143.8 13.06 867.00 2500.00 62.9 4.79 726.88 2180.64
29.5 59 63.5 100.8 11.74 1112.71 2500.00 44.1 4.31 932.88 2500.00
29.5 59 80.3 79.7 11.74 1407.10 2500.00 34.9 4.31 1179.69 2500.00
29.5 59 104.0 61.5 11.74 1822.39 2500.00 26.9 4.31 1527.86 2500.00
32.5 53 148.0 43.2 10.55 2329.67 2500.00 18.9 3.87 1953.16 2500.00
32.5 53 187.0 34.2 10.55 2500.00 2500.00 15.0 3.87 2467.84 2500.00
32.5 53 242.0 26.4 10.55 2500.00 2500.00 11.6 3.87 2500.00 2500.00
35.5 47.8 346.0 18.5 9.51 2500.00 2500.00 8.1 3.49 2500.00 2500.00
35.5 47.8 437.0 14.6 9.51 2500.00 2500.00 6.4 3.49 2500.00 2500.00
35.5 47.8 565.0 11.3 9.51 2500.00 2500.00 5.0 3.49 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable

25W Brushed DC Spur Gear Motor 7.4V 24V Brushed DC Motor Speed Adjustable
