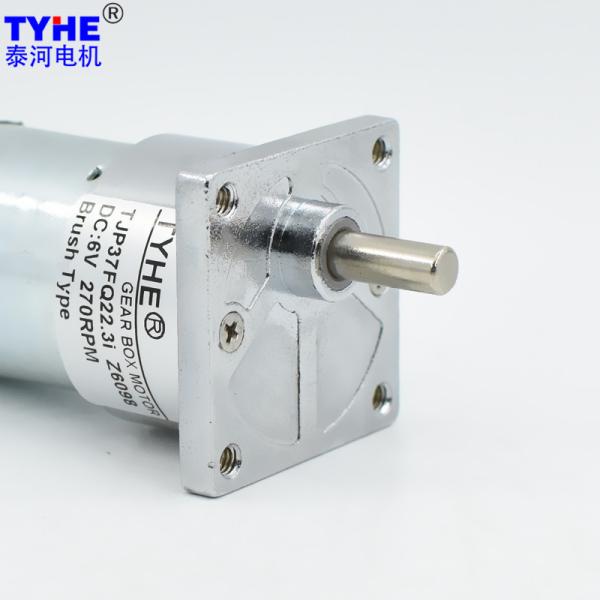

Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
Specifications
Brand Name :
TYHE
Model Number :
TJP37FQ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
3-24V
Speed :
70rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy, Steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
Grill machine
Keywords :
Grill Machine Full Steel Gear 37mm Dia Brushed 6 Volt 6v 300 Rpm Dc Gear Motor
Description

Products Description

Grill Machine Full Steel Gear 37mm Dia Brushed 6 Volt 6v 300 Rpm Dc Gear Motor

2D drawing

Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque


Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3330 6 6000 100 4800 0.30 2.23 1.12 62.27 6.69 1.70
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 585.4 0.91 14.81 44.43
25.5 81 9.5 505.3 0.91 17.16 51.48
25.5 73 14.7 326.5 0.82 23.93 71.79
25.5 73 22.3 215.2 0.82 36.30 108.91
25.5 73 24.5 195.9 0.82 39.88 119.65
27.5 65.6 27.2 176.5 0.74 39.79 119.37
27.5 65.6 34.4 139.5 0.74 50.32 150.97
27.5 65.6 44.5 107.9 0.74 65.10 195.29
27.5 65.6 52.0 92.3 0.74 76.07 228.21
27.5 65.6 57.0 84.2 0.74 83.38 250.15
27.5 65.6 63.0 76.2 0.74 92.16 276.48
29.5 59 80.3 59.8 0.66 105.65 316.95
29.5 59 104.0 46.2 0.66 136.83 410.50
29.5 59 121.0 39.7 0.66 159.20 477.60
29.5 59 134.0 35.8 0.66 176.30 528.91
29.5 59 147.0 32.7 0.66 193.41 580.22
29.5 59 162.0 29.6 0.66 213.14 639.43
32.5 53 187.0 25.7 0.59 221.02 663.05
32.5 53 242.0 19.8 0.59 286.02 858.06
32.5 53 283.0 17.0 0.59 334.48 1003.43
32.5 53 312.0 15.4 0.59 368.75 1106.26
32.5 53 344.0 14.0 0.59 406.57 1219.72
32.5 53 379.0 12.7 0.59 447.94 1343.82
32.5 53 417.0 11.5 0.59 492.85 1478.56
35.5 47.8 437.0 11.0 0.54 465.82 1397.45
35.5 47.8 565.0 8.5 0.54 602.26 1806.77
35.5 47.8 660.0 7.3 0.54 703.52 2110.56
35.5 47.8 728.0 6.6 0.54 776.00 2328.01
35.5 47.8 802.0 6.0 0.54 854.88 2500.00
35.5 47.8 884.0 5.4 0.54 942.29 2500.00
35.5 47.8 974.0 4.9 0.54 1038.23 2500.00
35.5 47.8 1073.0 4.5 0.54 1143.75 2500.00
32.5 43 1540.0 3.1 0.48 1476.71 2500.00
32.5 43 1698.0 2.8 0.48 1628.21 2500.00
32.5 43 1871.0 2.6 0.48 1794.10 2500.00
32.5 43 2062.0 2.3 0.48 1977.25 2500.00
32.5 43 2272.0 2.1 0.48 2178.62 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque

Grill Machine Full Steel Gear 37mm DC Motor 6V 300 Rpm High Torque
