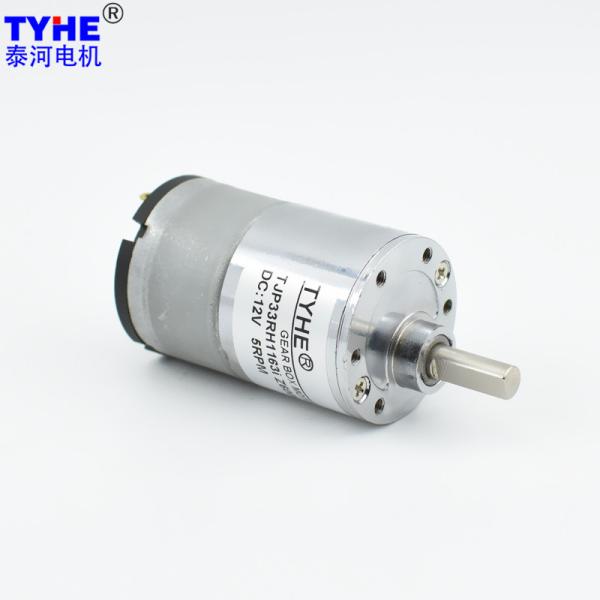

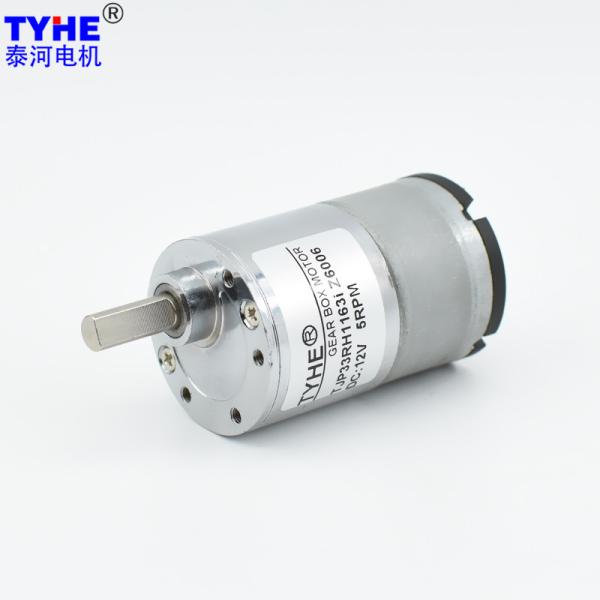

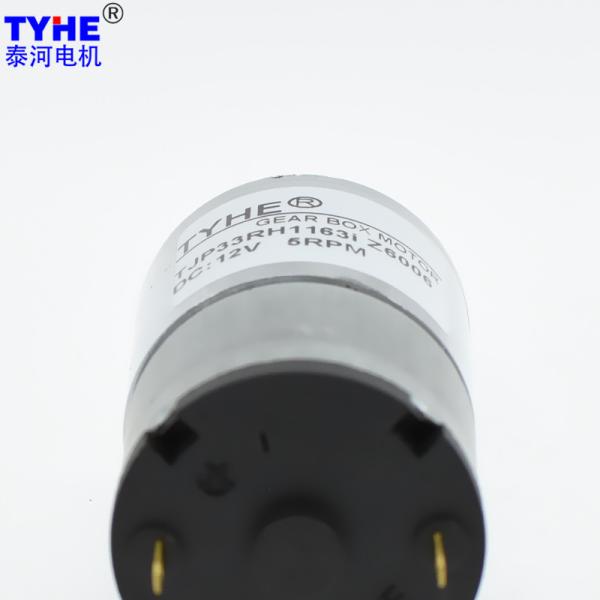

Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJP33RH
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
33mm
Voltage :
3-24V
Speed :
Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
kitchen appliances
Keywords :
Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
Description

Products Description

Powder Gears High Torque Low Noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor

2D drawing

Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor


Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3324 6 7000 80 5600 0.37 2.35 1.38 62.78 7.05 2.95
ZY3324 7 4000 30 3200 0.14 1.79 0.60 62.70 5.37 1.10
ZY3324 12 5500 38 4400 0.13 2.13 0.98 64.82 6.39 0.83
ZY3324 12 7300 64 5840 0.27 3.24 1.98 61.30 9.72 2.08
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 6V-7000RPM Input 7V-4000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 727.3 1.12 14.66 43.97 415.6 0.49 11.16 33.49
21.3 81 9.0 622.2 1.12 17.13 51.39 355.6 0.49 13.05 39.15
21.3 73 18.4 304.3 1.01 31.57 94.70 173.9 0.44 24.04 72.13
21.3 73 21.6 259.3 1.01 37.05 111.16 148.1 0.44 28.22 84.67
21.3 73 25.4 220.5 1.01 43.57 130.72 126.0 0.44 33.19 99.57
21.3 65.6 44.2 126.7 0.90 68.14 204.42 72.4 0.39 51.90 155.70
21.3 65.6 51.9 107.9 0.90 80.01 240.03 61.7 0.39 60.94 182.83
21.3 65.6 61.0 91.8 0.90 94.04 282.11 52.5 0.39 71.63 214.89
21.3 65.6 71.6 78.2 0.90 110.38 331.14 44.7 0.39 84.08 252.23
22.5 59 106.0 52.8 0.81 146.97 440.91 30.2 0.35 111.95 335.84
22.5 59 125.0 44.8 0.81 173.31 519.94 25.6 0.35 132.01 396.04
22.5 59 146.0 38.4 0.81 202.43 607.29 21.9 0.35 154.19 462.57
22.5 59 172.0 32.6 0.81 238.48 715.43 18.6 0.35 181.65 544.95
22.5 59 202.0 27.7 0.81 280.07 840.22 15.8 0.35 213.33 640.00
24.7 53 255.0 22.0 0.73 317.60 952.81 12.5 0.32 241.92 725.76
24.7 53 299.0 18.7 0.73 372.40 1117.21 10.7 0.32 283.66 850.98
24.7 53 351.0 16.0 0.73 437.17 1311.51 9.1 0.32 332.99 998.98
24.7 53 413.0 13.6 0.73 514.39 1543.17 7.7 0.32 391.81 1175.44
24.7 53 484.0 11.6 0.73 602.82 1808.47 6.6 0.32 459.17 1377.51
24.7 53 569.0 9.8 0.73 708.69 2000.00 5.6 0.32 539.81 1619.43
27.2 48 612.0 9.2 0.66 690.34 2000.00 5.2 0.29 525.83 1577.49
27.2 48 718.0 7.8 0.66 809.90 2000.00 4.5 0.29 616.91 1850.72
27.2 48 843.0 6.6 0.66 950.90 2000.00 3.8 0.29 724.31 2000.00
27.2 48 990.0 5.7 0.66 1116.72 2000.00 3.2 0.29 850.61 2000.00
27.2 48 1163.0 4.8 0.66 1311.86 2000.00 2.8 0.29 999.25 2000.00
27.2 48 1365.0 4.1 0.66 1539.72 2000.00 2.3 0.29 1172.81 2000.00
27.2 48 1603.0 3.5 0.66 1808.18 2000.00 2.0 0.29 1377.30 2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5500RPM Input 12V-7300RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
21.3 81 7.7 571.4 0.79 13.28 39.85 758.4 1.60 20.21 60.62
21.3 81 9.0 488.9 0.79 15.53 46.58 648.9 1.60 23.62 70.86
21.3 73 18.4 239.1 0.72 28.61 85.83 317.4 1.45 43.52 130.56
21.3 73 21.6 203.7 0.72 33.59 100.76 270.4 1.45 51.09 153.26
21.3 73 25.4 173.2 0.72 39.49 118.48 229.9 1.45 60.08 180.23
21.3 65.6 44.2 99.5 0.64 61.76 185.28 132.1 1.30 93.94 281.83
21.3 65.6 51.9 84.8 0.64 72.52 217.56 112.5 1.30 110.31 330.93
21.3 65.6 61.0 72.1 0.64 85.23 255.70 95.7 1.30 129.65 388.96
21.3 65.6 71.6 61.5 0.64 100.05 300.14 81.6 1.30 152.18 456.54
22.5 59 106.0 41.5 0.58 133.21 399.63 55.1 1.17 202.63 607.89
22.5 59 125.0 35.2 0.58 157.09 471.26 46.7 1.17 238.95 716.85
22.5 59 146.0 30.1 0.58 183.48 550.43 40.0 1.17 279.09 837.28
22.5 59 172.0 25.6 0.58 216.15 648.46 34.0 1.17 328.80 986.39
22.5 59 202.0 21.8 0.58 253.85 761.56 28.9 1.17 386.14 1158.43
24.7 53 255.0 17.3 0.52 287.87 863.61 22.9 1.05 437.89 1313.66
24.7 53 299.0 14.7 0.52 337.54 1012.62 19.5 1.05 513.44 1540.33
24.7 53 351.0 12.5 0.52 396.24 1188.73 16.6 1.05 602.74 1808.21
24.7 53 413.0 10.7 0.52 466.24 1398.71 14.1 1.05 709.20 2000.00
24.7 53 484.0 9.1 0.52 546.39 1639.16 12.1 1.05 831.12 2000.00
24.7 53 569.0 7.7 0.52 642.34 1927.03 10.3 1.05 977.09 2000.00
27.2 48 612.0 7.2 0.47 625.71 1877.13 9.5 0.95 951.78 2000.00
27.2 48 718.0 6.1 0.47 734.08 2000.00 8.1 0.95 1116.63 2000.00
27.2 48 843.0 5.2 0.47 861.88 2000.00 6.9 0.95 1311.03 2000.00
27.2 48 990.0 4.4 0.47 1012.18 2000.00 5.9 0.95 1539.65 2000.00
27.2 48 1163.0 3.8 0.47 1189.05 2000.00 5.0 0.95 1808.70 2000.00
27.2 48 1365.0 3.2 0.47 1395.58 2000.00 4.3 0.95 2000.00 2000.00
27.2 48 1603.0 2.7 0.47 1638.91 2000.00 3.6 0.95 2000.00 2000.00

Please let us know your requirements and we will provide you with transmission solutions.

Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor

Powder gears High Torque low noise 33mm Dia 1w 3w 5w 60 Rpm Dc Gear Motor
