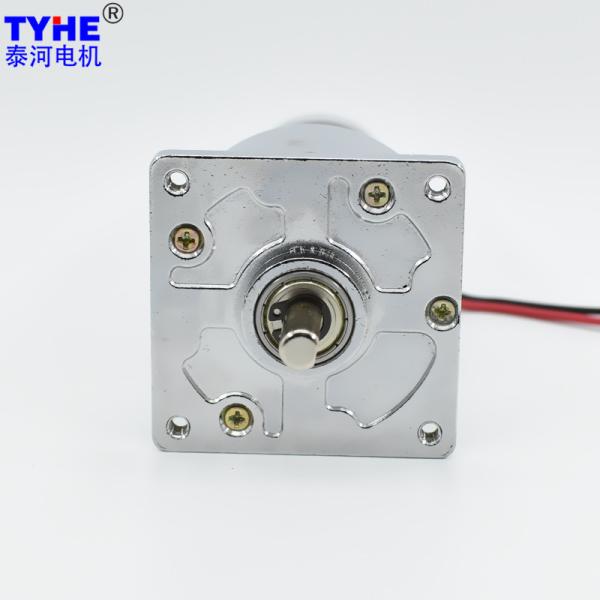

IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
Specifications
Brand Name :
TYHE
Model Number :
TJZ60FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm
Voltage :
12-24V
Speed :
Customized
Torque :
10N.m
Gear material :
Steel
Commutation :
Brush
Type :
Gear Motor, Micro Motor
Usage :
head-up display, vehicle sunroof
Keywords :
IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
Description

Products Description

IE3 Full Steel Big Power 60mm Size 25w 12v 24v Brushed Dc Small Gear Motor For Vehicle Sunroof

2D drawing

IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof


IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
ZY3864 24 4500 130 3600 0.46 18.20 6.86 62.83 54.60 2.60
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 786.2 7.66 93.02 279.06 827.6 8.26 95.37 286.11
28.5 81 6.8 670.6 7.66 109.06 327.18 705.9 8.26 111.81 335.44
28.5 81 7.9 577.2 7.66 126.70 380.10 607.6 8.26 129.90 389.70
28.5 81 8.8 518.2 7.66 141.13 423.40 545.5 8.26 144.70 434.10
28.5 81 9.8 465.3 7.66 157.17 471.52 489.8 8.26 161.14 483.42
28.5 81 10.5 434.3 7.66 168.40 505.20 457.1 8.26 172.65 517.95
28.5 81 11.6 393.1 7.66 186.04 558.12 413.8 8.26 190.74 572.22
33.5 73 18.6 245.2 6.90 268.84 806.53 258.1 7.45 275.63 826.90
33.5 73 24.0 190.0 6.90 346.90 1040.69 200.0 7.45 355.66 1066.97
33.5 73 28.0 162.9 6.90 404.71 1214.14 171.4 7.45 414.93 1244.80
33.5 73 33.6 135.7 6.90 485.65 1456.96 142.9 7.45 497.92 1493.76
36 65.6 60.0 76.0 6.20 779.33 2337.98 80.0 6.69 799.01 2397.02
36 65.6 71.0 64.2 6.20 922.20 2766.61 67.6 6.69 945.49 2836.48
36 65.6 83.0 54.9 6.20 1078.07 3234.21 57.8 6.69 1105.29 3315.88
36 65.6 91.0 50.1 6.20 1181.98 3545.94 52.7 6.69 1211.83 3635.49
36 65.6 100.0 45.6 6.20 1298.88 3896.64 48.0 6.69 1331.68 3995.04
36 65.6 108.0 42.2 6.20 1402.79 4208.37 44.4 6.69 1438.21 4314.64
36 65.6 118.0 38.6 6.20 1532.68 4598.04 40.7 6.69 1571.38 4714.15
40 59 191.0 23.9 5.58 2231.26 6693.79 25.1 6.02 2287.61 6862.82
40 59 226.0 20.2 5.58 2640.13 7920.40 21.2 6.02 2706.80 8120.41
40 59 265.0 17.2 5.58 3095.73 9287.19 18.1 6.02 3173.91 9521.72
40 59 288.0 15.8 5.58 3364.42 10093.25 16.7 6.02 3449.38 10348.13
40 59 345.0 13.2 5.58 4030.29 12090.87 13.9 6.02 4132.07 12396.20
40 59 379.0 12.0 5.58 4427.48 13282.43 12.7 6.02 4539.28 13617.85
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-4500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 620.7 5.56 85.50 256.51 689.7 6.62 91.61 274.83
28.5 81 6.8 529.4 5.56 100.25 300.74 588.2 6.62 107.41 322.22
28.5 81 7.9 455.7 5.56 116.46 349.39 506.3 6.62 124.78 374.34
28.5 81 8.8 409.1 5.56 129.73 389.19 454.5 6.62 139.00 416.99
28.5 81 9.8 367.3 5.56 144.47 433.41 408.2 6.62 154.79 464.37
28.5 81 10.5 342.9 5.56 154.79 464.37 381.0 6.62 165.85 497.54
28.5 81 11.6 310.3 5.56 171.01 513.02 344.8 6.62 183.22 549.67
33.5 73 18.6 193.5 5.01 247.12 741.36 215.1 5.96 264.77 794.31
33.5 73 24.0 150.0 5.01 318.86 956.59 166.7 5.96 341.64 1024.92
33.5 73 28.0 128.6 5.01 372.01 1116.02 142.9 5.96 398.58 1195.74
33.5 73 33.6 107.1 5.01 446.41 1339.23 119.0 5.96 478.30 1434.89
36 65.6 60.0 60.0 4.50 716.35 2149.06 66.7 5.36 767.52 2302.56
36 65.6 71.0 50.7 4.50 847.68 2543.05 56.3 5.36 908.23 2724.70
36 65.6 83.0 43.4 4.50 990.95 2972.86 48.2 5.36 1061.74 3185.21
36 65.6 91.0 39.6 4.50 1086.47 3259.40 44.0 5.36 1164.07 3492.22
36 65.6 100.0 36.0 4.50 1193.92 3581.76 40.0 5.36 1279.20 3837.60
36 65.6 108.0 33.3 4.50 1289.43 3868.30 37.0 5.36 1381.54 4144.61
36 65.6 118.0 30.5 4.50 1408.83 4226.48 33.9 5.36 1509.46 4528.37
40 59 191.0 18.8 4.05 2050.96 6152.87 20.9 4.82 2197.46 6592.37
40 59 226.0 15.9 4.05 2426.79 7280.36 17.7 4.82 2600.13 7800.39
40 59 265.0 13.6 4.05 2845.57 8536.71 15.1 4.82 3048.83 9146.48
40 59 288.0 12.5 4.05 3092.54 9277.63 13.9 4.82 3313.44 9940.32
40 59 345.0 10.4 4.05 3704.61 11113.83 11.6 4.82 3969.23 11907.68
40 59 379.0 9.5 4.05 4069.70 12209.11 10.6 4.82 4360.40 13081.19

Please let us know your requirements and we will provide you with transmission solutions.

IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof

IE3 full steel big power 60mm size 25w 12v 24v brushed dc small gear motor for vehicle sunroof
