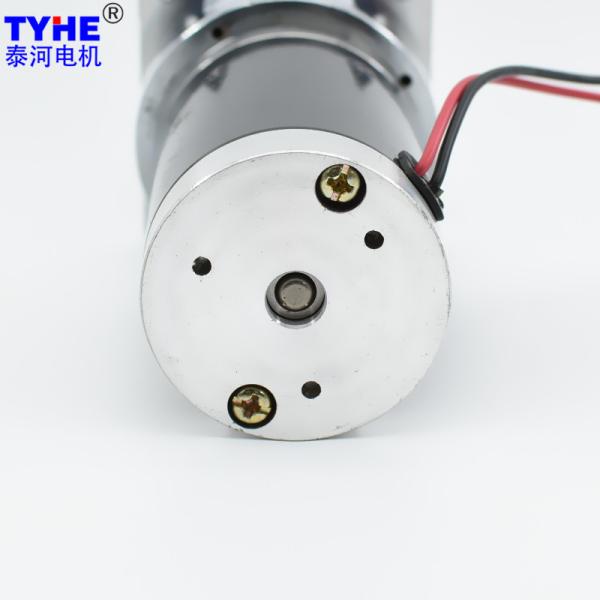

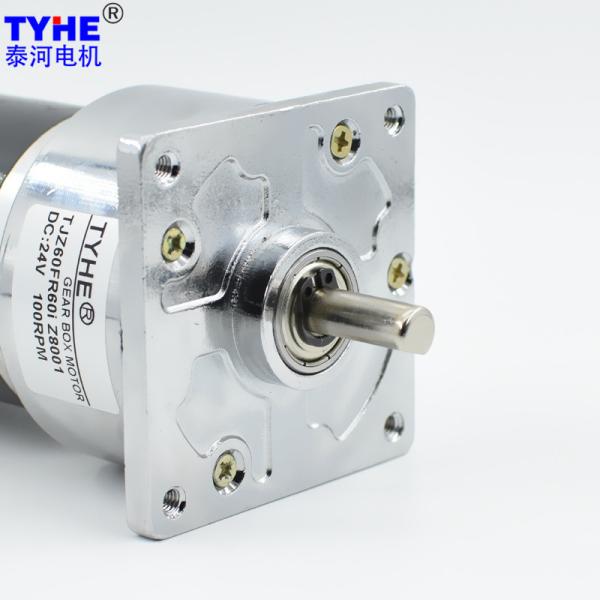

Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJZ60FR
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm size
Voltage :
12-24V
Speed :
10-1000rpm
Torque :
11N.m
Gear material :
Steel gears
Commutation :
Brushes
Type :
DC Gear Motor
Usage :
Air conditioning, dustbin, coffee machine
Keywords :
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Description

Products Description

Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor

2D drawing

Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor

Model End cover dimensions Motor type Regular Shaft Weight
TJZ60FR 60*60mm TH5078 8mm-D cut 800g


Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY5078 12 6000 1030 4800 4.00 60.19 30.25 63.11 180.57 29.40
ZY5078 12 6500 1300 5200 4.98 69.52 37.85 63.30 208.56 36.40
ZY5078 24 5000 470 4000 1.68 60.35 25.28 62.54 181.05 11.75
ZY5078 24 6000 610 4800 2.19 67.39 33.87 64.57 202.17 15.25
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-6000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 827.6 24.50 282.77 848.32 896.6 30.66 326.60 979.81
28.5 81 6.8 705.9 24.50 331.53 994.58 764.7 30.66 382.92 1148.75
28.5 81 7.9 607.6 24.50 385.16 1155.47 658.2 30.66 444.86 1334.58
28.5 81 8.8 545.5 24.50 429.03 1287.10 590.9 30.66 495.54 1486.62
28.5 81 9.8 489.8 24.50 477.79 1433.36 530.6 30.66 551.85 1655.55
28.5 81 10.5 457.1 24.50 511.92 1535.75 495.2 30.66 591.27 1773.80
28.5 81 11.6 413.8 24.50 565.55 1696.64 448.3 30.66 653.21 1959.63
33.5 73 18.6 258.1 22.08 817.26 2451.78 279.6 27.63 943.94 2831.83
33.5 73 24.0 200.0 22.08 1054.53 3163.59 216.7 27.63 1217.99 3653.97
33.5 73 28.0 171.4 22.08 1230.28 3690.85 185.7 27.63 1420.99 4262.97
33.5 73 33.6 142.9 22.08 1476.34 4429.02 154.8 27.63 1705.19 5115.56
36 65.6 60.0 80.0 19.85 2369.08 7107.24 86.7 24.83 2736.31 8208.92
36 65.6 71.0 67.6 19.85 2803.41 8410.23 73.2 24.83 3237.96 9713.89
36 65.6 83.0 57.8 19.85 3277.23 9831.68 62.7 24.83 3785.22 11355.67
36 65.6 91.0 52.7 19.85 3593.10 10779.31 57.1 24.83 4150.07 12450.20
36 65.6 100.0 48.0 19.85 3948.46 11845.39 52.0 24.83 4560.51 13681.54
36 65.6 108.0 44.4 19.85 4264.34 12793.02 48.1 24.83 4925.35 14776.06
36 65.6 118.0 40.7 19.85 4659.19 13977.56 44.1 24.83 5381.40 15000.00
40 59 191.0 25.1 17.85 6782.81 15000.00 27.2 22.33 7834.21 15000.00
40 59 226.0 21.2 17.85 8025.73 15000.00 23.0 22.33 9269.80 15000.00
40 59 265.0 18.1 17.85 9410.71 15000.00 19.6 22.33 10869.45 15000.00
40 59 288.0 16.7 17.85 10227.48 15000.00 18.1 22.33 11812.84 15000.00
40 59 345.0 13.9 17.85 12251.67 15000.00 15.1 22.33 14150.80 15000.00
40 59 379.0 12.7 17.85 13459.09 15000.00 13.7 22.33 15000.00 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 689.7 20.47 283.52 850.57 827.6 27.44 316.60 949.79
28.5 81 6.8 588.2 20.47 332.41 997.22 705.9 27.44 371.18 1113.55
28.5 81 7.9 506.3 20.47 386.18 1158.54 607.6 27.44 431.23 1293.69
28.5 81 8.8 454.5 20.47 430.17 1290.52 545.5 27.44 480.36 1441.07
28.5 81 9.8 408.2 20.47 479.06 1437.17 489.8 27.44 534.94 1604.83
28.5 81 10.5 381.0 20.47 513.28 1539.83 457.1 27.44 573.15 1719.46
28.5 81 11.6 344.8 20.47 567.05 1701.15 413.8 27.44 633.20 1899.59
33.5 73 18.6 215.1 18.45 819.43 2458.30 258.1 24.73 915.02 2745.06
33.5 73 24.0 166.7 18.45 1057.33 3172.00 200.0 24.73 1180.67 3542.02
33.5 73 28.0 142.9 18.45 1233.55 3700.66 171.4 24.73 1377.45 4132.35
33.5 73 33.6 119.0 18.45 1480.26 4440.79 142.9 24.73 1652.94 4958.83
36 65.6 60.0 66.7 16.58 2375.38 7126.13 80.0 22.22 2652.47 7957.41
36 65.6 71.0 56.3 16.58 2810.86 8432.58 67.6 22.22 3138.76 9416.27
36 65.6 83.0 48.2 16.58 3285.94 9857.81 57.8 22.22 3669.25 11007.75
36 65.6 91.0 44.0 16.58 3602.65 10807.96 52.7 22.22 4022.91 12068.74
36 65.6 100.0 40.0 16.58 3958.96 11876.88 48.0 22.22 4420.78 13262.35
36 65.6 108.0 37.0 16.58 4275.68 12827.03 44.4 22.22 4774.45 14323.34
36 65.6 118.0 33.9 16.58 4671.57 14014.72 40.7 22.22 5216.53 15000.00
40 59 191.0 20.9 14.91 6800.84 15000.00 25.1 19.98 7594.18 15000.00
40 59 226.0 17.7 14.91 8047.07 15000.00 21.2 19.98 8985.78 15000.00
40 59 265.0 15.1 14.91 9435.72 15000.00 18.1 19.98 10536.43 15000.00
40 59 288.0 13.9 14.91 10254.67 15000.00 16.7 19.98 11450.91 15000.00
40 59 345.0 11.6 14.91 12284.24 15000.00 13.9 19.98 13717.23 15000.00
40 59 379.0 10.6 14.91 13494.86 15000.00 12.7 19.98 15000.00 15000.00

Please let us know your requirements and we will provide you with transmission solutions.

Company Profile

WenZhou TYHE Motor Co.,ltd. was established in May, 2010 and is located in WenZhou, China. TYHE covers an area of 3500㎡. And we have excellent teams who focus on R&D, QC and company operation.

  1. 11 years experiences in dc gear motor industry.
  2. Accept OEM or ODM orders.
  3. 5 days lead time for samples.
  4. Monthly capacity is ≥500000pcs.
  5. Warranty: one year.
  6. 10 R&D engineers offer professional solutions.
  7. Fast delivery time base on different quantities.
  8. CE, ROHS and ISO9001 certificated.
