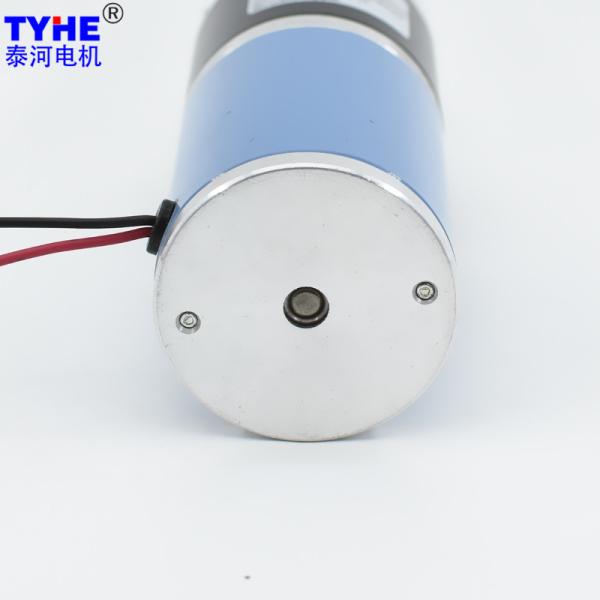

Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt
Specifications
Brand Name :
TYHE
Model Number :
TJX45RN
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
D45mm diameter
Voltage :
12~24v or customized
Speed :
1-2000rpm Customized
Torque :
19N.m
Gear material :
Steel gears
Commutation :
Brush
Type :
DC Planetary Gear Motor
Keywords :
Factory 12v 50 Watt 100kg 150 Kg.Cm Load 800 Rpm 1 Rpm Clock Dc Tubular Planetary Metal Gear Reduction Motor With CE
Description

Products Description

Factory 12v 50 Watt 100kg 150 Kg.Cm Load 800 Rpm 1 Rpm Clock Dc Tubular Planetary Metal Gear Reduction Motor With CE

2D drawing

Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt


Tubular 150Kg.Cm Planetary 12V Gear Reduction Motor 800 Rpm 1 Rpm 50 Watt

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY4564 12 3500 300 2800 1.08 27.50 8.06 62.50 82.50 7.50
ZY4564 12 5100 610 4080 2.19 38.00 16.23 61.89 114.00 15.25
ZY4564 24 6000 500 4800 1.92 59.80 30.06 65.34 179.40 14.00
ZY4564 24 7000 570 5600 2.23 57.00 33.42 62.38 171.00 16.53
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 12V-3500RPM Input 12V-5100RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
29.7 90 3.7 756.8 7.26 91.58 274.73 1102.7 14.61 126.54 379.62
29.7 90 5.2 538.5 7.26 128.70 386.10 784.6 14.61 177.84 533.52
39.4 81 13.7 204.4 6.53 305.17 915.50 297.8 13.15 421.69 1265.06
39.4 81 19.2 145.8 6.53 427.68 1283.04 212.5 13.15 590.98 1772.93
39.4 81 26.9 104.1 6.53 599.20 1797.59 151.7 13.15 827.98 2483.95
39.4 81 35.0 80.0 6.53 779.63 2338.88 116.6 13.15 1077.30 3231.90
49.1 73 51.0 54.9 5.89 1023.83 3071.48 80.0 11.85 1414.74 4244.22
49.1 73 71.0 39.4 5.89 1425.33 4275.98 57.5 11.85 1969.54 5908.62
49.1 73 100.0 28.0 5.89 2007.50 6022.50 40.8 11.85 2774.00 8322.00
49.1 73 139.0 20.1 5.89 2790.43 8371.28 29.4 11.85 3855.86 11567.58
60.3 65.6 189.0 14.8 5.29 3409.56 10228.68 21.6 10.65 4711.39 14134.18
60.3 65.6 264.0 10.6 5.29 4762.56 14287.68 15.5 10.65 6580.99 19742.98
60.3 65.6 369.0 7.6 5.29 6656.76 19970.28 11.1 10.65 9198.43 27595.30
60.3 65.6 514.0 5.4 5.29 9272.56 27817.68 7.9 10.65 12812.99 33000.00
60.3 65.6 721.0 3.9 5.29 13006.84 33000.00 5.7 10.65 17973.09 33000.00
71.5 59 699.0 4.0 4.76 11341.28 33000.00 5.8 9.58 15671.58 33000.00
71.5 59 977.0 2.9 4.76 15851.83 33000.00 4.2 9.58 21904.34 33000.00
71.5 59 1367.0 2.0 4.76 22179.58 33000.00 3.0 9.58 30648.14 33000.00
71.5 59 1911.0 1.5 4.76 31005.98 33000.00 2.1 9.58 33000.00 33000.00
71.5 59 2672.0 1.0 4.76 33000.00 33000.00 1.5 9.58 33000.00 33000.00
71.5 59 3736.0 0.7 4.76 33000.00 33000.00 1.1 9.58 33000.00 33000.00
DC Motor With Gearbox Technical Data (0.6M)
Gearbox parameters 24V-6000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
29.7 90 3.7 1297.3 27.05 199.13 597.40 1513.5 30.08 189.81 569.43
29.7 90 5.2 923.1 27.05 279.86 839.59 1076.9 30.08 266.76 800.28
39.4 81 13.7 350.4 24.35 663.60 1990.80 408.8 27.07 632.53 1897.59
39.4 81 19.2 250.0 24.35 930.01 2790.03 291.7 27.07 886.46 2659.39
39.4 81 26.9 178.4 24.35 1302.98 3908.95 208.2 27.07 1241.97 3725.92
39.4 81 35.0 137.1 24.35 1695.33 5085.99 160.0 27.07 1615.95 4847.85
49.1 73 51.0 94.1 21.94 2226.35 6679.06 109.8 24.40 2122.11 6366.33
49.1 73 71.0 67.6 21.94 3099.43 9298.30 78.9 24.40 2954.31 8862.93
49.1 73 100.0 48.0 21.94 4365.40 13096.20 56.0 24.40 4161.00 12483.00
49.1 73 139.0 34.5 21.94 6067.91 18203.72 40.3 24.40 5783.79 17351.37
60.3 65.6 189.0 25.4 19.72 7414.24 22242.73 29.6 21.93 7067.09 21201.26
60.3 65.6 264.0 18.2 19.72 10356.40 31069.21 21.2 21.93 9871.49 29614.46
60.3 65.6 369.0 13.0 19.72 14475.43 33000.00 15.2 21.93 13797.65 33000.00
60.3 65.6 514.0 9.3 19.72 20163.60 33000.00 10.9 21.93 19219.49 33000.00
60.3 65.6 721.0 6.7 19.72 28283.96 33000.00 7.8 21.93 26959.63 33000.00
71.5 59 699.0 6.9 17.73 24662.12 33000.00 8.0 19.72 23507.37 33000.00
71.5 59 977.0 4.9 17.73 33000.00 33000.00 5.7 19.72 32856.51 33000.00
71.5 59 1367.0 3.5 17.73 33000.00 33000.00 4.1 19.72 33000.00 33000.00
71.5 59 1911.0 2.5 17.73 33000.00 33000.00 2.9 19.72 33000.00 33000.00
71.5 59 2672.0 1.8 17.73 33000.00 33000.00 2.1 19.72 33000.00 33000.00
71.5 59 3736.0 1.3 17.73 33000.00 33000.00 1.5 19.72 33000.00 33000.00

Please let us know your requirements and we will provide you with transmission solutions.
