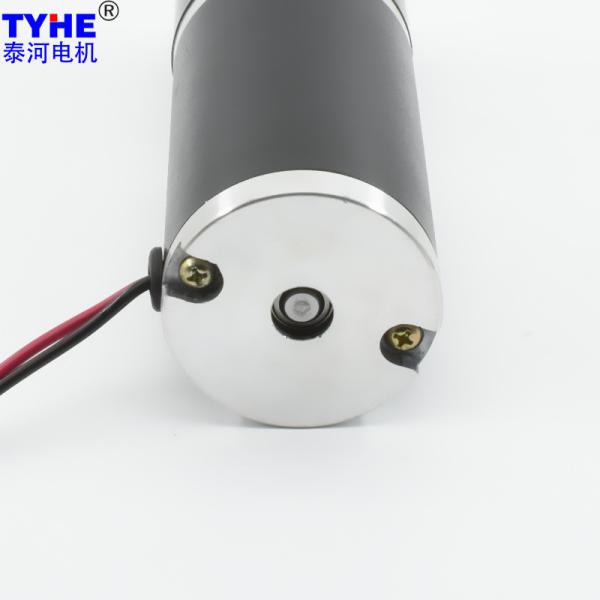

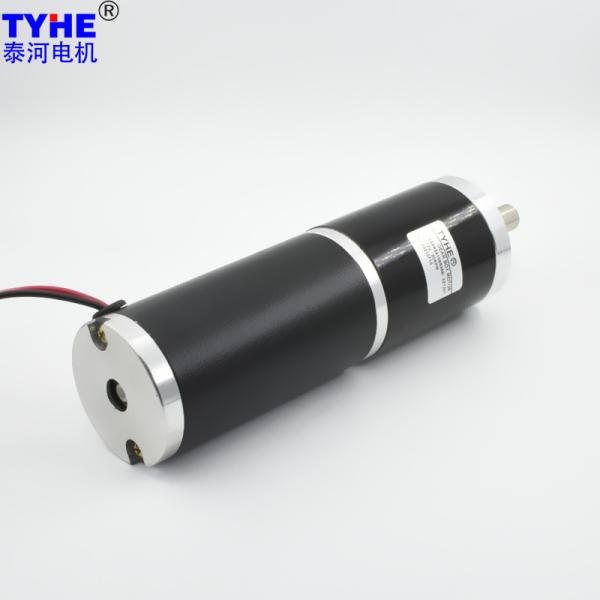

200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
Specifications
Brand Name :
TYHE
Model Number :
TJX55R54106S
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
55mm
Voltage :
12-24v or customized
Speed :
1-1200rpm Customized
Torque :
35N.m
Gear material :
Steel gear
Commutation :
Brushes
Type :
Planetary Gear Motor
Keywords :
Reversible 55mm 200kg.Cm 25nm 30nm 40nm High Torque 12v 24v Dc Planetary Geared Motor For Door
Description

Products Description

Reversible 55mm 200kg.Cm 25nm 30nm 40nm High Torque 12v 24v Dc Planetary Geared Motor For Door

2D drawing

200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm


200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY54106 12 7000 1950 5600 9.08 125.67 73.69 67.67 377.01 37.50
ZY54106 24 7000 980 5600 4.89 129.64 76.02 64.74 388.92 21.50
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 12V-7000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
31.8 90 3.7 1513.5 66.32 418.48 1255.44 1513.5 68.42 431.70 1295.10
31.8 90 5.2 1076.9 66.32 588.14 1764.41 1076.9 68.42 606.72 1820.15
44 81 13.7 408.8 59.69 1394.56 4183.68 408.8 61.58 1438.62 4315.85
44 81 19.2 291.7 59.69 1954.42 5863.26 291.7 61.58 2016.16 6048.48
44 81 26.9 208.2 59.69 2738.22 8214.67 208.2 61.58 2824.73 8474.18
44 81 35.0 160.0 59.69 3562.74 10688.23 160.0 61.58 3675.29 11025.88
57.5 73 51.0 109.8 53.79 4678.69 14036.08 109.8 55.49 4826.50 14479.49
57.5 73 71.0 78.9 53.79 6513.48 19540.43 78.9 55.49 6719.24 20157.72
57.5 73 100.0 56.0 53.79 9173.91 27521.73 56.0 55.49 9463.72 28391.16
57.5 73 139.0 40.3 53.79 12751.73 38255.20 40.3 55.49 13154.57 39463.71
72.5 65.6 189.0 29.6 48.34 15581.07 46743.21 29.6 49.87 16073.29 48000.00
72.5 65.6 264.0 21.2 48.34 21764.03 48000.00 21.2 49.87 22451.57 48000.00
72.5 65.6 369.0 15.2 48.34 30420.18 48000.00 15.2 49.87 31381.18 48000.00
72.5 65.6 514.0 10.9 48.34 42373.91 48000.00 10.9 49.87 43712.53 48000.00
72.5 65.6 721.0 7.8 48.34 48000.00 48000.00 7.8 49.87 48000.00 48000.00
85.7 59 699.0 8.0 43.48 48000.00 48000.00 8.0 44.85 48000.00 48000.00
85.7 59 977.0 5.7 43.48 48000.00 48000.00 5.7 44.85 48000.00 48000.00
85.7 59 1367.0 4.1 43.48 48000.00 48000.00 4.1 44.85 48000.00 48000.00
85.7 59 1911.0 2.9 43.48 48000.00 48000.00 2.9 44.85 48000.00 48000.00
85.7 59 2672.0 2.1 43.48 48000.00 48000.00 2.1 44.85 48000.00 48000.00
85.7 59 3736.0 1.5 43.48 48000.00 48000.00 1.5 44.85 48000.00 48000.00

Please let us know your requirements and we will provide you with transmission solutions.

200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm

200kg.Cm DC Planetary Gear Motor 12 Volt Reversible Motor 25nm 30nm 40nm
