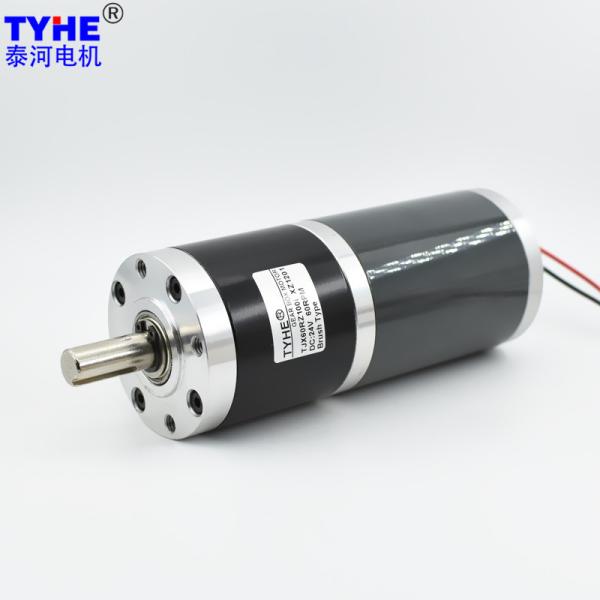

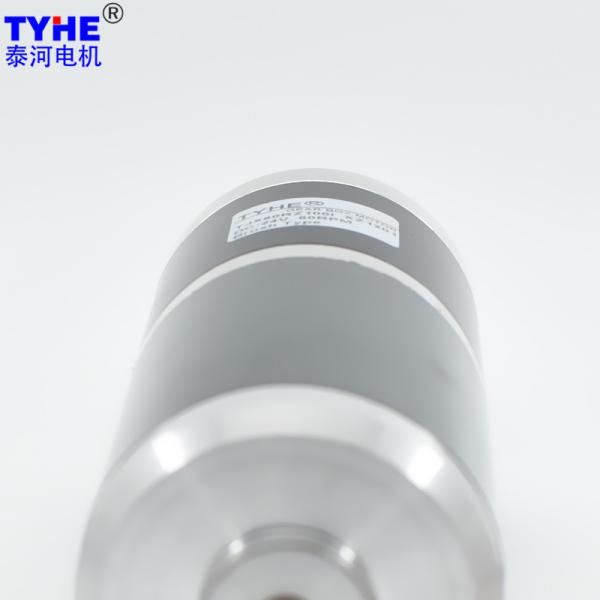

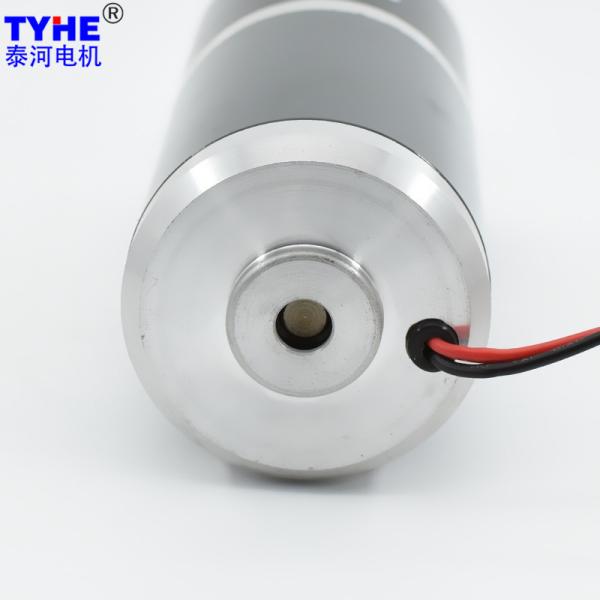

CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm
Specifications
Brand Name :
TYHE
Model Number :
TJX60RZ
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm
Voltage :
24v or customized
Speed :
1-1700rpm Customized
Torque :
40N.m
Gear material :
45# Steel gear
Commutation :
Brushed
Type :
Planetary Gear Motor
Keywords :
Commodity Stocks 60mm 12v 24v 0.5rpm 100kg Load 100 Watts 250 Watt Large Power Dc Planetary Gear Reducer Motor
Description

Products Description

Commodity Stocks 60mm 12v 24v 0.5rpm 100kg Load 100 Watts 250 Watt Large Power Dc Planetary Gear Reducer Motor

2D drawing

CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm


CE ROHS 60mm 24V 250W DC Motor 12V 100 Watt DC Motor 0.5rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY6095 24 5000 700 4000 3.80 138.53 58.02 63.62 415.59 33.00
ZY6095 24 6000 1000 4800 5.42 158.52 79.67 61.29 475.56 47.00
ZY6095 24 7000 1300 5600 7.03 175.85 103.12 61.09 527.55 61.00
ZY6095 24 10000 1800 8000 9.37 170.52 142.84 63.54 511.56 80.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-5000RPM Input 24V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
38.3 90 3.7 1081.1 52.22 461.30 1383.91 1297.3 71.71 527.87 1583.61
38.3 90 5.2 769.2 52.22 648.32 1944.96 923.1 71.71 741.87 2225.62
51.4 81 13.7 292.0 47.00 1537.27 4611.80 350.4 64.54 1759.10 5277.29
51.4 81 19.2 208.3 47.00 2154.42 6463.26 250.0 64.54 2465.30 7395.91
51.4 81 26.9 148.7 47.00 3018.43 9055.29 178.4 64.54 3453.99 10361.98
51.4 81 35.0 114.3 47.00 3927.33 11781.98 137.1 64.54 4494.04 13482.13
64.6 73 51.0 78.4 42.36 5157.47 15472.42 94.1 58.16 5901.70 17705.10
64.6 73 71.0 56.3 42.36 7180.01 21540.03 67.6 58.16 8216.09 24648.27
64.6 73 100.0 40.0 42.36 10112.69 30338.07 48.0 58.16 11571.96 34715.88
64.6 73 139.0 28.8 42.36 14056.64 42169.92 34.5 58.16 16085.02 48255.07
80 65.6 189.0 21.2 38.06 17175.50 50000.00 25.4 52.27 19653.94 50000.00
80 65.6 264.0 15.2 38.06 23991.18 50000.00 18.2 52.27 27453.13 50000.00
80 65.6 369.0 10.8 38.06 33533.13 50000.00 13.0 52.27 38371.99 50000.00
80 65.6 514.0 7.8 38.06 46710.10 50000.00 9.3 52.27 50000.00 50000.00
80 65.6 721.0 5.5 38.06 50000.00 50000.00 6.7 52.27 50000.00 50000.00
95 59 699.0 5.7 34.23 50000.00 50000.00 6.9 47.01 50000.00 50000.00
95 59 977.0 4.1 34.23 50000.00 50000.00 4.9 47.01 50000.00 50000.00
95 59 1367.0 2.9 34.23 50000.00 50000.00 3.5 47.01 50000.00 50000.00
95 59 1911.0 2.1 34.23 50000.00 50000.00 2.5 47.01 50000.00 50000.00
95 59 2672.0 1.5 34.23 50000.00 50000.00 1.8 47.01 50000.00 50000.00
95 59 3736.0 1.1 34.23 50000.00 50000.00 1.3 47.01 50000.00 50000.00
DC Motor With Gearbox Technical Data (0.8M)
Gearbox parameters 24V-7000RPM Input 24V-10000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
38.3 90 3.7 1513.5 92.80 585.58 1756.74 2162.2 128.56 567.83 1703.49
38.3 90 5.2 1076.9 92.80 822.98 2468.93 1538.5 128.56 798.03 2394.10
51.4 81 13.7 408.8 83.52 1951.41 5854.22 583.9 115.70 1892.26 5676.78
51.4 81 19.2 291.7 83.52 2734.82 8204.46 416.7 115.70 2651.93 7955.78
51.4 81 26.9 208.2 83.52 3831.60 11494.79 297.4 115.70 3715.46 11146.38
51.4 81 35.0 160.0 83.52 4985.35 14956.04 228.6 115.70 4834.24 14502.73
64.6 73 51.0 109.8 75.27 6546.90 19640.69 156.9 104.28 6348.46 19045.38
64.6 73 71.0 78.9 75.27 9114.31 27342.92 112.7 104.28 8838.05 26514.15
64.6 73 100.0 56.0 75.27 12837.05 38511.15 80.0 104.28 12447.96 37343.88
64.6 73 139.0 40.3 75.27 17843.50 50000.00 57.6 104.28 17302.66 50000.00
80 65.6 189.0 29.6 67.64 21802.59 50000.00 42.3 93.71 21141.75 50000.00
80 65.6 264.0 21.2 67.64 30454.41 50000.00 30.3 93.71 29531.34 50000.00
80 65.6 369.0 15.2 67.64 42566.95 50000.00 21.7 93.71 41276.75 50000.00
80 65.6 514.0 10.9 67.64 50000.00 50000.00 15.6 93.71 50000.00 50000.00
80 65.6 721.0 7.8 67.64 50000.00 50000.00 11.1 93.71 50000.00 50000.00
95 59 699.0 8.0 60.84 50000.00 50000.00 11.4 84.28 50000.00 50000.00
95 59 977.0 5.7 60.84 50000.00 50000.00 8.2 84.28 50000.00 50000.00
95 59 1367.0 4.1 60.84 50000.00 50000.00 5.9 84.28 50000.00 50000.00
95 59 1911.0 2.9 60.84 50000.00 50000.00 4.2 84.28 50000.00 50000.00
95 59 2672.0 2.1 60.84 50000.00 50000.00 3.0 84.28 50000.00 50000.00
95 59 3736.0 1.5 60.84 50000.00 50000.00 2.1 84.28 50000.00 50000.00

Please let us know your requirements and we will provide you with transmission solutions.
