Specifications
Brand Name :
TYHE
Model Number :
TJP60FG
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm square cover
Voltage :
6v 12v 24v or customized
Speed :
10rpm 20rpm 30rpm Customized
Torque :
10N.m
Gear material :
Steel gears
Commutation :
brushed
Type :
Gear Motor, Micro Motor
Usage :
Toys
Keywords :
High Precision 60mm Rs555 10 Rpm 20 Rpm Dc 12v Gear reduction Motor ce rohs
Description

Products Description

High Precision 60mm Rs555 10 Rpm 20 Rpm Dc 12v Gear Reduction Motor Ce Rohs

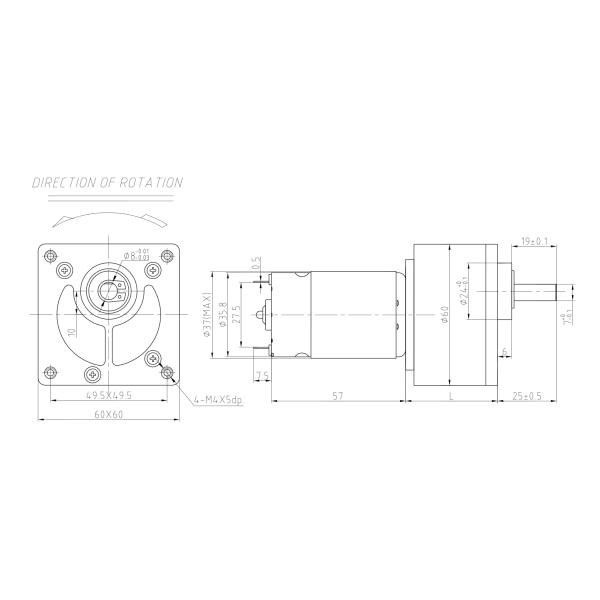

2D drawing

RS555 DC 12 Volt Electric Motors With Gear Reduction 10Rpm 20Rpm


RS555 DC 12 Volt Electric Motors With Gear Reduction 10Rpm 20Rpm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS555 12 4500 150 3600 0.69 13.50 5.09 61.31 40.50 5.60
RS555 12 5000 240 4000 0.93 16.80 7.04 63.28 50.40 6.80
RS555 12 7600 360 6080 1.65 20.10 12.80 64.69 60.30 13.30
RS555 12 9000 390 7200 1.79 18.50 13.95 64.81 55.50 14.50
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 553.8 4.12 71.08 213.23 615.4 5.70 88.45 265.36
28.5 81 7.6 473.7 4.12 83.11 249.32 526.3 5.70 103.42 310.26
28.5 81 8.3 433.7 4.12 90.76 272.28 481.9 5.70 112.95 338.84
28.5 81 9.9 363.6 4.12 108.26 324.77 404.0 5.70 134.72 404.16
28.5 81 10.8 333.3 4.12 118.10 354.29 370.4 5.70 146.97 440.90
28.5 81 12.8 281.3 4.12 139.97 419.90 312.5 5.70 174.18 522.55
28.5 81 14.1 255.3 4.12 154.18 462.55 283.7 5.70 191.87 575.62
33.5 73 20.7 173.9 3.71 204.00 612.00 193.2 5.14 253.86 761.59
33.5 73 24.3 148.1 3.71 239.48 718.43 164.6 5.14 298.02 894.05
33.5 73 26.4 136.4 3.71 260.17 780.52 151.5 5.14 323.77 971.31
33.5 73 27 133.3 3.71 266.09 798.26 148.1 5.14 331.13 993.38
33.5 73 31.5 114.3 3.71 310.43 931.30 127.0 5.14 386.32 1158.95
33.5 73 34.3 105.0 3.71 338.03 1014.08 116.6 5.14 420.66 1261.97
33.5 73 34.7 103.7 3.71 341.97 1025.91 115.3 5.14 425.56 1276.68
33.5 73 41 87.8 3.71 404.06 1212.17 97.6 5.14 502.82 1508.47
33.5 73 45 80.0 3.71 443.48 1330.43 88.9 5.14 551.88 1655.64
36 65.6 66.3 54.3 3.34 587.15 1761.46 60.3 4.62 730.68 2192.04
36 65.6 77.7 46.3 3.34 688.11 2064.33 51.5 4.62 856.32 2568.95
36 65.6 86 41.9 3.34 761.62 2284.85 46.5 4.62 947.79 2843.37
36 65.6 101 35.6 3.34 894.46 2683.37 39.6 4.62 1113.10 3339.30
36 65.6 111 32.4 3.34 983.02 2949.05 36.0 4.62 1223.31 3669.93
36 65.6 131 27.5 3.34 1160.14 3480.41 30.5 4.62 1443.72 4331.17
36 65.6 144 25.0 3.34 1275.26 3825.79 27.8 4.62 1587.00 4760.99
40 59 212 17.0 3.00 1688.58 5065.74 18.9 4.15 2101.34 6304.03
40 59 249 14.5 3.00 1983.29 5949.86 16.1 4.15 2468.09 7404.26
40 59 270 13.3 3.00 2150.55 6451.65 14.8 4.15 2676.24 8028.72
40 59 276 13.0 3.00 2198.34 6595.02 14.5 4.15 2735.71 8207.14
40 59 323 11.1 3.00 2572.70 7718.09 12.4 4.15 3201.58 9604.73
40 59 351 10.3 3.00 2795.72 8387.15 11.4 4.15 3479.11 10437.34
40 59 355 10.1 3.00 2827.58 8482.73 11.3 4.15 3518.76 10556.28
40 59 420 8.6 3.00 3345.30 10035.90 9.5 4.15 4163.04 12489.12
40 59 462 7.8 3.00 3679.83 11039.49 8.7 4.15 4579.34 13738.03
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-7600RPM Input 12V-9000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 935.4 10.37 105.83 317.48 1107.7 11.30 97.40 292.21
28.5 81 7.6 800.0 10.37 123.74 371.21 947.4 11.30 113.89 341.66
28.5 81 8.3 732.5 10.37 135.13 405.40 867.5 11.30 124.38 373.13
28.5 81 9.9 614.1 10.37 161.18 483.55 727.3 11.30 148.35 445.05
28.5 81 10.8 563.0 10.37 175.83 527.50 666.7 11.30 161.84 485.51
28.5 81 12.8 475.0 10.37 208.40 625.19 562.5 11.30 191.81 575.42
28.5 81 14.1 431.2 10.37 229.56 688.69 510.6 11.30 211.29 633.87
33.5 73 20.7 293.7 9.34 303.73 911.19 347.8 10.18 279.55 838.66
33.5 73 24.3 250.2 9.34 356.55 1069.66 296.3 10.18 328.17 984.51
33.5 73 26.4 230.3 9.34 387.37 1162.10 272.7 10.18 356.53 1069.60
33.5 73 27 225.2 9.34 396.17 1188.51 266.7 10.18 364.64 1093.91
33.5 73 31.5 193.0 9.34 462.20 1386.60 228.6 10.18 425.41 1276.22
33.5 73 34.3 177.3 9.34 503.28 1509.85 209.9 10.18 463.22 1389.66
33.5 73 34.7 175.2 9.34 509.15 1527.46 207.5 10.18 468.62 1405.87
33.5 73 41 148.3 9.34 601.59 1804.78 175.6 10.18 553.71 1661.12
33.5 73 45 135.1 9.34 660.29 1980.86 160.0 10.18 607.73 1823.18
36 65.6 66.3 91.7 8.39 874.21 2622.62 108.6 9.15 804.62 2413.85
36 65.6 77.7 78.2 8.39 1024.52 3073.56 92.7 9.15 942.97 2828.90
36 65.6 86 70.7 8.39 1133.96 3401.88 83.7 9.15 1043.70 3131.09
36 65.6 101 60.2 8.39 1331.75 3995.24 71.3 9.15 1225.74 3677.21
36 65.6 111 54.8 8.39 1463.60 4390.80 64.9 9.15 1347.10 4041.29
36 65.6 131 46.4 8.39 1727.31 5181.94 55.0 9.15 1589.82 4769.45
36 65.6 144 42.2 8.39 1898.73 5696.18 50.0 9.15 1747.58 5242.75
40 59 212 28.7 7.55 2514.11 7542.32 34.0 8.23 2313.98 6941.94
40 59 249 24.4 7.55 2952.89 8858.67 28.9 8.23 2717.84 8153.51
40 59 270 22.5 7.55 3201.93 9605.79 26.7 8.23 2947.05 8841.15
40 59 276 22.0 7.55 3273.08 9819.25 26.1 8.23 3012.54 9037.62
40 59 323 18.8 7.55 3830.46 11491.37 22.3 8.23 3525.55 10576.64
40 59 351 17.3 7.55 4162.51 12487.53 20.5 8.23 3831.17 11493.50
40 59 355 17.1 7.55 4209.95 12629.84 20.3 8.23 3874.83 11624.48
40 59 420 14.5 7.55 4980.78 14942.34 17.1 8.23 4584.30 13752.90
40 59 462 13.2 7.55 5478.86 15000.00 15.6 8.23 5042.73 15000.00

Please let us know your requirements and we will provide you with transmission solutions.
