100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
Specifications
Brand Name :
TYHE
Model Number :
TJP60FN
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm size
Voltage :
12v 24v or customized
Speed :
50rpm 100rpm 200rpm Customized
Torque :
10N.m
Gear material :
45# Steel gears
Commutation :
brushes
Type :
DC Gear Motor, Micro Motor
Usage :
Machine
Keywords :
Long Lifetime 60mm 24v 12v High Torque 100kg Low Rpm Geared Dc Motor
Description

Products Description

Long Lifetime 60mm 24v 12v High Torque 100kg Low Rpm Geared Dc Motor

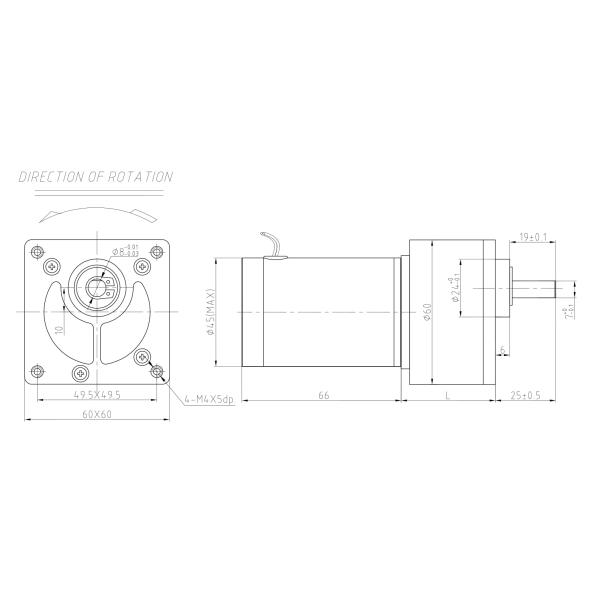

2D drawing

100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor


100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY4564 12 6000 1100 4800 3.94 60.00 30.16 63.76 180.00 27.50
ZY4564 24 4500 280 3600 1.00 40.00 15.08 62.62 120.00 7.00
ZY4564 24 6000 500 4800 1.92 59.80 30.06 65.34 179.40 14.00
ZY4564 24 7000 570 5600 2.23 57.00 33.42 62.38 171.00 16.53
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-6000RPM Input 24V-4500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 738.5 24.43 315.90 947.70 553.8 12.21 210.60 631.80
28.5 81 7.6 631.6 24.43 369.36 1108.08 473.7 12.21 246.24 738.72
28.5 81 8.3 578.3 24.43 403.38 1210.14 433.7 12.21 268.92 806.76
28.5 81 9.9 484.8 24.43 481.14 1443.42 363.6 12.21 320.76 962.28
28.5 81 10.8 444.4 24.43 524.88 1574.64 333.3 12.21 349.92 1049.76
28.5 81 12.8 375.0 24.43 622.08 1866.24 281.3 12.21 414.72 1244.16
28.5 81 14.1 340.4 24.43 685.26 2055.78 255.3 12.21 456.84 1370.52
33.5 73 20.7 231.9 22.01 906.66 2719.98 173.9 11.01 604.44 1813.32
33.5 73 24.3 197.5 22.01 1064.34 3193.02 148.1 11.01 709.56 2128.68
33.5 73 26.4 181.8 22.01 1156.32 3468.96 136.4 11.01 770.88 2312.64
33.5 73 27 177.8 22.01 1182.60 3547.80 133.3 11.01 788.40 2365.20
33.5 73 31.5 152.4 22.01 1379.70 4139.10 114.3 11.01 919.80 2759.40
33.5 73 34.3 139.9 22.01 1502.34 4507.02 105.0 11.01 1001.56 3004.68
33.5 73 34.7 138.3 22.01 1519.86 4559.58 103.7 11.01 1013.24 3039.72
33.5 73 41 117.1 22.01 1795.80 5387.40 87.8 11.01 1197.20 3591.60
33.5 73 45 106.7 22.01 1971.00 5913.00 80.0 11.01 1314.00 3942.00
36 65.6 66.3 72.4 19.78 2609.57 7828.70 54.3 9.89 1739.71 5219.14
36 65.6 77.7 61.8 19.78 3058.27 9174.82 46.3 9.89 2038.85 6116.54
36 65.6 86 55.8 19.78 3384.96 10154.88 41.9 9.89 2256.64 6769.92
36 65.6 101 47.5 19.78 3975.36 11926.08 35.6 9.89 2650.24 7950.72
36 65.6 111 43.2 19.78 4368.96 13106.88 32.4 9.89 2912.64 8737.92
36 65.6 131 36.6 19.78 5156.16 15000.00 27.5 9.89 3437.44 10312.32
36 65.6 144 33.3 19.78 5667.84 15000.00 25.0 9.89 3778.56 11335.68
40 59 212 22.6 17.79 7504.80 15000.00 17.0 8.90 5003.20 15000.00
40 59 249 19.3 17.79 8814.60 15000.00 14.5 8.90 5876.40 15000.00
40 59 270 17.8 17.79 9558.00 15000.00 13.3 8.90 6372.00 15000.00
40 59 276 17.4 17.79 9770.40 15000.00 13.0 8.90 6513.60 15000.00
40 59 323 14.9 17.79 11434.20 15000.00 11.1 8.90 7622.80 15000.00
40 59 351 13.7 17.79 12425.40 15000.00 10.3 8.90 8283.60 15000.00
40 59 355 13.5 17.79 12567.00 15000.00 10.1 8.90 8378.00 15000.00
40 59 420 11.4 17.79 14868.00 15000.00 8.6 8.90 9912.00 15000.00
40 59 462 10.4 17.79 15000.00 15000.00 7.8 8.90 10903.20 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-6000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 738.5 24.35 314.85 944.54 861.5 27.07 300.11 900.32
28.5 81 7.6 631.6 24.35 368.13 1104.39 736.8 27.07 350.89 1052.68
28.5 81 8.3 578.3 24.35 402.04 1206.11 674.7 27.07 383.21 1149.63
28.5 81 9.9 484.8 24.35 479.54 1438.61 565.7 27.07 457.08 1371.25
28.5 81 10.8 444.4 24.35 523.13 1569.39 518.5 27.07 498.64 1495.91
28.5 81 12.8 375.0 24.35 620.01 1860.02 437.5 27.07 590.98 1772.93
28.5 81 14.1 340.4 24.35 682.98 2048.93 397.2 27.07 651.00 1952.99
33.5 73 20.7 231.9 21.94 903.64 2710.91 270.5 24.40 861.33 2583.98
33.5 73 24.3 197.5 21.94 1060.79 3182.38 230.5 24.40 1011.12 3033.37
33.5 73 26.4 181.8 21.94 1152.47 3457.40 212.1 24.40 1098.50 3295.51
33.5 73 27 177.8 21.94 1178.66 3535.97 207.4 24.40 1123.47 3370.41
33.5 73 31.5 152.4 21.94 1375.10 4125.30 177.8 24.40 1310.72 3932.15
33.5 73 34.3 139.9 21.94 1497.33 4492.00 163.3 24.40 1427.22 4281.67
33.5 73 34.7 138.3 21.94 1514.79 4544.38 161.4 24.40 1443.87 4331.60
33.5 73 41 117.1 21.94 1789.81 5369.44 136.6 24.40 1706.01 5118.03
33.5 73 45 106.7 21.94 1964.43 5893.29 124.4 24.40 1872.45 5617.35
36 65.6 66.3 72.4 19.72 2600.87 7802.61 84.5 21.93 2479.09 7437.27
36 65.6 77.7 61.8 19.72 3048.08 9144.23 72.1 21.93 2905.36 8716.08
36 65.6 86 55.8 19.72 3373.68 10121.03 65.1 21.93 3215.71 9647.14
36 65.6 101 47.5 19.72 3962.11 11886.33 55.4 21.93 3776.59 11329.78
36 65.6 111 43.2 19.72 4354.40 13063.19 50.5 21.93 4150.51 12451.54
36 65.6 131 36.6 19.72 5138.97 15000.00 42.7 21.93 4898.35 14695.06
36 65.6 144 33.3 19.72 5648.95 15000.00 38.9 21.93 5384.45 15000.00
40 59 212 22.6 17.73 7479.78 15000.00 26.4 19.72 7129.56 15000.00
40 59 249 19.3 17.73 8785.22 15000.00 22.5 19.72 8373.87 15000.00
40 59 270 17.8 17.73 9526.14 15000.00 20.7 19.72 9080.10 15000.00
40 59 276 17.4 17.73 9737.83 15000.00 20.3 19.72 9281.88 15000.00
40 59 323 14.9 17.73 11396.09 15000.00 17.3 19.72 10862.49 15000.00
40 59 351 13.7 17.73 12383.98 15000.00 16.0 19.72 11804.13 15000.00
40 59 355 13.5 17.73 12525.11 15000.00 15.8 19.72 11938.65 15000.00
40 59 420 11.4 17.73 14818.44 15000.00 13.3 19.72 14124.60 15000.00
40 59 462 10.4 17.73 15000.00 15000.00 12.1 19.72 15000.00 15000.00

Please let us know your requirements and we will provide you with transmission solutions.

100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor

100kg DC Spur Gear Motor 12V 100 Rpm High Torque DC Motor
