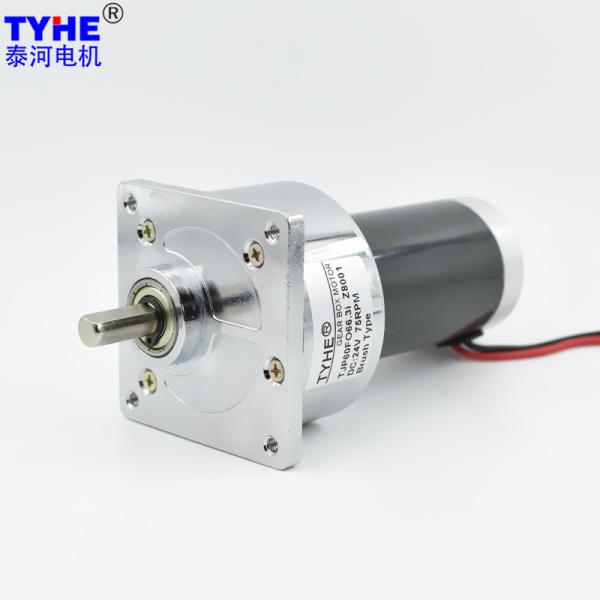

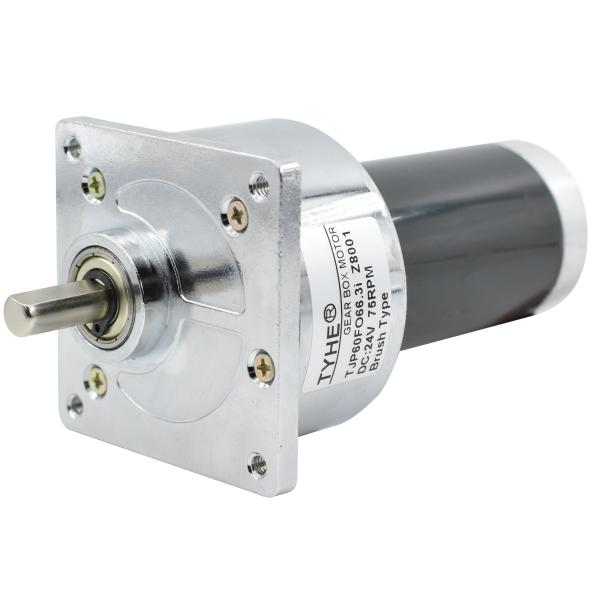

TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque
Specifications
Brand Name :
TYHE
Model Number :
TJP60FO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60*60mm
Voltage :
12v 18v 24v or customized
Speed :
Customized
Torque :
10N.m
Gear material :
Steel gears
Commutation :
brushed
Type :
DC Gear Motor, Micro Motor
Keywords :
Manufacturer High Quality 60mm 5000rpm Hight Torque 24v 12 V Dc Spur Gear Motor
Description

Products Description

Manufacturer High Quality 60mm 5000rpm Hight Torque 24v 12 V Dc Spur Gear Motor

2D drawing

TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque


TYHE DC Spur Gear Motor 5000rpm 12V DC Gear Motor High Torque

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 12 5700 340 4560 1.22 19.80 9.45 64.37 59.40 7.14
ZY3864 12 6000 380 4800 1.37 20.30 10.20 62.15 60.90 7.98
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 553.8 5.95 102.67 308.00 615.4 6.68 103.72 311.16
28.5 81 7.6 473.7 5.95 120.04 360.13 526.3 6.68 121.27 363.82
28.5 81 8.3 433.7 5.95 131.10 393.30 481.9 6.68 132.44 397.33
28.5 81 9.9 363.6 5.95 156.37 469.11 404.0 6.68 157.97 473.92
28.5 81 10.8 333.3 5.95 170.59 511.76 370.4 6.68 172.34 517.01
28.5 81 12.8 281.3 5.95 202.18 606.53 312.5 6.68 204.25 612.75
28.5 81 14.1 255.3 5.95 222.71 668.13 283.7 6.68 224.99 674.98
33.5 73 20.7 173.9 5.37 294.66 883.99 193.2 6.02 297.69 893.06
33.5 73 24.3 148.1 5.37 345.91 1037.73 164.6 6.02 349.46 1048.37
33.5 73 26.4 136.4 5.37 375.80 1127.41 151.5 6.02 379.66 1138.98
33.5 73 27 133.3 5.37 384.35 1153.04 148.1 6.02 388.29 1164.86
33.5 73 31.5 114.3 5.37 448.40 1345.21 127.0 6.02 453.00 1359.00
33.5 73 34.3 105.0 5.37 488.26 1464.78 116.6 6.02 493.27 1479.80
33.5 73 34.7 103.7 5.37 493.95 1481.86 115.3 6.02 499.02 1497.06
33.5 73 41 87.8 5.37 583.64 1750.91 97.6 6.02 589.62 1768.86
33.5 73 45 80.0 5.37 640.58 1921.73 88.9 6.02 647.15 1941.44
36 65.6 66.3 54.3 4.82 848.11 2544.33 60.3 5.41 856.81 2570.42
36 65.6 77.7 46.3 4.82 993.94 2981.82 51.5 5.41 1004.13 3012.40
36 65.6 86 41.9 4.82 1100.11 3300.34 46.5 5.41 1111.40 3334.19
36 65.6 101 35.6 4.82 1291.99 3875.98 39.6 5.41 1305.24 3915.73
36 65.6 111 32.4 4.82 1419.91 4259.74 36.0 5.41 1434.48 4303.43
36 65.6 131 27.5 4.82 1675.75 5027.26 30.5 5.41 1692.94 5078.82
36 65.6 144 25.0 4.82 1842.05 5526.14 27.8 5.41 1860.94 5582.82
40 59 212 17.0 4.34 2439.06 7317.18 18.9 4.87 2464.08 7392.23
40 59 249 14.5 4.34 2864.75 8594.24 16.1 4.87 2894.13 8682.38
40 59 270 13.3 4.34 3106.35 9319.05 14.8 4.87 3138.21 9414.63
40 59 276 13.0 4.34 3175.38 9526.14 14.5 4.87 3207.95 9623.84
40 59 323 11.1 4.34 3716.12 11148.35 12.4 4.87 3754.23 11262.69
40 59 351 10.3 4.34 4038.26 12114.77 11.4 4.87 4079.67 12239.02
40 59 355 10.1 4.34 4084.28 12252.83 11.3 4.87 4126.17 12378.50
40 59 420 8.6 4.34 4832.10 14496.30 9.5 4.87 4881.66 14644.98
40 59 462 7.8 4.34 5315.31 15000.00 8.7 4.87 5369.83 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-5700RPM Input 12V-6000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 6.5 701.5 7.66 104.25 312.74 738.5 8.26 106.88 320.64
28.5 81 7.6 600.0 7.66 121.89 365.67 631.6 8.26 124.97 374.90
28.5 81 8.3 549.4 7.66 133.12 399.35 578.3 8.26 136.48 409.43
28.5 81 9.9 460.6 7.66 158.78 476.33 484.8 8.26 162.79 488.36
28.5 81 10.8 422.2 7.66 173.21 519.63 444.4 8.26 177.58 532.75
28.5 81 12.8 356.3 7.66 205.29 615.86 375.0 8.26 210.47 631.41
28.5 81 14.1 323.4 7.66 226.14 678.41 340.4 8.26 231.85 695.54
33.5 73 20.7 220.3 6.90 299.20 897.59 231.9 7.45 306.75 920.26
33.5 73 24.3 187.7 6.90 351.23 1053.70 197.5 7.45 360.10 1080.31
33.5 73 26.4 172.7 6.90 381.59 1144.76 181.8 7.45 391.22 1173.66
33.5 73 27 168.9 6.90 390.26 1170.77 177.8 7.45 400.11 1200.34
33.5 73 31.5 144.8 6.90 455.30 1365.90 152.4 7.45 466.80 1400.40
33.5 73 34.3 132.9 6.90 495.77 1487.32 139.9 7.45 508.29 1524.88
33.5 73 34.7 131.4 6.90 501.55 1504.66 138.3 7.45 514.22 1542.66
33.5 73 41 111.2 6.90 592.61 1777.84 117.1 7.45 607.58 1822.74
33.5 73 45 101.3 6.90 650.43 1951.29 106.7 7.45 666.86 2000.57
36 65.6 66.3 68.8 6.20 861.16 2583.47 72.4 6.69 882.90 2648.71
36 65.6 77.7 58.7 6.20 1009.23 3027.69 61.8 6.69 1034.72 3104.15
36 65.6 86 53.0 6.20 1117.04 3351.11 55.8 6.69 1145.24 3435.73
36 65.6 101 45.1 6.20 1311.87 3935.61 47.5 6.69 1345.00 4034.99
36 65.6 111 41.1 6.20 1441.76 4325.27 43.2 6.69 1478.16 4434.49
36 65.6 131 34.8 6.20 1701.53 5104.60 36.6 6.69 1744.50 5233.50
36 65.6 144 31.7 6.20 1870.39 5611.16 33.3 6.69 1917.62 5752.86
40 59 212 21.5 5.58 2476.58 7429.75 22.6 6.02 2539.12 7617.37
40 59 249 18.3 5.58 2908.82 8726.45 19.3 6.02 2982.27 8946.82
40 59 270 16.9 5.58 3154.14 9462.42 17.8 6.02 3233.79 9701.37
40 59 276 16.5 5.58 3224.23 9672.70 17.4 6.02 3305.65 9916.96
40 59 323 14.1 5.58 3773.29 11319.86 14.9 6.02 3868.57 11605.71
40 59 351 13.0 5.58 4100.38 12301.15 13.7 6.02 4203.93 12611.78
40 59 355 12.8 5.58 4147.11 12441.33 13.5 6.02 4251.84 12755.51
40 59 420 10.9 5.58 4906.44 14719.32 11.4 6.02 5030.34 15000.00
40 59 462 9.9 5.58 5397.08 15000.00 10.4 6.02 5533.37 15000.00

Please let us know your requirements and we will provide you with transmission solutions.
