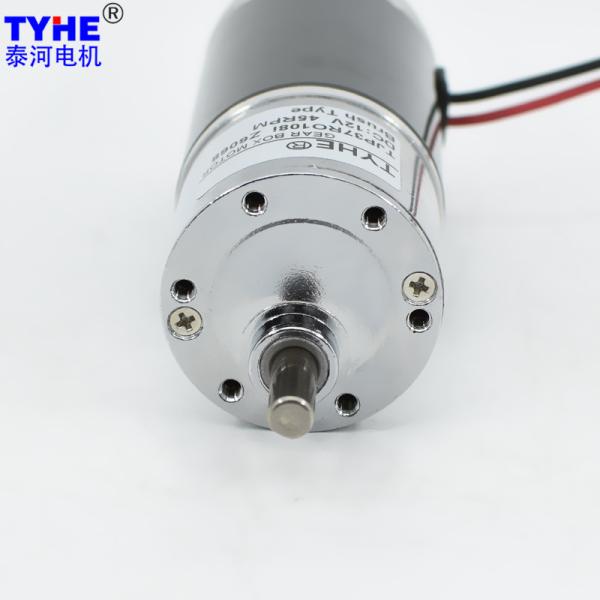

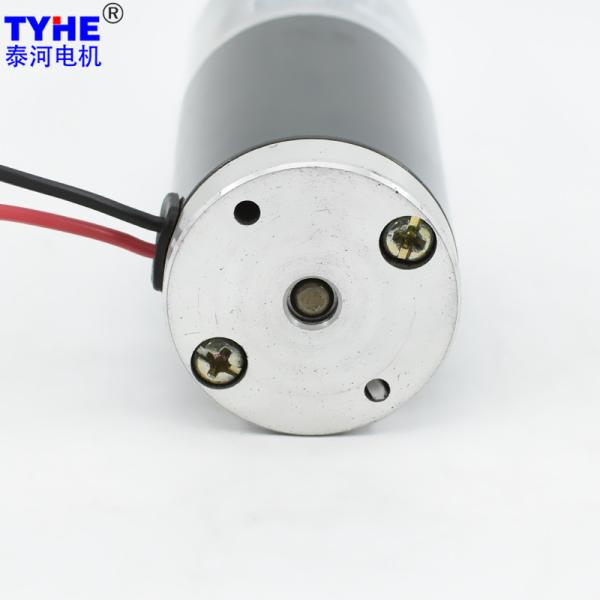

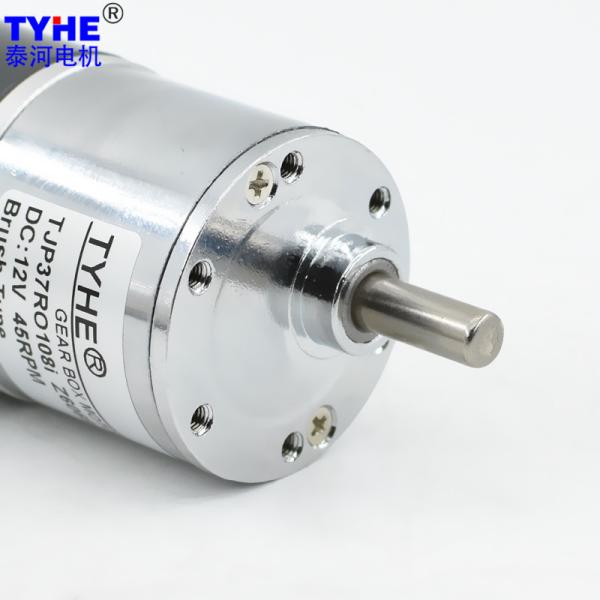

16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
Specifications
Brand Name :
TYHE
Model Number :
TJP37RO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
12-24V
Speed :
200rpm 250rpm 300rpm or Customized
Torque :
1.8N.m
Gear material :
Powder metallurgy, steel gears
Commutation :
Brush brushes brushed
Type :
DC Gear Motor, Micro Motor
Usage :
Agitator
Keywords :
Speed Adjustable Tubular Motor 37mm 16watts 12v 24v 60 Rpm Brushed Dc Gear Motor For Agitator
Description

Products Description

Speed Adjustable Tubular Motor 37mm 16watts 12v 24v 60 Rpm Brushed Dc Gear Motor For Agitator

2D drawing

16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator


16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3864 12 4500 250 3600 0.95 19.50 7.35 64.82 58.50 5.70
ZY3864 12 5000 300 4000 1.10 19.70 8.25 62.51 59.10 6.50
ZY3864 24 5000 160 4000 0.55 19.50 8.17 61.88 58.50 3.10
ZY3864 24 8000 270 6400 1.11 25.00 16.75 63.06 75.00 7.02
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 553.8 5.95 102.67 308.00 615.4 6.68 103.72 311.16
22.5 73 9.3 387.1 5.37 132.39 397.16 430.1 6.02 133.74 401.23
22.5 73 11.8 305.1 5.37 167.97 503.92 339.0 6.02 169.70 509.09
22.5 73 14.2 253.5 5.37 202.14 606.41 281.7 6.02 204.21 612.63
22.5 73 17.4 206.9 5.37 247.69 743.07 229.9 6.02 250.23 750.69
24.5 65.6 21.8 165.1 4.82 278.87 836.60 183.5 5.41 281.73 845.18
24.5 65.6 27.5 130.9 4.82 351.78 1055.34 145.5 5.41 355.39 1066.16
24.5 65.6 36.6 98.4 4.82 468.19 1404.56 109.3 5.41 472.99 1418.97
24.5 65.6 40.4 89.1 4.82 516.80 1550.39 99.0 5.41 522.10 1566.29
26.5 59 58.1 62.0 4.34 668.44 2005.32 68.8 4.87 675.30 2025.89
26.5 59 73.4 49.0 4.34 844.47 2500.00 54.5 4.87 853.13 2500.00
26.5 59 83 43.4 4.34 954.92 2500.00 48.2 4.87 964.71 2500.00
26.5 59 89 40.4 4.34 1023.95 2500.00 44.9 4.87 1034.45 2500.00
26.5 59 95 37.9 4.34 1092.98 2500.00 42.1 4.87 1104.19 2500.00
26.5 59 103 35.0 4.34 1185.02 2500.00 38.8 4.87 1197.17 2500.00
29.5 53 119 30.3 3.90 1229.87 2500.00 33.6 4.37 1242.48 2500.00
29.5 53 136 26.5 3.90 1405.56 2500.00 29.4 4.37 1419.98 2500.00
29.5 53 171 21.1 3.90 1767.29 2500.00 23.4 4.37 1785.41 2500.00
29.5 53 194 18.6 3.90 2004.99 2500.00 20.6 4.37 2025.55 2500.00
29.5 53 207 17.4 3.90 2139.35 2500.00 19.3 4.37 2161.29 2500.00
29.5 53 221 16.3 3.90 2284.04 2500.00 18.1 4.37 2307.46 2500.00
29.5 53 242 14.9 3.90 2500.00 2500.00 16.5 4.37 2500.00 2500.00
29.5 53 277 13.0 3.90 2500.00 2500.00 14.4 4.37 2500.00 2500.00
29.5 53 305 11.8 3.90 2500.00 2500.00 13.1 4.37 2500.00 2500.00
32.5 47.8 350 10.3 3.51 2500.00 2500.00 11.4 3.94 2500.00 2500.00
32.5 47.8 422 8.5 3.51 2500.00 2500.00 9.5 3.94 2500.00 2500.00
32.5 47.8 465 7.7 3.51 2500.00 2500.00 8.6 3.94 2500.00 2500.00
32.5 47.8 513 7.0 3.51 2500.00 2500.00 7.8 3.94 2500.00 2500.00
32.5 47.8 532 6.8 3.51 2500.00 2500.00 7.5 3.94 2500.00 2500.00
32.5 47.8 586 6.1 3.51 2500.00 2500.00 6.8 3.94 2500.00 2500.00
32.5 47.8 712 5.1 3.51 2500.00 2500.00 5.6 3.94 2500.00 2500.00
32.5 47.8 784 4.6 3.51 2500.00 2500.00 5.1 3.94 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-8000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 6.5 615.4 6.62 102.67 308.00 984.6 13.57 131.63 394.88
22.5 73 9.3 430.1 5.96 132.39 397.16 688.2 12.23 169.73 509.18
22.5 73 11.8 339.0 5.96 167.97 503.92 542.4 12.23 215.35 646.05
22.5 73 14.2 281.7 5.96 202.14 606.41 450.7 12.23 259.15 777.45
22.5 73 17.4 229.9 5.96 247.69 743.07 367.8 12.23 317.55 952.65
24.5 65.6 21.8 183.5 5.36 278.87 836.60 293.6 10.99 357.52 1072.56
24.5 65.6 27.5 145.5 5.36 351.78 1055.34 232.7 10.99 451.00 1353.00
24.5 65.6 36.6 109.3 5.36 468.19 1404.56 174.9 10.99 600.24 1800.72
24.5 65.6 40.4 99.0 5.36 516.80 1550.39 158.4 10.99 662.56 1987.68
26.5 59 58.1 68.8 4.82 668.44 2005.32 110.2 9.88 856.98 2500.00
26.5 59 73.4 54.5 4.82 844.47 2500.00 87.2 9.88 1082.65 2500.00
26.5 59 83 48.2 4.82 954.92 2500.00 77.1 9.88 1224.25 2500.00
26.5 59 89 44.9 4.82 1023.95 2500.00 71.9 9.88 1312.75 2500.00
26.5 59 95 42.1 4.82 1092.98 2500.00 67.4 9.88 1401.25 2500.00
26.5 59 103 38.8 4.82 1185.02 2500.00 62.1 9.88 1519.25 2500.00
29.5 53 119 33.6 4.33 1229.87 2500.00 53.8 8.88 1576.75 2500.00
29.5 53 136 29.4 4.33 1405.56 2500.00 47.1 8.88 1802.00 2500.00
29.5 53 171 23.4 4.33 1767.29 2500.00 37.4 8.88 2265.75 2500.00
29.5 53 194 20.6 4.33 2004.99 2500.00 33.0 8.88 2500.00 2500.00
29.5 53 207 19.3 4.33 2139.35 2500.00 30.9 8.88 2500.00 2500.00
29.5 53 221 18.1 4.33 2284.04 2500.00 29.0 8.88 2500.00 2500.00
29.5 53 242 16.5 4.33 2500.00 2500.00 26.4 8.88 2500.00 2500.00
29.5 53 277 14.4 4.33 2500.00 2500.00 23.1 8.88 2500.00 2500.00
29.5 53 305 13.1 4.33 2500.00 2500.00 21.0 8.88 2500.00 2500.00
32.5 47.8 350 11.4 3.90 2500.00 2500.00 18.3 8.01 2500.00 2500.00
32.5 47.8 422 9.5 3.90 2500.00 2500.00 15.2 8.01 2500.00 2500.00
32.5 47.8 465 8.6 3.90 2500.00 2500.00 13.8 8.01 2500.00 2500.00
32.5 47.8 513 7.8 3.90 2500.00 2500.00 12.5 8.01 2500.00 2500.00
32.5 47.8 532 7.5 3.90 2500.00 2500.00 12.0 8.01 2500.00 2500.00
32.5 47.8 586 6.8 3.90 2500.00 2500.00 10.9 8.01 2500.00 2500.00
32.5 47.8 712 5.6 3.90 2500.00 2500.00 9.0 8.01 2500.00 2500.00
32.5 47.8 784 5.1 3.90 2500.00 2500.00 8.2 8.01 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator

16watts 60watt Brushed DC Spur Gear Motor 60 Rpm For Agitator
