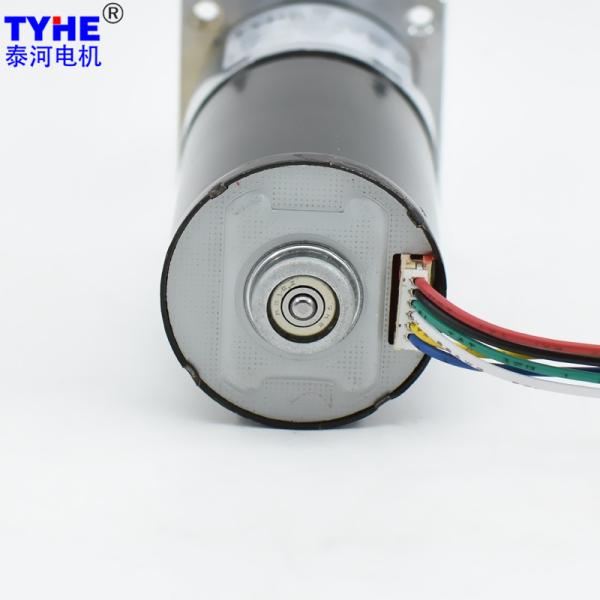

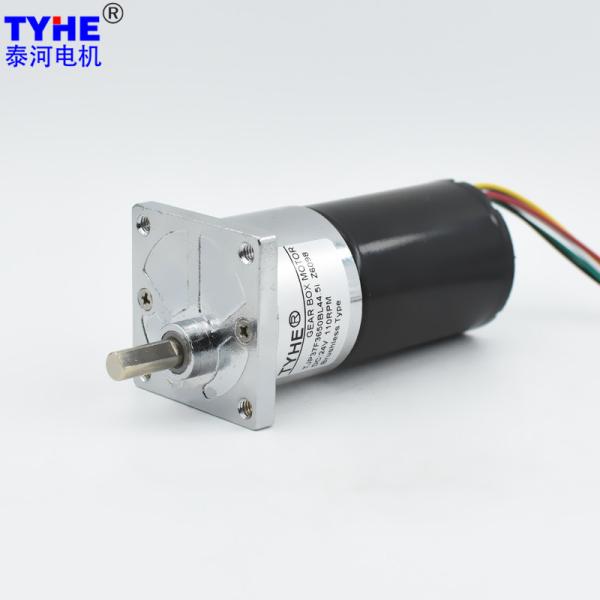

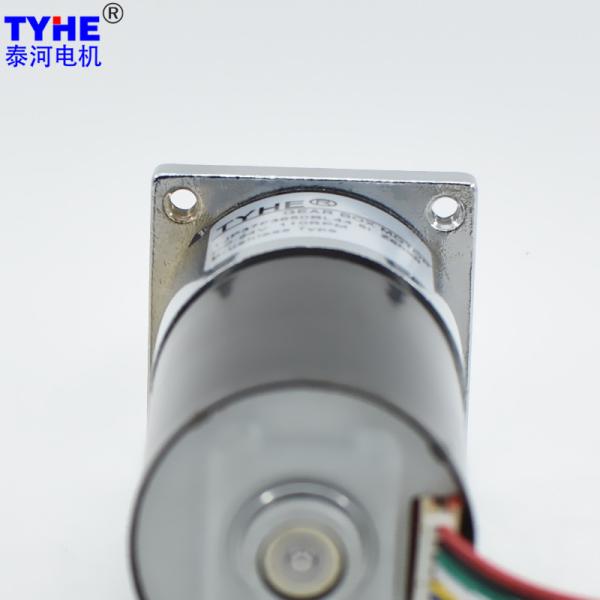

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Specifications
Brand Name :
TYHE
Model Number :
TJP37F3650BL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
120pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
3-24V
Speed :
150rpm 200rpm 120rpm or Customized
Torque :
1.5N.m
Gear material :
Powder metallurgy
Commutation :
Brushless, BLDC
Type :
Gear Motor, Micro Motor
Usage :
Automation
Keywords :
37mm High Torque 15kg.Cm 1nm 12v 24v 50rpm 30rpm Brushless Dc Geared Motor for automation
Description

Products Description

37mm High Torque 15kg.Cm 1nm 12v 24v 50rpm 30rpm Brushless Dc Geared Motor For Automation

2D drawing

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm


Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
3650BL 12 5000 350 4000 1.07 19.20 8.04 62.83 57.60 6.50
3650BL 24 5000 158 4000 0.54 19.80 8.29 63.85 59.40 3.65
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.5 81 8.2 487.8 6.51 127.53 382.58 487.8 6.72 131.51 394.53
25.5 73 11.7 341.9 5.87 163.99 491.96 341.9 6.05 169.11 507.34
25.5 73 14.7 272.1 5.87 206.04 618.11 272.1 6.05 212.47 637.42
25.5 73 19.1 209.4 5.87 267.71 803.12 209.4 6.05 276.07 828.21
27.5 65.6 27.2 147.1 5.28 342.59 1027.77 147.1 5.44 353.30 1059.89
27.5 65.6 34.4 116.3 5.28 433.27 1299.82 116.3 5.44 446.81 1340.44
27.5 65.6 44.5 89.9 5.28 560.49 1681.46 89.9 5.44 578.00 1734.00
29.5 59 63.5 63.0 4.74 719.33 2157.98 63.0 4.89 741.81 2225.42
29.5 59 80.3 49.8 4.74 909.64 2500.00 49.8 4.89 938.06 2500.00
29.5 59 104.0 38.5 4.74 1178.11 2500.00 38.5 4.89 1214.93 2500.00
32.5 53 148.0 27.0 4.26 1506.05 2500.00 27.0 4.40 1553.11 2500.00
32.5 53 187.0 21.4 4.26 1902.91 2500.00 21.4 4.40 1962.38 2500.00
32.5 53 242.0 16.5 4.26 2462.59 2500.00 16.5 4.40 2500.00 2500.00
35.5 47.8 346.0 11.6 3.84 2500.00 2500.00 11.6 3.96 2500.00 2500.00
35.5 47.8 437.0 9.2 3.84 2500.00 2500.00 9.2 3.96 2500.00 2500.00
35.5 47.8 565.0 7.1 3.84 2500.00 2500.00 7.1 3.96 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm

R&D customized service

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm

Packing & Shipping

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm

  1. All order schedules are controlled separately by each salesman;
  2. All materials go through strict quality inspection;
  3. All finished products will be shipped out after passing inspection;
  4. All products are packed in foam cartons:

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm

The sample delivery time of each expresses are as follows(for example to the US):
* DHL 7~12 work days
* FedEx 6~9 work days
* TNT 7~12 work days
* UPS 8~11 work days
* EMS 10~18 work days
The delivery date of bulk goods needs specific negotiation. If the sample is delayed, we will inform you in advance and confirm the new delivery time.

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How to order?
A: Send us inquiry → Receive our quotation → Negotiate details → Confirm the sample → Sign contract/deposit → Mass production → Cargo ready → Balance/delivery → Further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 7-15 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.

Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.

Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
