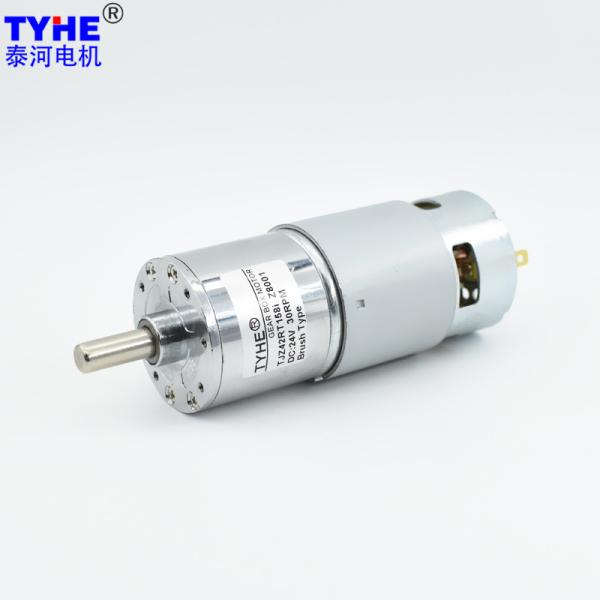

Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Specifications
Brand Name :
TYHE
Model Number :
TJZ42RT
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm size
Voltage :
12-24V customized
Speed :
10-900rpm
Torque :
5N.m
Gear material :
Powder metallurgy, steel
Commutation :
brushed
Type :
Gear Motor, Micro Motor
Usage :
wire-stripping machine
Keywords :
Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
Description

Products Description

Copper Winding High Power 42mm Rs 775 Brushed 300 Rpm Dc Gear Motor 12v 24v Rohs

2D drawing

Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs


Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS775 12 5000 580 4000 1.77 31.60 13.24 62.31 94.80 10.80
RS775 12 7000 760 5600 2.81 38.00 22.28 66.16 114.00 20.00
RS775 24 3500 160 2800 0.59 29.50 8.65 61.08 88.50 4.20
RS775 24 5000 230 4000 0.84 31.00 12.98 64.15 93.00 5.98
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-5000RPM Input 12V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1600.0 10.72 63.99 191.97 2240.0 18.05 76.95 230.85
25.7 81 3.1 1290.3 10.72 79.35 238.04 1806.5 18.05 95.42 286.25
25.7 81 3.8 1052.6 10.72 97.26 291.79 1473.7 18.05 116.96 350.89
25.7 81 4.8 833.3 10.72 122.86 368.58 1166.7 18.05 147.74 443.23
25.7 81 6.1 655.7 10.72 156.14 468.41 918.0 18.05 187.76 563.27
25.7 73 6.8 588.2 9.66 156.86 470.59 823.5 16.27 188.63 565.90
25.7 73 8.3 481.9 9.66 191.46 574.39 674.7 16.27 230.24 690.73
25.7 73 10.3 388.3 9.66 237.60 712.80 543.7 16.27 285.72 857.17
25.7 73 12.8 312.5 9.66 295.27 885.81 437.5 16.27 355.07 1065.22
25.7 73 16.4 243.9 9.66 378.32 1134.95 341.5 16.27 454.94 1364.81
25.7 65.6 18.2 219.8 8.68 377.28 1131.84 307.7 14.62 453.69 1361.07
25.7 65.6 22.2 180.2 8.68 460.20 1380.59 252.3 14.62 553.40 1660.20
25.7 65.6 27.4 146.0 8.68 567.99 1703.97 204.4 14.62 683.03 2049.08
25.7 65.6 34.2 117.0 8.68 708.95 2126.86 163.7 14.62 852.54 2557.61
25.7 65.6 43.8 91.3 8.68 907.96 2723.87 127.9 14.62 1091.85 3275.54
29.5 59 48.6 82.3 7.81 906.10 2718.30 115.2 13.15 1089.61 3268.84
29.5 59 59.3 67.5 7.81 1105.59 3316.77 94.4 13.15 1329.51 3988.52
29.5 59 73.0 54.8 7.81 1361.01 4083.04 76.7 13.15 1636.66 4909.98
29.5 59 91.2 43.9 7.81 1700.33 5000.00 61.4 13.15 2044.70 5000.00
29.5 59 117.0 34.2 7.81 2181.35 5000.00 47.9 13.15 2623.14 5000.00
29.5 59 120.0 33.3 7.81 2237.28 5000.00 46.7 13.15 2690.40 5000.00
32.7 53 130.0 30.8 7.01 2177.24 5000.00 43.1 11.81 2618.20 5000.00
32.7 53 158.0 25.3 7.01 2646.18 5000.00 35.4 11.81 3182.12 5000.00
32.7 53 195.0 20.5 7.01 3265.86 5000.00 28.7 11.81 3927.30 5000.00
32.7 53 243.0 16.5 7.01 4069.76 5000.00 23.0 11.81 4894.02 5000.00
32.7 53 311.0 12.9 7.01 5000.00 5000.00 18.0 11.81 5000.00 5000.00
32.7 53 323.0 12.4 7.01 5000.00 5000.00 17.3 11.81 5000.00 5000.00
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-3500RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1120.0 7.01 59.74 179.21 1600.0 10.52 62.78 188.33
25.7 81 3.1 903.2 7.01 74.07 222.22 1290.3 10.52 77.84 233.52
25.7 81 3.8 736.8 7.01 90.80 272.40 1052.6 10.52 95.42 286.25
25.7 81 4.8 583.3 7.01 114.70 344.09 833.3 10.52 120.53 361.58
25.7 81 6.1 459.0 7.01 145.76 437.28 655.7 10.52 153.17 459.51
25.7 73 6.8 411.8 6.31 146.44 439.31 588.2 9.48 153.88 461.65
25.7 73 8.3 337.3 6.31 178.74 536.22 481.9 9.48 187.83 563.49
25.7 73 10.3 271.8 6.31 221.81 665.43 388.3 9.48 233.09 699.27
25.7 73 12.8 218.8 6.31 275.65 826.94 312.5 9.48 289.66 868.99
25.7 73 16.4 170.7 6.31 353.17 1059.52 243.9 9.48 371.13 1113.40
25.7 65.6 18.2 153.8 5.67 352.21 1056.62 219.8 8.52 370.12 1110.35
25.7 65.6 22.2 126.1 5.67 429.61 1288.84 180.2 8.52 451.46 1354.38
25.7 65.6 27.4 102.2 5.67 530.24 1590.73 146.0 8.52 557.21 1671.62
25.7 65.6 34.2 81.9 5.67 661.84 1985.52 117.0 8.52 695.49 2086.47
25.7 65.6 43.8 63.9 5.67 847.62 2542.85 91.3 8.52 890.72 2672.15
29.5 59 48.6 57.6 5.10 845.88 2537.65 82.3 7.66 888.89 2666.68
29.5 59 59.3 47.2 5.10 1032.12 3096.35 67.5 7.66 1084.60 3253.79
29.5 59 73.0 38.4 5.10 1270.57 3811.70 54.8 7.66 1335.17 4005.51
29.5 59 91.2 30.7 5.10 1587.34 4762.01 43.9 7.66 1668.05 5000.00
29.5 59 117.0 23.9 5.10 2036.39 5000.00 34.2 7.66 2139.93 5000.00
29.5 59 120.0 23.3 5.10 2088.60 5000.00 33.3 7.66 2194.80 5000.00
32.7 53 130.0 21.5 4.58 2032.55 5000.00 30.8 6.88 2135.90 5000.00
32.7 53 158.0 17.7 4.58 2470.33 5000.00 25.3 6.88 2595.94 5000.00
32.7 53 195.0 14.4 4.58 3048.83 5000.00 20.5 6.88 3203.85 5000.00
32.7 53 243.0 11.5 4.58 3799.31 5000.00 16.5 6.88 3992.49 5000.00
32.7 53 311.0 9.0 4.58 4862.49 5000.00 12.9 6.88 5000.00 5000.00
32.7 53 323.0 8.7 4.58 5000.00 5000.00 12.4 6.88 5000.00 5000.00

Please let us know your requirements and we will provide you with transmission solutions.

Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs

Copper Winding High Power 42mm rs 775 Brushed 300 rpm Dc Gear Motor 12v 24v rohs
