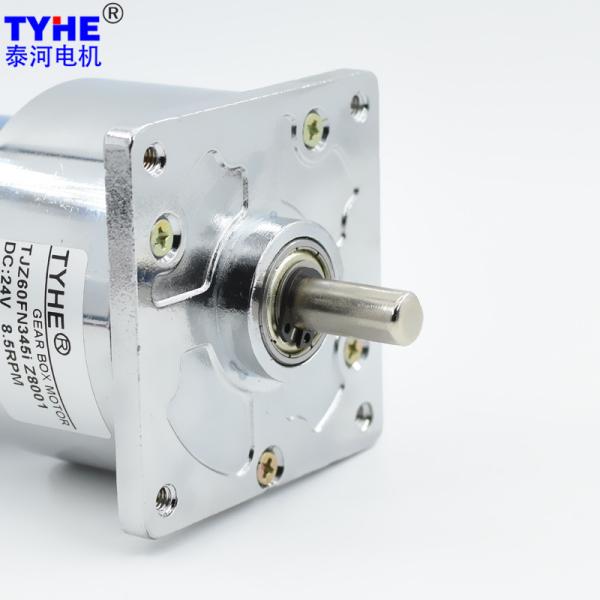

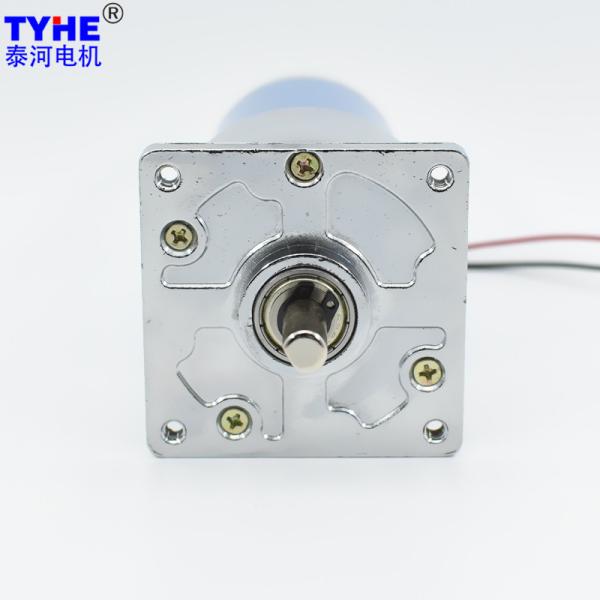

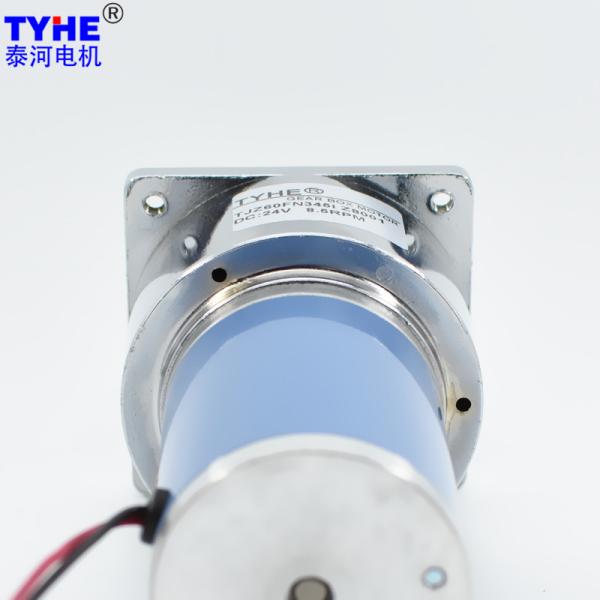

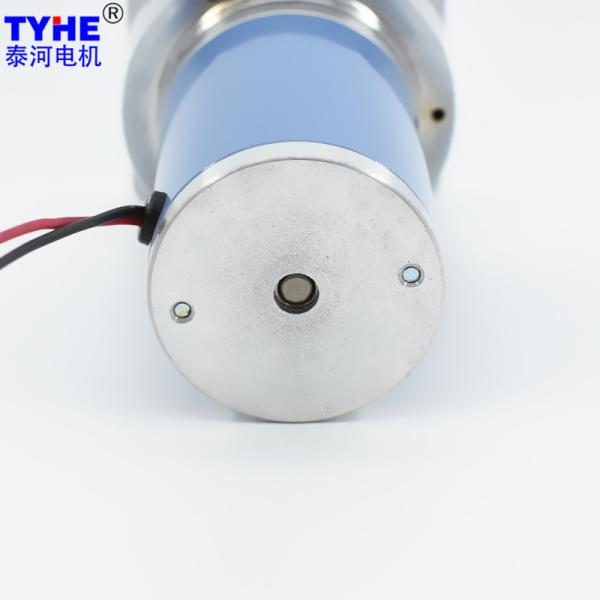

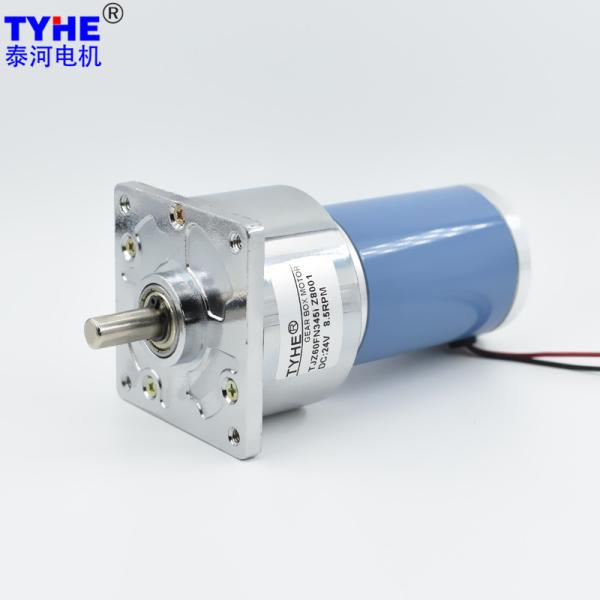

Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Specifications
Brand Name :
TYHE
Model Number :
TJZ60FN
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
60mm square cover
Voltage :
12-24V
Speed :
5-1000rpm
Torque :
≤10N.m
Gear material :
Steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
Agricultural unmanned aerial vehicle
Keywords :
Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
Description

Products Description

Reversible IE3 60mm Size High Power 60watts 12v 24v Dc Gear Motor For Robot

2D drawing

Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot


Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY4564 12 3500 300 2800 1.08 27.50 8.06 62.50 82.50 7.50
ZY4564 12 5100 610 4080 2.19 38.00 16.23 61.89 114.00 15.25
ZY4564 24 6000 500 4800 1.92 59.80 30.06 65.34 179.40 14.00
ZY4564 24 7000 570 5600 2.23 57.00 33.42 62.38 171.00 16.53
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 12V-3500RPM Input 12V-5100RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 482.8 6.53 129.20 387.59 703.4 13.15 178.52 535.57
28.5 81 6.8 411.8 6.53 151.47 454.41 600.0 13.15 209.30 627.91
28.5 81 7.9 354.4 6.53 175.97 527.92 516.5 13.15 243.16 729.49
28.5 81 8.8 318.2 6.53 196.02 588.06 463.6 13.15 270.86 812.59
28.5 81 9.8 285.7 6.53 218.30 654.89 416.3 13.15 301.64 904.93
28.5 81 10.5 266.7 6.53 233.89 701.66 388.6 13.15 323.19 969.57
28.5 81 11.6 241.4 6.53 258.39 775.17 351.7 13.15 357.05 1071.14
33.5 73 18.6 150.5 5.89 373.40 1120.19 219.4 11.85 515.96 1547.89
33.5 73 24.0 116.7 5.89 481.80 1445.40 170.0 11.85 665.76 1997.28
33.5 73 28.0 100.0 5.89 562.10 1686.30 145.7 11.85 776.72 2330.16
33.5 73 33.6 83.3 5.89 674.52 2023.56 121.4 11.85 932.06 2796.19
36 65.6 60.0 46.7 5.29 1082.40 3247.20 68.0 10.65 1495.68 4487.04
36 65.6 71.0 39.4 5.29 1280.84 3842.52 57.5 10.65 1769.89 5309.66
36 65.6 83.0 33.7 5.29 1497.32 4491.96 49.2 10.65 2069.02 6207.07
36 65.6 91.0 30.8 5.29 1641.64 4924.92 44.8 10.65 2268.45 6805.34
36 65.6 100.0 28.0 5.29 1804.00 5412.00 40.8 10.65 2492.80 7478.40
36 65.6 108.0 25.9 5.29 1948.32 5844.96 37.8 10.65 2692.22 8076.67
36 65.6 118.0 23.7 5.29 2128.72 6386.16 34.6 10.65 2941.50 8824.51
40 59 191.0 14.7 4.76 3098.98 9296.93 21.4 9.58 4282.22 12846.66
40 59 226.0 12.4 4.76 3666.85 11000.55 18.1 9.58 5066.92 15000.00
40 59 265.0 10.6 4.76 4299.63 12898.88 15.4 9.58 5941.30 15000.00
40 59 288.0 9.7 4.76 4672.80 14018.40 14.2 9.58 6456.96 15000.00
40 59 345.0 8.1 4.76 5597.63 15000.00 11.8 9.58 7734.90 15000.00
40 59 379.0 7.4 4.76 6149.28 15000.00 10.8 9.58 8497.18 15000.00
DC Motor With Gearbox Technical Data (1.25M)
Gearbox parameters 24V-6000RPM Input 24V-7000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
28.5 81 5.8 827.6 24.35 280.94 842.82 965.5 27.07 267.79 803.36
28.5 81 6.8 705.9 24.35 329.38 988.14 823.5 27.07 313.96 941.87
28.5 81 7.9 607.6 24.35 382.66 1147.98 708.9 27.07 364.74 1094.23
28.5 81 8.8 545.5 24.35 426.25 1278.76 636.4 27.07 406.30 1218.89
28.5 81 9.8 489.8 24.35 474.69 1424.08 571.4 27.07 452.47 1357.40
28.5 81 10.5 457.1 24.35 508.60 1525.80 533.3 27.07 484.79 1454.36
28.5 81 11.6 413.8 24.35 561.88 1685.64 482.8 27.07 535.57 1606.72
33.5 73 18.6 258.1 21.94 811.96 2435.89 301.1 24.40 773.95 2321.84
33.5 73 24.0 200.0 21.94 1047.70 3143.09 233.3 24.40 998.64 2995.92
33.5 73 28.0 171.4 21.94 1222.31 3666.94 200.0 24.40 1165.08 3495.24
33.5 73 33.6 142.9 21.94 1466.77 4400.32 166.7 24.40 1398.10 4194.29
36 65.6 60.0 80.0 19.72 2353.73 7061.18 93.3 21.93 2243.52 6730.56
36 65.6 71.0 67.6 19.72 2785.24 8355.73 78.9 21.93 2654.83 7964.50
36 65.6 83.0 57.8 19.72 3255.99 9767.97 67.5 21.93 3103.54 9310.61
36 65.6 91.0 52.7 19.72 3569.82 10709.46 61.5 21.93 3402.67 10208.02
36 65.6 100.0 48.0 19.72 3922.88 11768.64 56.0 21.93 3739.20 11217.60
36 65.6 108.0 44.4 19.72 4236.71 12710.13 51.9 21.93 4038.34 12115.01
36 65.6 118.0 40.7 19.72 4629.00 13887.00 47.5 21.93 4412.26 13236.77
40 59 191.0 25.1 17.73 6738.86 15000.00 29.3 19.72 6423.33 15000.00
40 59 226.0 21.2 17.73 7973.73 15000.00 24.8 19.72 7600.38 15000.00
40 59 265.0 18.1 17.73 9349.73 15000.00 21.1 19.72 8911.95 15000.00
40 59 288.0 16.7 17.73 10161.22 15000.00 19.4 19.72 9685.44 15000.00
40 59 345.0 13.9 17.73 12172.29 15000.00 16.2 19.72 11602.35 15000.00
40 59 379.0 12.7 17.73 13371.88 15000.00 14.8 19.72 12745.77 15000.00

Please let us know your requirements and we will provide you with transmission solutions.

Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot

Reversible IE3 60mm Size High Power 60watts 12v 24v dc gear motor for robot
