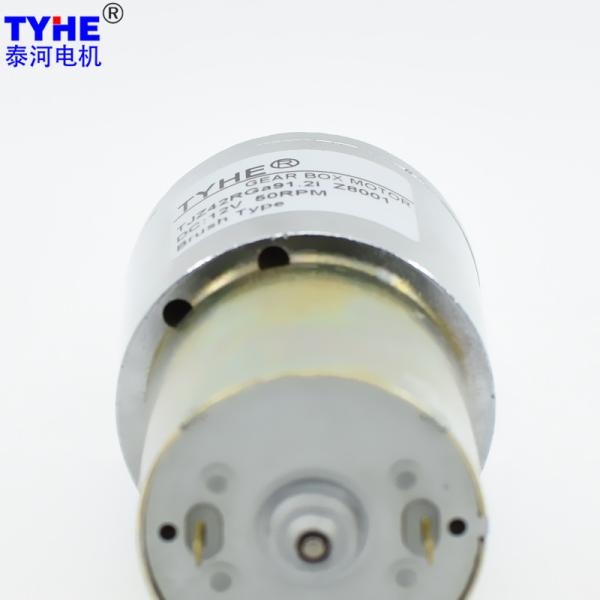

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Specifications
Brand Name :
TYHE
Model Number :
TJZ42RGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
42mm
Voltage :
6-24V
Speed :
Customized
Torque :
5N.m
Gear material :
Steel
Commutation :
brushes
Type :
Gear Motor, Micro Motor
Usage :
medical robot, automatic feeder
Keywords :
Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
Description

Products Description

Medical Robot Rs530/520 High Torque High Speed Dc Motor With 42mm Steel Spur Gearbox

2D drawing

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox


Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
RS530 24 7500 72 6000 0.37 9.25 5.81 64.63 27.75 3.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1120.0 1.26 10.73 32.20 1600.0 3.02 18.02 54.07
25.7 81 3.1 903.2 1.26 13.31 39.92 1290.3 3.02 22.35 67.04
25.7 81 3.8 736.8 1.26 16.31 48.94 1052.6 3.02 27.39 82.18
25.7 81 4.8 583.3 1.26 20.61 61.82 833.3 3.02 34.60 103.81
25.7 81 6.1 459.0 1.26 26.19 78.56 655.7 3.02 43.97 131.92
25.7 73 6.8 411.8 1.13 26.31 78.93 588.2 2.72 44.18 132.54
25.7 73 8.3 337.3 1.13 32.11 96.34 481.9 2.72 53.93 161.78
25.7 73 10.3 271.8 1.13 39.85 119.55 388.3 2.72 66.92 200.76
25.7 73 12.8 218.8 1.13 49.52 148.57 312.5 2.72 83.16 249.48
25.7 73 16.4 170.7 1.13 63.45 190.35 243.9 2.72 106.55 319.65
25.7 65.6 18.2 153.8 1.02 63.28 189.83 219.8 2.45 106.26 318.78
25.7 65.6 22.2 126.1 1.02 77.18 231.55 180.2 2.45 129.61 388.84
25.7 65.6 27.4 102.2 1.02 95.26 285.79 146.0 2.45 159.97 479.92
25.7 65.6 34.2 81.9 1.02 118.91 356.72 117.0 2.45 199.67 599.02
25.7 65.6 43.8 63.9 1.02 152.28 456.85 91.3 2.45 255.72 767.17
29.5 59 48.6 57.6 0.92 151.97 455.92 82.3 2.20 255.20 765.60
29.5 59 59.3 47.2 0.92 185.43 556.29 67.5 2.20 311.38 934.15
29.5 59 73.0 38.4 0.92 228.27 684.81 54.8 2.20 383.32 1149.97
29.5 59 91.2 30.7 0.92 285.18 855.55 43.9 2.20 478.89 1436.67
29.5 59 117.0 23.9 0.92 365.86 1097.58 34.2 2.20 614.37 1843.10
29.5 59 120.0 23.3 0.92 375.24 1125.72 33.3 2.20 630.12 1890.36
32.7 53 130.0 21.5 0.82 365.17 1095.51 30.8 1.98 613.21 1839.63
32.7 53 158.0 17.7 0.82 443.82 1331.47 25.3 1.98 745.29 2235.86
32.7 53 195.0 14.4 0.82 547.76 1643.27 20.5 1.98 919.82 2759.45
32.7 53 243.0 11.5 0.82 682.59 2047.76 16.5 1.98 1146.23 3438.69
32.7 53 311.0 9.0 0.82 873.60 2620.80 12.9 1.98 1466.99 4400.96
32.7 53 323.0 8.7 0.82 907.31 2721.92 12.4 1.98 1523.59 4570.77
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters 24V-5000RPM Input 24V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
25.7 81 2.5 1600.0 3.09 18.47 55.40 2400.0 4.71 18.73 56.19
25.7 81 3.1 1290.3 3.09 22.90 68.70 1935.5 4.71 23.23 69.68
25.7 81 3.8 1052.6 3.09 28.07 84.21 1578.9 4.71 28.47 85.41
25.7 81 4.8 833.3 3.09 35.46 106.38 1250.0 4.71 35.96 107.89
25.7 81 6.1 655.7 3.09 45.06 135.19 983.6 4.71 45.70 137.11
25.7 73 6.8 588.2 2.79 45.27 135.82 882.4 4.24 45.92 137.75
25.7 73 8.3 481.9 2.79 55.26 165.77 722.9 4.24 56.05 168.14
25.7 73 10.3 388.3 2.79 68.57 205.72 582.5 4.24 69.55 208.65
25.7 73 12.8 312.5 2.79 85.22 255.65 468.8 4.24 86.43 259.30
25.7 73 16.4 243.9 2.79 109.18 327.55 365.9 4.24 110.74 332.22
25.7 65.6 18.2 219.8 2.51 108.89 326.66 329.7 3.81 110.44 331.31
25.7 65.6 22.2 180.2 2.51 132.82 398.45 270.3 3.81 134.71 404.13
25.7 65.6 27.4 146.0 2.51 163.93 491.78 219.0 3.81 166.26 498.79
25.7 65.6 34.2 117.0 2.51 204.61 613.83 175.4 3.81 207.53 622.58
25.7 65.6 43.8 91.3 2.51 262.04 786.13 137.0 3.81 265.78 797.34
29.5 59 48.6 82.3 2.25 261.51 784.52 123.5 3.43 265.23 795.70
29.5 59 59.3 67.5 2.25 319.08 957.24 101.2 3.43 323.63 970.89
29.5 59 73.0 54.8 2.25 392.80 1178.40 82.2 3.43 398.40 1195.19
29.5 59 91.2 43.9 2.25 490.73 1472.19 65.8 3.43 497.72 1493.17
29.5 59 117.0 34.2 2.25 629.55 1888.66 51.3 3.43 638.53 1915.58
29.5 59 120.0 33.3 2.25 645.70 1937.09 50.0 3.43 654.90 1964.70
32.7 53 130.0 30.8 2.02 628.37 1885.10 46.2 3.08 637.33 1911.98
32.7 53 158.0 25.3 2.02 763.71 2291.13 38.0 3.08 774.60 2323.79
32.7 53 195.0 20.5 2.02 942.55 2827.66 30.8 3.08 955.99 2867.96
32.7 53 243.0 16.5 2.02 1174.56 3523.69 24.7 3.08 1191.31 3573.92
32.7 53 311.0 12.9 2.02 1503.25 4509.75 19.3 3.08 1524.68 4574.03
32.7 53 323.0 12.4 2.02 1561.25 4683.76 18.6 3.08 1583.51 4750.52

Please let us know your requirements and we will provide you with transmission solutions.

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox

Medical Robot rs530/520 high torque high speed dc motor with 42mm steel spur gearbox
