Specifications
Brand Name :
TYHE
Model Number :
TJZ37ROO
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm
Voltage :
12-24V
Speed :
Customized
Torque :
2.5N.m
Gear material :
Powder metallurgy, steel
Commutation :
Brush brushes brushed
Type :
Gear Motor, Micro Motor
Usage :
Paper dispenser
Keywords :
Reversible IE3 37mm Dia High Power 25watts 12 Volt Permanent Magnet Dc Gear Motor
Description

Products Description

Reversible IE3 37mm Dia High Power 25watts 12 Volt Permanent Magnet Dc Gear Motor

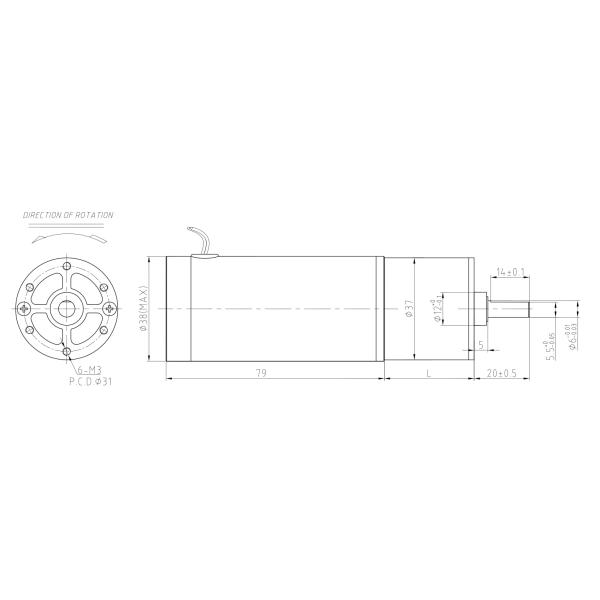

2D drawing

Reversible IE3 37mm Dia High Power 25watts 12 Volt Permanent Magnet Dc Gear Motor

Model End cover dimensions Motor type Regular Shaft Weight
TJZ37ROO φ37mm TH38S-1 6mm-D cut 380g


Reversible IE3 37mm Dia High Power 25watts 12 Volt Permanent Magnet Dc Gear Motor

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
ZY3879 12 4500 350 3600 1.23 24.50 9.24 62.83 73.50 7.00
ZY3879 12 5000 400 4000 1.35 24.50 10.26 63.34 73.50 7.50
ZY3879 12 8000 900 6400 2.65 29.70 19.90 62.59 89.10 13.00
ZY3879 24 3500 100 2800 0.48 24.90 7.30 63.37 74.70 3.30
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-4500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 782.6 7.48 91.29 273.86 869.6 8.31 91.29 273.86
22.5 81 5.9 610.2 7.48 117.09 351.26 678.0 8.31 117.09 351.26
22.5 73 8.4 428.6 6.74 150.23 450.70 476.2 7.49 150.23 450.70
22.5 73 10.6 339.6 6.74 189.58 568.74 377.4 7.49 189.58 568.74
22.5 73 13.5 266.7 6.74 241.45 724.34 296.3 7.49 241.45 724.34
24.5 65.6 19.3 186.5 6.06 310.19 930.57 207.3 6.73 310.19 930.57
24.5 65.6 24.4 147.5 6.06 392.16 1176.47 163.9 6.73 392.16 1176.47
24.5 65.6 31.6 113.9 6.06 507.88 1523.63 126.6 6.73 507.88 1523.63
26.5 59 45.0 80.0 5.45 650.48 1951.43 88.9 6.05 650.48 1951.43
26.5 59 57.0 63.2 5.45 823.94 2471.81 70.2 6.05 823.94 2471.81
26.5 59 73.6 48.9 5.45 1063.89 2500.00 54.3 6.05 1063.89 2500.00
29.5 53 105.0 34.3 4.89 1363.43 2500.00 38.1 5.44 1363.43 2500.00
29.5 53 133.0 27.1 4.89 1727.01 2500.00 30.1 5.44 1727.01 2500.00
29.5 53 172.0 20.9 4.89 2233.42 2500.00 23.3 5.44 2233.42 2500.00
32.5 47.8 245.0 14.7 4.41 2500.00 2500.00 16.3 4.91 2500.00 2500.00
32.5 47.8 310.0 11.6 4.41 2500.00 2500.00 12.9 4.91 2500.00 2500.00
32.5 47.8 401.0 9.0 4.41 2500.00 2500.00 10.0 4.91 2500.00 2500.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-8000RPM Input 24V-3500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 1391.3 16.12 110.66 331.99 608.7 5.91 92.78 278.33
22.5 81 5.9 1084.7 16.12 141.94 425.81 474.6 5.91 119.00 356.99
22.5 73 8.4 761.9 14.53 182.12 546.36 333.3 5.33 152.69 458.06
22.5 73 10.6 603.8 14.53 229.82 689.46 264.2 5.33 192.68 578.03
22.5 73 13.5 474.1 14.53 292.69 878.08 207.4 5.33 245.39 736.17
24.5 65.6 19.3 331.6 13.06 376.03 1128.08 145.1 4.79 315.25 945.76
24.5 65.6 24.4 262.3 13.06 475.39 1426.17 114.8 4.79 398.56 1195.68
24.5 65.6 31.6 202.5 13.06 615.67 1847.01 88.6 4.79 516.17 1548.50
26.5 59 45.0 142.2 11.74 788.54 2365.61 62.2 4.31 661.10 1983.29
26.5 59 57.0 112.3 11.74 998.81 2500.00 49.1 4.31 837.39 2500.00
26.5 59 73.6 87.0 11.74 1289.69 2500.00 38.0 4.31 1081.26 2500.00
29.5 53 105.0 61.0 10.55 1652.81 2500.00 26.7 3.87 1385.69 2500.00
29.5 53 133.0 48.1 10.55 2093.55 2500.00 21.1 3.87 1755.20 2500.00
29.5 53 172.0 37.2 10.55 2500.00 2500.00 16.3 3.87 2269.88 2500.00
32.5 47.8 245.0 26.1 9.51 2500.00 2500.00 11.4 3.49 2500.00 2500.00
32.5 47.8 310.0 20.6 9.51 2500.00 2500.00 9.0 3.49 2500.00 2500.00
32.5 47.8 401.0 16.0 9.51 2500.00 2500.00 7.0 3.49 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.
