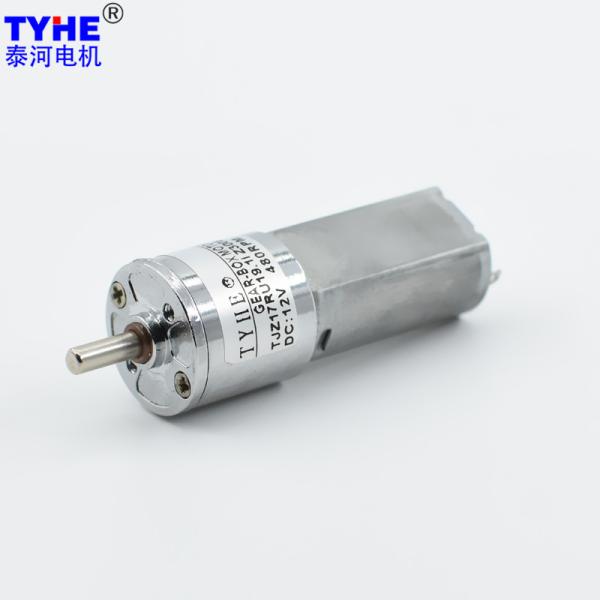

Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Specifications
Brand Name :
TYHE
Model Number :
TJZ17RU
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
17mm diameter
Voltage :
3v 5v 6v 7.4v 9v customized
Speed :
10-1000rpm
Torque :
0.5N.m
Gear material :
Powder metallurgy
Commutation :
Brushed
Type :
Gear Motor, Micro Motor
Usage :
Tattoo pen, robot
Keywords :
Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
Description

Products Description

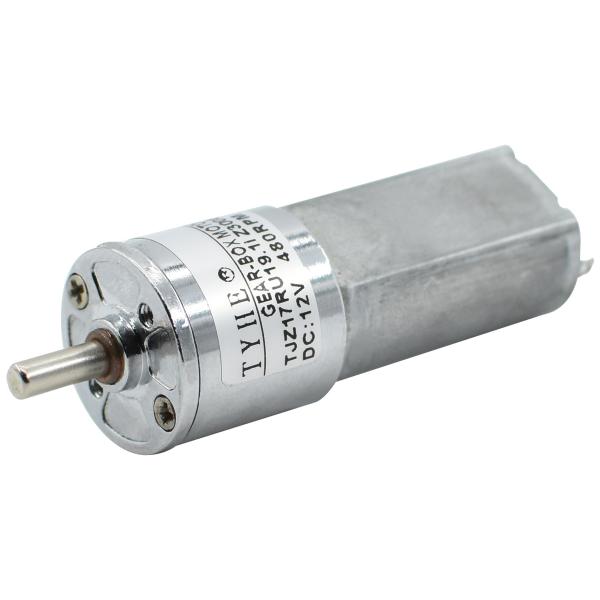

Low Noise Powder Gears 17mm Dia 3v 7.4v 12v 24v 1watt 20rpm Brushes Dc Spur Gear Motor Ce

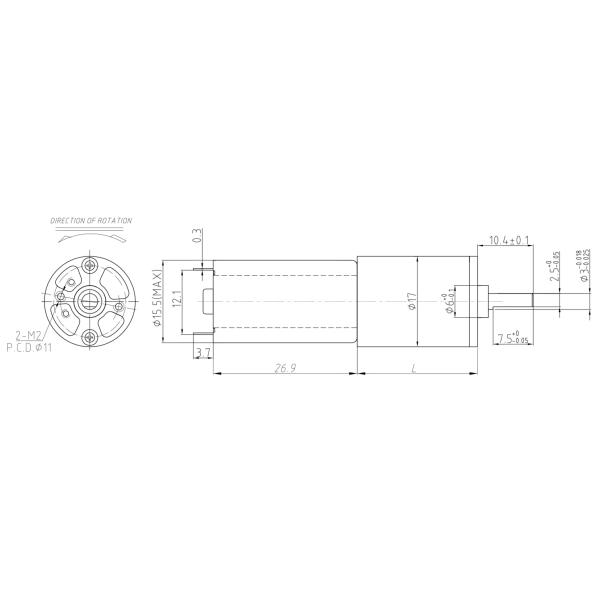

2D drawing

Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce

Model End cover dimensions Motor type Regular Shaft Weight
TJZ17RU φ17mm FF050 3mm-D cut 60g


Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
FF050 6 7500 65 6000 0.12 0.70 0.44 61.08 2.10 0.71
FF050 3 5000 50 4000 0.08 0.37 0.15 64.57 1.11 0.38
FF050 24 15000 20 12000 0.08 0.95 1.19 63.77 2.85 0.53
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 6V-7500RPM Input 3V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 1363.6 0.36 2.49 7.48 909.1 0.13 1.32 3.96
16.5 73 9.1 659.3 0.32 4.65 13.95 439.6 0.11 2.46 7.37
16.5 65.5 19.1 314.1 0.29 8.76 26.27 209.4 0.10 4.63 13.89
16.5 59 40.0 150.0 0.26 16.52 49.56 100.0 0.09 8.73 26.20
18.5 53 83.5 71.9 0.23 30.98 92.94 47.9 0.08 16.37 49.12
20.5 47.8 175.0 34.3 0.21 58.56 175.67 22.9 0.07 30.95 92.85
22.5 43 365.0 16.4 0.19 109.87 329.60 11.0 0.07 58.07 174.21
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 24V-15000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 2727.3 0.97 3.39 10.16
16.5 73 9.1 1318.7 0.87 6.31 18.93
16.5 65.5 19.1 628.3 0.78 11.88 35.65
16.5 59 40.0 300.0 0.70 22.42 67.26
18.5 53 83.5 143.7 0.63 42.04 126.13
20.5 47.8 175.0 68.6 0.57 79.47 238.40
22.5 43 365.0 32.9 0.51 149.10 447.31

Please let us know your requirements and we will provide you with transmission solutions.

Company Profile

WenZhou TYHE Motor Co.,ltd. was established in May, 2010 and is located in WenZhou, China. TYHE covers an area of 3500㎡. And we have excellent teams who focus on R&D, QC and company operation.

  1. 11 years experiences in dc gear motor industry.
  2. Accept OEM or ODM orders.
  3. 5 days lead time for samples.
  4. Monthly capacity is ≥500000pcs.
  5. Warranty: one year.
  6. 10 R&D engineers offer professional solutions.
  7. Fast delivery time base on different quantities.
  8. CE, ROHS and ISO9001 certificated.

Low Noise powder gears 17mm dia 3v 7.4v 12v 24v 1watt 20rpm brushes dc spur gear motor ce
