Specifications
Brand Name :
TYHE
Model Number :
TJZ16RU
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
150000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
16mm
Voltage :
1.5v 3v or customized
Speed :
100rpm or customized
Torque :
＜0.5N.m
Gear material :
Copper
Commutation :
Brush brushes
Type :
Gear Motor, Micro Motor
Usage :
Smart lock, beauty apparatus
Keywords :
China 16mm dia 5kgf.Cm 3v 6v 12v 100rpm Dc Spur Gear Motor for beauty apparatus
Description

Products Description

China 16mm Dia 5kgf.Cm 3v 6v 12v 100rpm Dc Spur Gear Motor For Beauty Apparatus

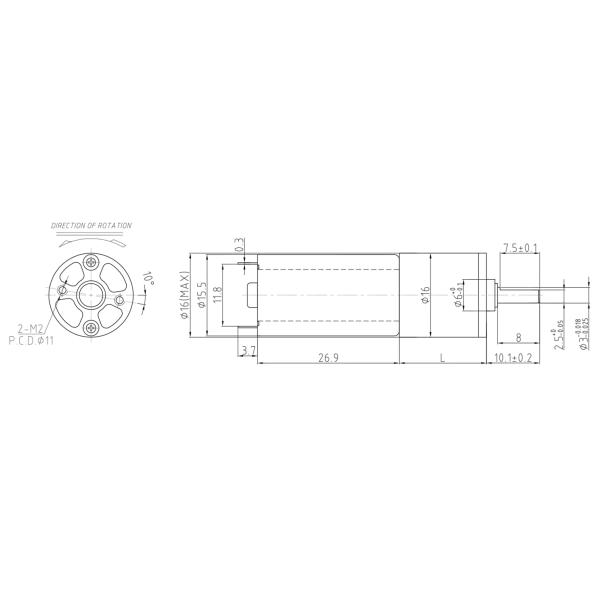

2D drawing

China 16mm dia 5kgf.Cm 3v 6v 12v 100rpm Dc Spur Gear Motor for beauty apparatus

Model End cover dimensions Motor type Regular Shaft Weight
TJZ16RU φ16mm FF050 3mm-D cut 65g


China 16mm dia 5kgf.Cm 3v 6v 12v 100rpm Dc Spur Gear Motor for beauty apparatus

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
FF050 6 7500 65 6000 0.12 0.70 0.44 61.08 2.10 0.71
FF050 3 5000 50 4000 0.08 0.37 0.15 64.57 1.11 0.38
FF050 24 15000 20 12000 0.08 0.95 1.19 63.77 2.85 0.53
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 6V-7500RPM Input 3V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 1363.6 0.36 2.49 7.48 909.1 0.13 1.32 3.96
16.5 73 8.8 681.8 0.32 4.50 13.49 454.5 0.11 2.38 7.13
16.5 73 9.7 618.6 0.32 4.96 14.87 412.4 0.11 2.62 7.86
16.5 65.6 17.6 340.9 0.29 8.08 24.25 227.3 0.10 4.27 12.82
16.5 65.6 19.4 309.3 0.29 8.91 26.73 206.2 0.10 4.71 14.13
16.5 65.6 21.3 281.7 0.29 9.78 29.34 187.8 0.10 5.17 15.51
16.5 59 35.2 170.5 0.26 14.54 43.61 113.6 0.09 7.68 23.05
16.5 59 38.7 155.0 0.26 15.98 47.95 103.4 0.09 8.45 25.34
16.5 59 42.6 140.8 0.26 17.59 52.78 93.9 0.09 9.30 27.90
16.5 59 46.9 127.9 0.26 19.37 58.11 85.3 0.09 10.24 30.71
18.5 53 70.0 85.7 0.23 25.97 77.91 57.1 0.08 13.73 41.18
18.5 53 77.0 77.9 0.23 28.57 85.70 51.9 0.08 15.10 45.30
18.5 53 85.0 70.6 0.23 31.54 94.61 47.1 0.08 16.67 50.01
18.5 53 94.0 63.8 0.23 34.87 104.62 42.6 0.08 18.43 55.30
18.5 53 103.0 58.3 0.23 38.21 114.64 38.8 0.08 20.20 60.59
20.5 47.8 141.0 42.6 0.21 47.18 141.54 28.4 0.07 24.94 74.81
20.5 47.8 155.0 38.7 0.21 51.86 155.59 25.8 0.07 27.41 82.24
20.5 47.8 170.0 35.3 0.21 56.88 170.65 23.5 0.07 30.07 90.20
20.5 47.8 187.0 32.1 0.21 62.57 187.71 21.4 0.07 33.07 99.22
20.5 47.8 206.0 29.1 0.21 68.93 206.78 19.4 0.07 36.43 109.30
20.5 47.8 227.0 26.4 0.21 75.95 227.86 17.6 0.07 40.15 120.44
22.5 43 282.0 21.3 0.19 84.88 254.65 14.2 0.07 44.87 134.60
22.5 43 310.0 19.4 0.19 93.31 279.93 12.9 0.07 49.32 147.96
22.5 43 341.0 17.6 0.19 102.64 307.92 11.7 0.07 54.25 162.76
22.5 43 375.0 16.0 0.19 112.88 338.63 10.7 0.07 59.66 178.99
22.5 43 412.0 14.6 0.19 124.01 372.04 9.7 0.07 65.55 196.65
22.5 43 454.0 13.2 0.19 136.65 409.96 8.8 0.07 72.23 216.69
22.5 43 499.0 12.0 0.19 150.20 450.60 8.0 0.07 79.39 238.17
DC Motor With Gearbox Technical Data (0.25M)
Gearbox parameters 24V-15000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
16.5 81 4.4 2727.3 0.97 3.39 10.16
16.5 73 8.8 1363.6 0.87 6.10 18.31
16.5 73 9.7 1237.1 0.87 6.73 20.18
16.5 65.6 17.6 681.8 0.78 10.97 32.90
16.5 65.6 19.4 618.6 0.78 12.09 36.27
16.5 65.6 21.3 563.4 0.78 13.27 39.82
16.5 59 35.2 340.9 0.70 19.73 59.19
16.5 59 38.7 310.1 0.70 21.69 65.07
16.5 59 42.6 281.7 0.70 23.88 71.63
16.5 59 46.9 255.9 0.70 26.29 78.86
18.5 53 70.0 171.4 0.63 35.25 105.74
18.5 53 77.0 155.8 0.63 38.77 116.31
18.5 53 85.0 141.2 0.63 42.80 128.39
18.5 53 94.0 127.7 0.63 47.33 141.99
18.5 53 103.0 116.5 0.63 51.86 155.58
20.5 47.8 141.0 85.1 0.57 64.03 192.08
20.5 47.8 155.0 77.4 0.57 70.39 211.16
20.5 47.8 170.0 70.6 0.57 77.20 231.59
20.5 47.8 187.0 64.2 0.57 84.92 254.75
20.5 47.8 206.0 58.3 0.57 93.54 280.63
20.5 47.8 227.0 52.9 0.57 103.08 309.24
22.5 43 282.0 42.6 0.51 115.20 345.59
22.5 43 310.0 38.7 0.51 126.64 379.91
22.5 43 341.0 35.2 0.51 139.30 417.90
22.5 43 375.0 32.0 0.51 153.19 459.56
22.5 43 412.0 29.1 0.51 168.30 504.91
22.5 43 454.0 26.4 0.51 185.46 556.38
22.5 43 499.0 24.0 0.51 203.84 611.52

Please let us know your requirements and we will provide you with transmission solutions.
