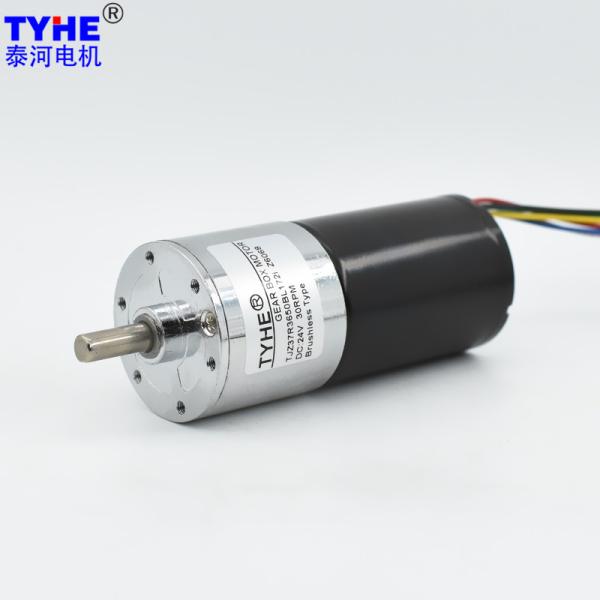

37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
Specifications
Brand Name :
TYHE
Model Number :
TJZ37R3650BL
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
120pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
37mm diameter
Voltage :
12-24V customized
Speed :
customized
Torque :
2N.m
Gear material :
Powder metallurgy, steel gear
Commutation :
Brushless
Type :
Gear Motor, Micro Motor
Usage :
Biological equipment
Keywords :
Permanent Magnet 37mm Diameter Low Speed 10rpm 12v 24v Dc Brushless Gear Motor
Description

Products Description

Permanent Magnet 37mm Diameter Low Speed 10rpm 12v 24v Dc Brushless Gear Motor

2D drawing

37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed


37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
3650BL 12 5000 350 4000 1.07 19.20 8.04 62.83 57.60 6.50
3650BL 24 5000 120 4000 0.47 17.80 7.46 65.86 53.40 3.50
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-5000RPM Input 24V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
22.5 81 4.6 869.6 6.51 71.54 214.62 869.6 6.04 66.32 198.97
22.5 81 5.9 678.0 6.51 91.76 275.27 678.0 6.04 85.07 255.20
22.5 73 8.4 476.2 5.9 117.73 353.20 476.19 5.44 109.15 327.45
22.5 73 10.6 377.4 5.9 148.57 445.71 377.36 5.44 137.74 413.21
22.5 73 13.5 296.3 5.9 189.22 567.65 296.30 5.44 175.42 526.26
24.5 65.6 19.3 207.3 5.28 243.09 729.26 207.3 4.89 225.36 676.09
24.5 65.6 24.4 163.9 5.28 307.32 921.97 163.9 4.89 284.91 854.74
24.5 65.6 31.6 126.6 5.28 398.01 1194.02 126.6 4.89 368.99 1106.96
26.5 59 45.0 88.9 4.7 509.76 1529.28 88.89 4.40 472.59 1417.77
26.5 59 57.0 70.2 4.7 645.70 1937.09 70.18 4.40 598.61 1795.84
26.5 59 73.6 54.3 4.7 833.74 2500.00 54.35 4.40 772.95 2318.84
29.5 53 105.0 38.1 4.26 1068.48 2500.00 38.1 3.95 990.57 2500.00
29.5 53 133.0 30.1 4.26 1353.41 2500.00 30.1 3.95 1254.72 2500.00
29.5 53 172.0 23.3 4.26 1750.27 2500.00 23.3 3.95 1622.65 2500.00
32.5 47.8 245.0 16.3 3.8 2248.51 2500.00 16.33 3.56 2084.56 2500.00
32.5 47.8 310.0 12.9 3.8 2500.00 2500.00 12.90 3.56 2500.00 2500.00
32.5 47.8 401.0 10.0 3.8 2500.00 2500.00 9.98 3.56 2500.00 2500.00

Please let us know your requirements and we will provide you with transmission solutions.

Typical Applications

  • Household Appliances:Electric curtain, Intergrated cooker, Coffee maker, Intelligent closestool, Sweeping robot, Dish-washing Machine, Cooker hood, Electric lock.
  • Hair Care: Hair Curler, Massager, Electric Hair Clipper.
  • Office Equipment: Shredder, Printer, Projector, Counting Machine.
  • Medical Equipment: Massager Chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair.
  • Industrial Equipment: Water valve, Electrical valve, Gas valve, Air switch, Automatic door, Automatic lubrication equipment.
  • Business Equipment: Vending Machines, Parking locks, ATM machines, stage lights.
  • Intelligent Robot: Machanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot.

37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed

37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
