0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
Specifications
Brand Name :
TYHE
Model Number :
TH63S
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
63mm*100mm
Voltage :
24V or customize
Speed :
6000 rpm or Customized
Torque :
120mN.m
Commutation :
brushed
Type :
Brushes dc motor, small dc motor
Keywords :
China Supplier 63mm Diameter 12v 24v 150w 200w 7000 Rpm 0.1nm Pmdc Brushed Dc Motor
Description

Products Description

China Supplier 63mm Diameter 12v 24v 150w 200w 7000 Rpm 0.1nm Pmdc Brushed Dc Motor

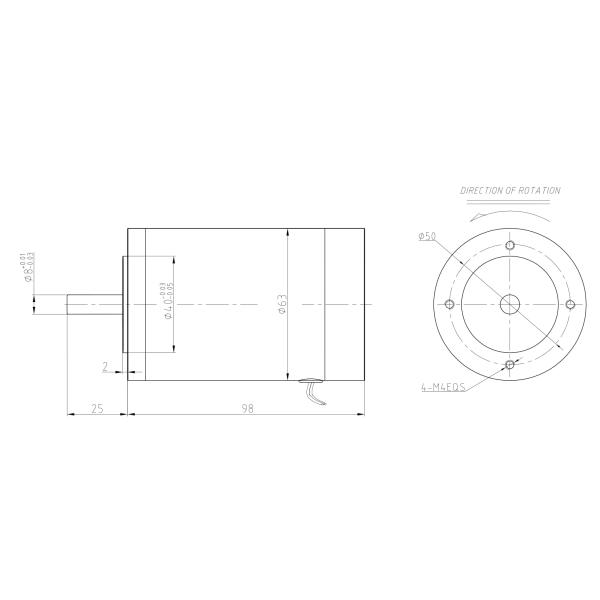

2D drawing

0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor


0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor

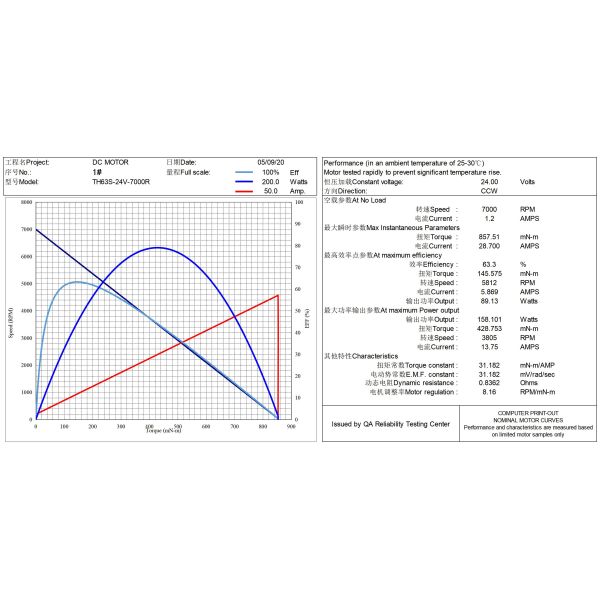

Specifications

Model Rated Voltage(V) No-Load Parameters Rated Parameters Startup Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
TH62/63S 24 5000 650 4000 4.39 160.65 67.29 63.84 481.95 41.00
TH62/63S 24 6000 800 4800 5.66 175.35 88.13 64.90 526.05 53.50
TH62/63S 24 7000 1200 5600 6.78 177.53 104.10 63.98 532.59 59.75

0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor

Please let us know your requirements and we will provide you with transmission solutions.

0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor0.1nm PMDC Brushed DC Motor 7000Rpm 150W 63mm 24V 200W DC Motor
