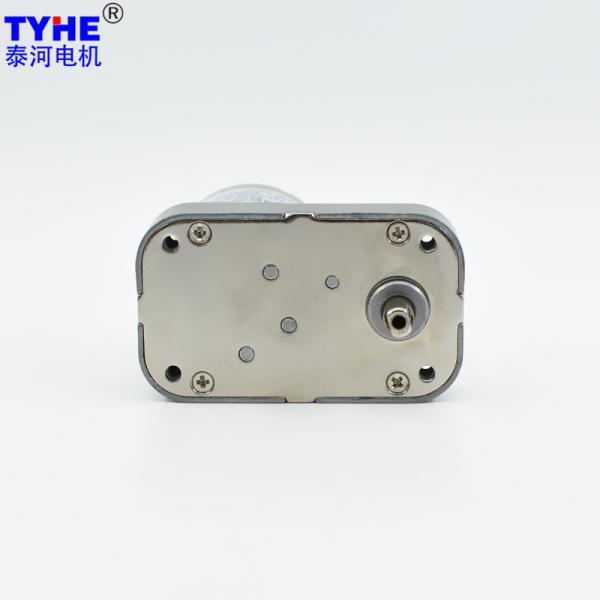

S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
Specifications
Brand Name :
TYHE
Model Number :
TJP64FGa
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
64mm*38mm
Voltage :
3v 24v or customized
Speed :
50-200rpm Customized
Torque :
1N.m
Gear material :
Powder metallurgy
Commutation :
Brushed
Type :
Flat Gear Motor
Keywords :
Commodity Stocks S-type 64*38mm size 5v 12v PMDC dc gear motor for toy car motors specifications
Description

Products Description

Commodity Stocks S-type 64*38mm size 5v 12v PMDC dc gear motor for toy car motors specifications

2D drawing

S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car


S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car

Specifications

DC Motor Technical Data
Model Rated Voltage(V) No-Load Parameters Rated Parameters Stall Parameters
Speed Current Speed Current Torque Output eff Torque Current
rpm mA rpm A mN.m W % mN.m A
RS530 12 3500 60 2800 0.21 5.30 1.55 61.91 15.90 1.43
RS530 12 5000 160 4000 0.49 8.90 3.73 62.86 26.70 3.05
RS530 12 6000 135 4800 0.68 9.90 4.98 61.20 29.70 5.70
RS530 12 6500 120 5200 0.70 9.80 5.34 63.83 29.40 6.20
RS530 12 7500 160 6000 0.80 9.50 5.97 62.30 28.50 6.70
RS530 24 3500 35 2800 0.12 5.90 1.73 62.68 17.70 0.75
RS530 24 5000 80 4000 0.25 9.12 3.82 62.83 27.36 1.60
RS530 24 7500 72 6000 0.37 9.25 5.81 64.63 27.75 3.20
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-3500RPM Input 12V-5000RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 136.6 1.13 79.31 237.94 195.1 2.72 133.19 399.57
64 73 25.1 111.6 1.13 97.11 291.34 159.4 2.72 163.07 489.22
64 73 28.8 97.2 1.13 111.43 334.28 138.9 2.72 187.11 561.34
64 73 35.2 79.5 1.13 136.19 408.57 113.6 2.72 228.69 686.08
64 65.6 41.0 68.3 1.02 142.55 427.65 97.6 2.45 239.37 718.12
64 65.6 50.0 56.0 1.02 173.84 521.52 80.0 2.45 291.92 875.76
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-6000RPM Input 12V-6500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 234.1 3.63 148.15 444.46 253.7 3.90 146.66 439.97
64 73 25.1 191.2 3.63 181.40 544.19 207.2 3.90 179.57 538.70
64 73 28.8 166.7 3.63 208.14 624.41 180.6 3.90 206.04 618.11
64 73 35.2 136.4 3.63 254.39 763.17 147.7 3.90 251.82 755.46
64 65.6 41.0 117.1 3.26 266.27 798.81 126.8 3.50 263.58 790.74
64 65.6 50.0 96.0 3.26 324.72 974.16 104.0 3.50 321.44 964.32
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 12V-7500RPM Input 24V-3500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 292.7 4.36 142.17 426.50 136.6 1.26 88.29 264.88
64 73 25.1 239.0 4.36 174.07 522.21 111.6 1.26 108.11 324.32
64 73 28.8 208.3 4.36 199.73 599.18 97.2 1.26 124.04 372.12
64 73 35.2 170.5 4.36 244.11 732.34 79.5 1.26 151.61 454.82
64 65.6 41.0 146.3 3.92 255.51 766.54 68.3 1.13 158.69 476.06
64 65.6 50.0 120.0 3.92 311.60 934.80 56.0 1.13 193.52 580.56
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters 24V-5000RPM Input 24V-7500RPM Input
Length (mm) Transmission Efficiency (%) Gear Ratio Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m) Rated Output Speed (RPM) Rated Output Power (W) Rated Torque (mN.m) Maximum Instantaneous Torque (mN.m)
64 73 20.5 195.1 2.79 136.48 409.44 292.7 4.24 138.43 415.28
64 73 25.1 159.4 2.79 167.11 501.32 239.0 4.24 169.49 508.46
64 73 28.8 138.9 2.79 191.74 575.22 208.3 4.24 194.47 583.42
64 73 35.2 113.6 2.79 234.35 703.04 170.5 4.24 237.69 713.06
64 65.6 41.0 97.6 2.51 245.29 735.87 146.3 3.81 248.79 746.36
64 65.6 50.0 80.0 2.51 299.14 897.41 120.0 3.81 303.40 910.20

Please let us know your requirements and we will provide you with transmission solutions.

S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car

S Type 64*38mm Permanent Magnet Flat Gear Motor 5V 12V For Toy Car
