20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
Specifications
Brand Name :
TYHE
Model Number :
TJW46FA
Certification :
CE/ROHS/ISO9001
Place of Origin :
China
MOQ :
500pcs
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs per month
Delivery Time :
15 working days after payment
Packaging Details :
Foam wrapped, carton packed
Size :
46mm*32mm
Voltage :
3v 24v or customized
Speed :
10-200rpm Customized
Torque :
1N.m
Gear material :
Powder metallurgy
Commutation :
Brushed
Type :
Worm Gear Motor
Keywords :
Custom 6v 12 Volt 20 Rpm Dc Right Angle High Torque Worm Gear Motor 12v High Torque
Description

Products Description

Custom 6v 12 Volt 20 Rpm Dc Right Angle High Torque Worm Gear Motor 12v High Torque

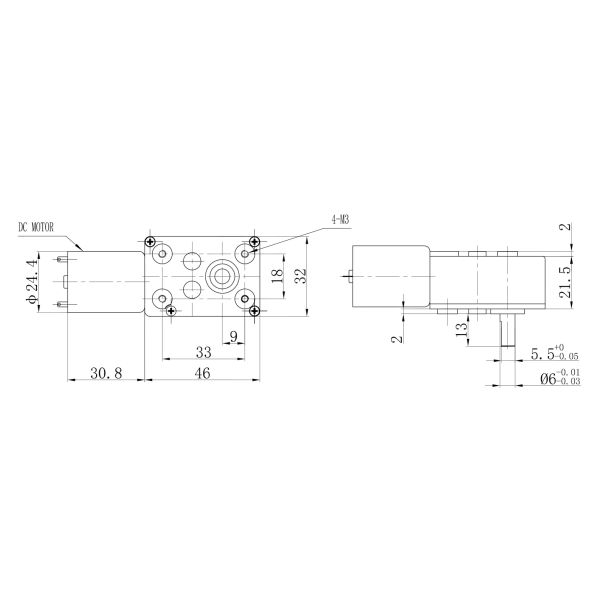

2D drawing

20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor


20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor

Specifications

DC Motor With Worm Gearbox Technical Data
Model GearBox Parameters DC Motor Parameters
Ratio

Rated Torque

(kgf.cm)

Stall Torque

(kgf.cm)

No-load Speed

(rpm)

Rated Speed

(rpm)

No-load Current

(mA)

Rated Current

(mA)

Stall Current

(mA)

Rated Volt

(V)

No-load Speed

(rpm)
TJW46FZY370-40i 40 0.08 0.24 175.00 140.00 100 280 840 12 7000
TJW46FZY370-40i 40 0.07 0.21 200.00 160.00 100 280 840 12 8000
TJW46FZY370-69i 69 0.05 0.15 68.12 54.49 100 280 840 3 4700
TJW46FZY370-69i 69 0.04 0.13 94.20 75.36 30 84 252 12 6500
TJW46FZY370-100i 100 0.14 0.41 83.00 66.40 40 112 336 24 8300
TJW46FZY370-100i 100 0.17 0.52 65.00 52.00 40 112 336 24 6500
TJW46FZY370-180i 180 0.15 0.45 47.22 37.78 100 280 840 6 8500
TJW46FZY370-180i 180 0.19 0.58 36.11 28.89 50 140 420 12 6500
TJW46FZY370-180i 180 0.22 0.65 38.89 31.11 60 168 504 12 7000
TJW46FZY370-180i 180 0.18 0.55 46.11 36.89 60 168 504 12 8300
TJW46FZY370-255i 255 0.26 0.78 32.55 26.04 60 168 504 12 8300
TJW46FZY370-255i 255 0.26 0.78 43.14 34.51 80 224 672 12 11000
TJW46FZY370-330i 330 0.25 0.74 14.24 11.39 100 280 840 3 4700
TJW46FZY370-330i 330 0.30 0.89 23.64 18.91 120 336 1008 5 7800
TJW46FZY370-330i 330 0.33 1.00 12.58 10.06 30 84 252 12 4150
TJW46FZY370-950i 950 0.96 2.89 8.74 6.99 60 168 504 12 8300
TJW46FZY370-950i 950 1.07 3.20 10.53 8.42 80 224 672 12 10000
TJW46FZY370-950i 950 1.29 3.86 8.74 6.99 40 112 336 24 8300
TJW46FZY370-1170i 1170 1.26 3.79 5.56 4.44 50 140 420 12 6500
TJW46FZY370-1450i 1450 1.96 5.89 2.86 2.29 40 112 336 12 4150
TJW46FZY370-1650i 1650 2.14 6.41 3.94 3.15 30 84 252 24 6500
TJW46FZY370-1650i 1650 2.79 8.37 5.03 4.02 50 140 420 24 8300
TJW46FZY370-5300i 5300 4.43 13.29 0.66 0.53 50 140 420 5 3500
TJW46FZY370-5300i 5300 6.38 19.13 0.66 0.53 30 84 252 12 3500

Please let us know your requirements and we will provide you with transmission solutions.

20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor

20Rpm DC Worm Gear Motor 6V 12V DC Right Angle Gear Motor
